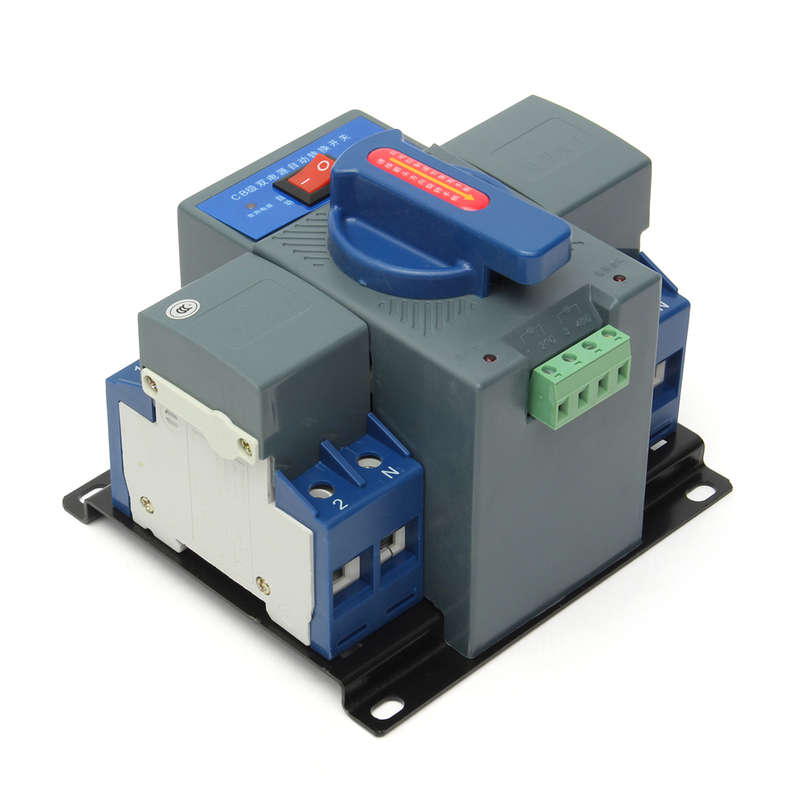

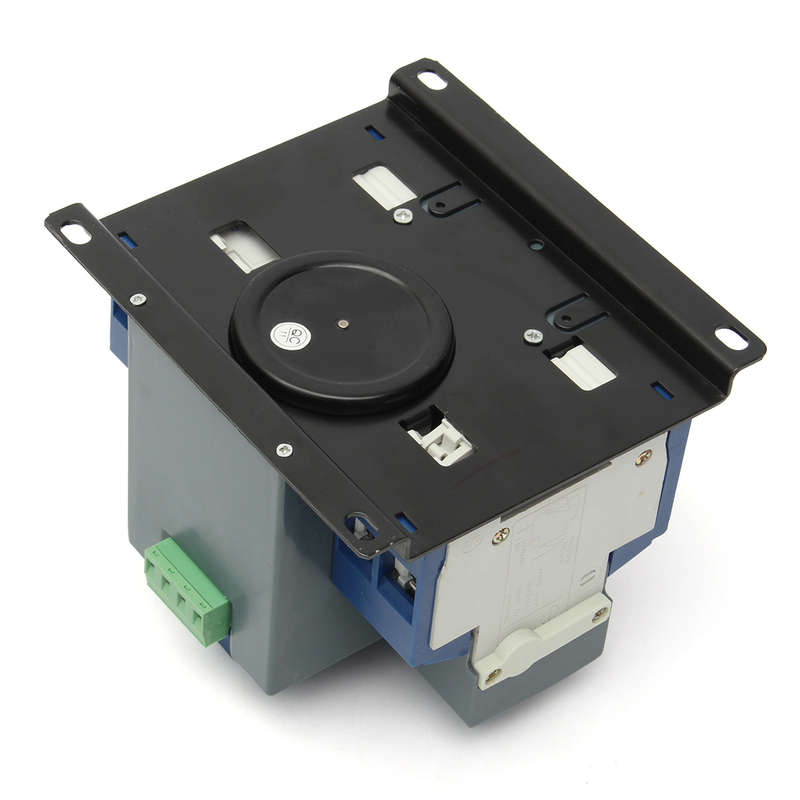

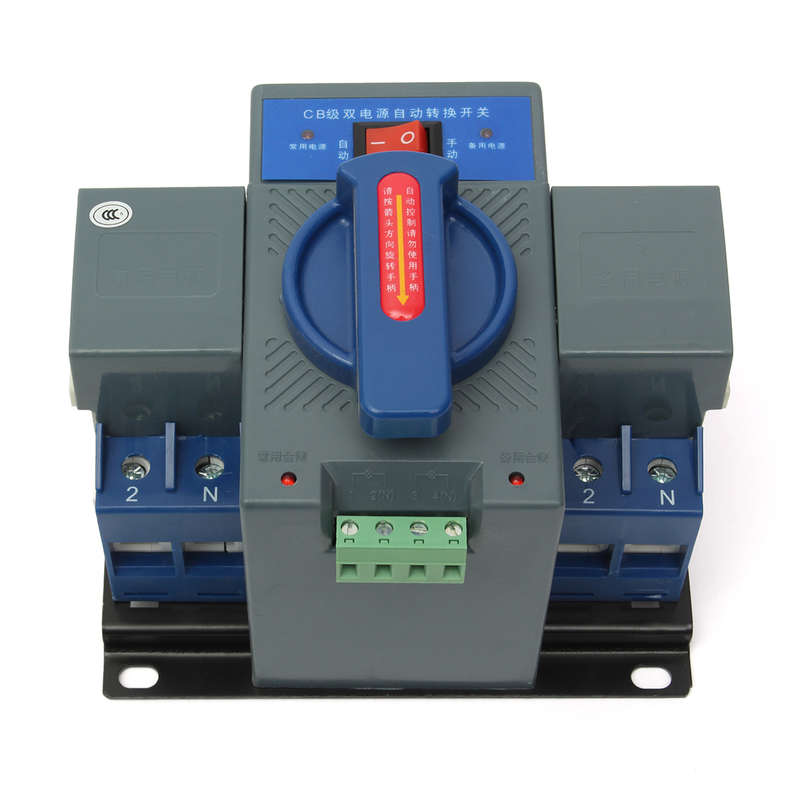

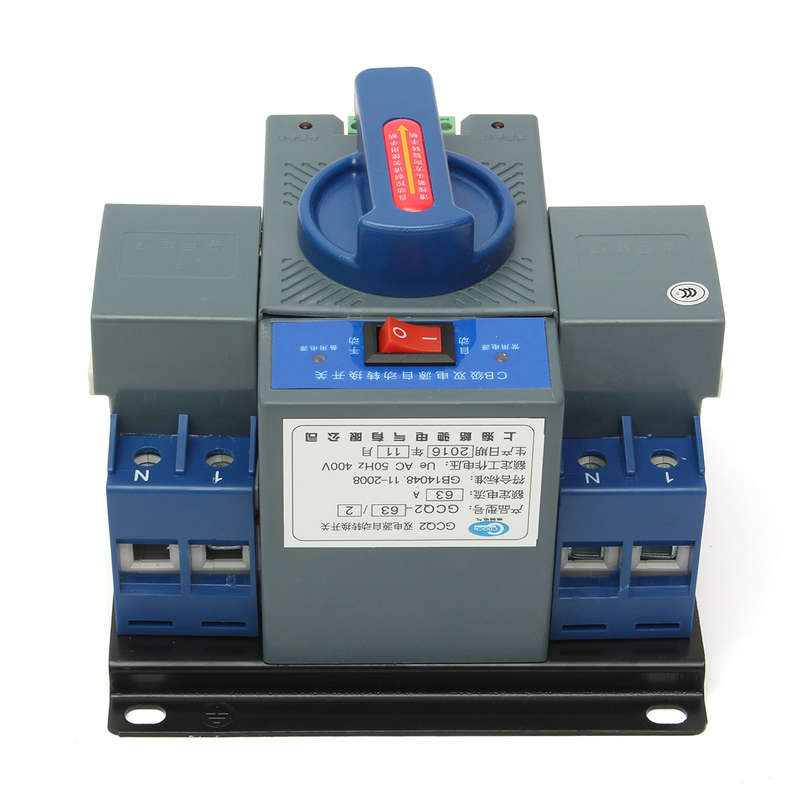

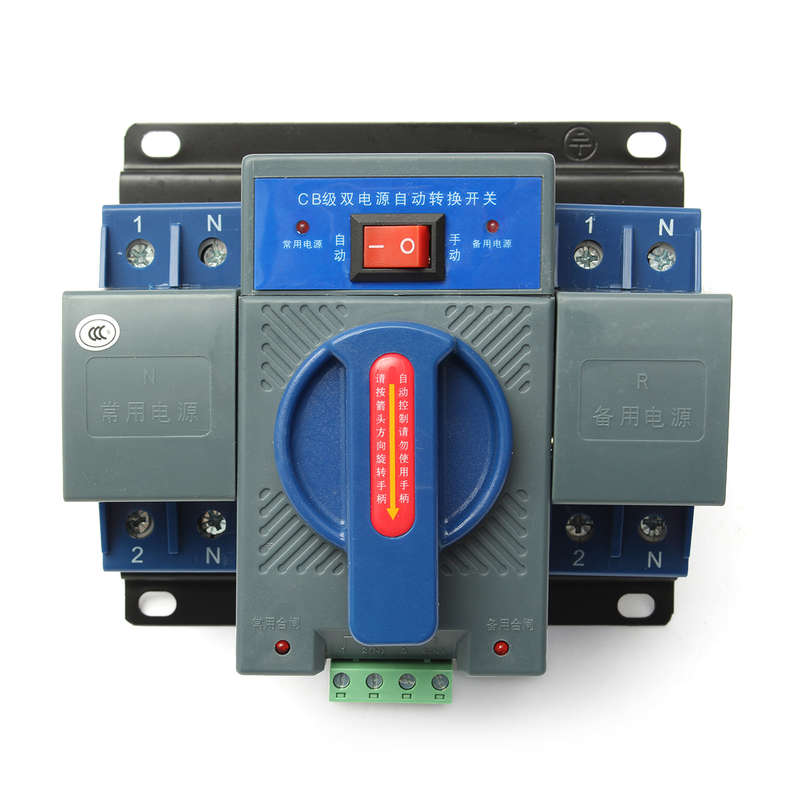

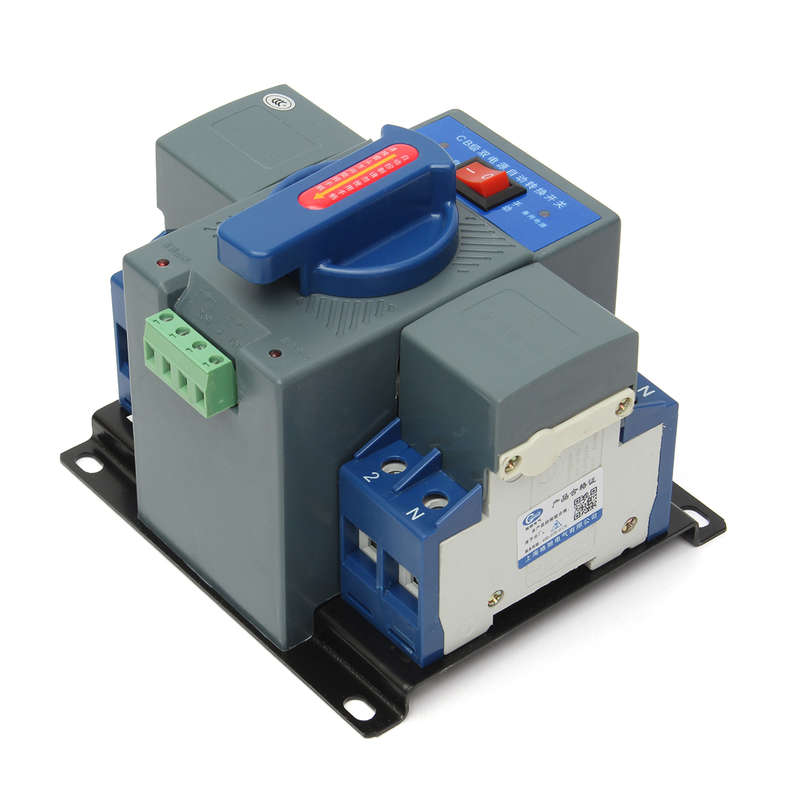

2P 63A 230V Micro Circuit Breaker MCB Type Dual Power Automatic Transfer Switch
New
Indicative market price: R1,128.30
R835.78
26% OFF
Closed
10 Jul 18 05:15
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 3 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
International
Product code
1192811[ALL]
Bob Shop ID
349422891
Description:
Size:148*138*116(mm)
Rated: voltage 220V 50/60HZ
Noted: power will be interrupted when Switching.
Switch time<4S
Max current: 63A.
Features:
1. Dual power Automatic transfer switch can switch to Normal power or reserve power automatically.
Please noted that the switch can't turn on or turn off the generator.
This switch Normal power first. If normal power on, the switch will switch to Normal power.
If normal power off, and reserve power on,the switch will switch to reserve power.
2.Wire:
Press the button to Automatic, the switch will switch to Normal power or reserve power automatically.
Press the button to Manual, Then you have to switch the Direction manually.
3.Application:
-TOQ3D is terminal type automatic transfer device.
-It's suitable for 3 phases 4 wires (or 1 phase 1 wire) dual power grid with AC 50/60Hz,rated voltage 400V/230V and rated current up to 63A.
-When one power goes wrong (only test normal Phase A voltage and reserve Phase A voltage,only test loss voltage or loss phase),it will automatic connect one or
several load circuits from one power to the other power automatically,to ensure normal power supply of load circuits.
-The automatic transfer switch conforms to IEC60947-6-1 and GB/T14048.11
4.Normal conditions for operation and installation:
Environmental Temperature Condition:-5~+40°C
Installation site is not more than 2000 meters above sea level.
Pollution Level: Grade 3
Installation Category: 3
Vertical installation or horizontal installation
5. Main parameter:
Electrical Appliances Class: CB
Use Category :AC~33B
Tripping Current : 5~10In (Type C), 10~15In (Type D),
Rated voltage Ue: 220V (2P),380V (3P or 4P)
Rated frequency: 50/60Hz
Package Included:
1x Circuit Breakers(with box)
