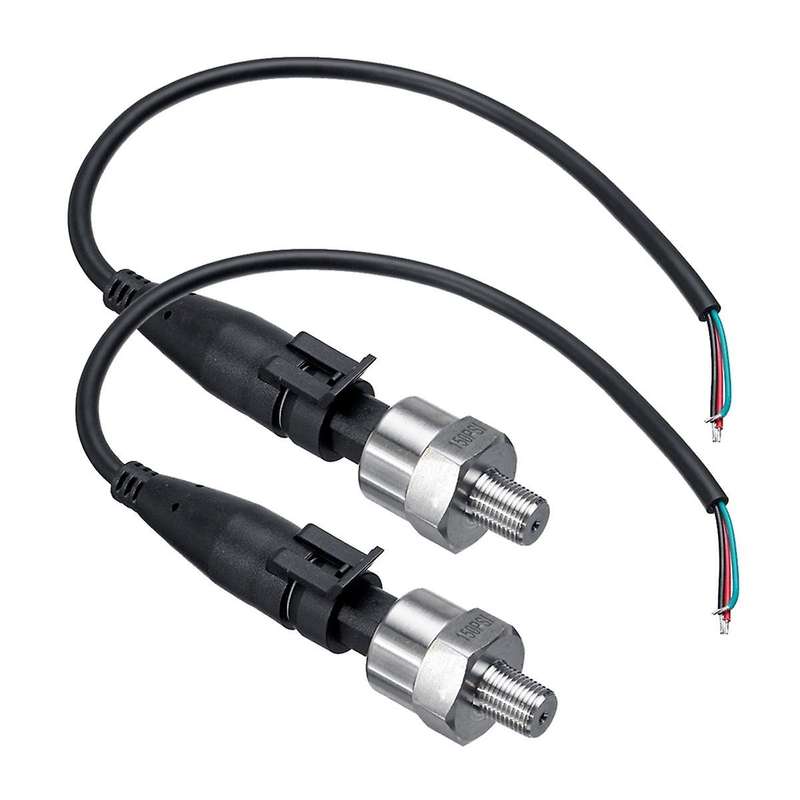

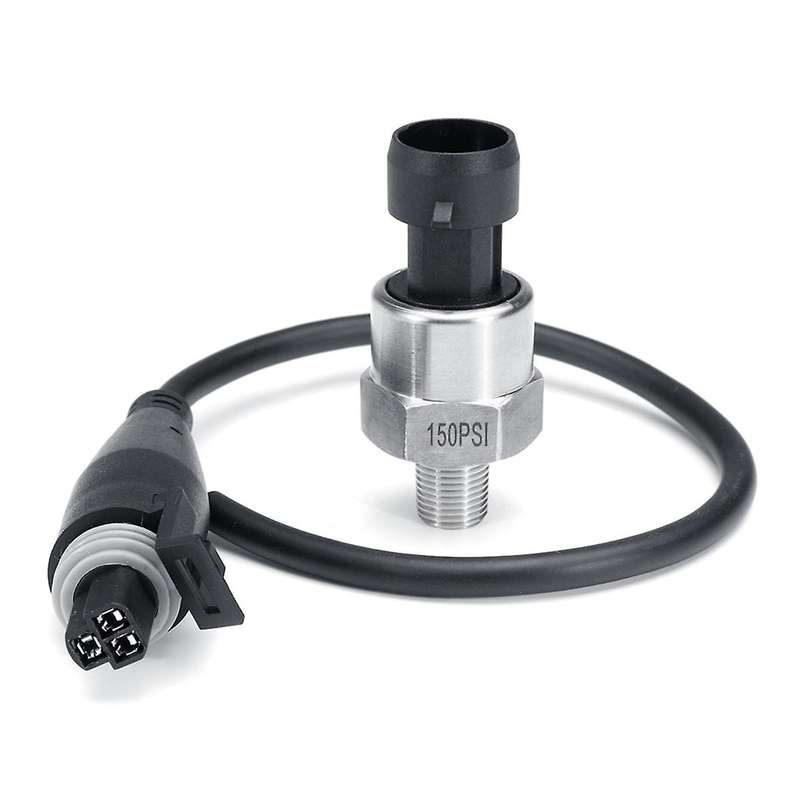

2Pc 150Psi DC5V 1/8NPT Pressure Transducer Transmitter Sensor Stainless Steel Oil Air Water Fuel Tra

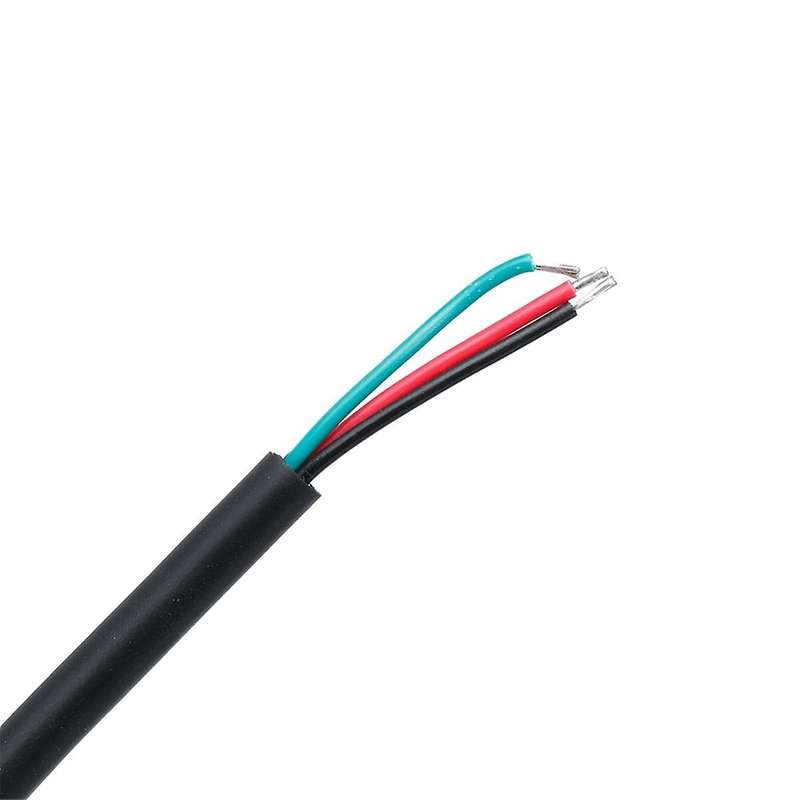

for oil, fuel, , gas, air pressure(Cannot use measuring water pressure), Can be used in oil tank, gas tank, tank etc.It's an advance pressure transducer than traditional mechanical pressure transducer.2% small output error, including nonlinear, hysteresis error and repeatability, full temperature range.It has complete surge voltage protection function.Light weight and small size, convenient to install and operate.Product Name:Oil Fuel PressureTransducerVoltage:DC 5VPressure:150psiInput:0-150 psiOutput:0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 75 psi outputs 2.5V, 150 psi outputs 4.5VAccuracy:+\/-0.5%Thread:1\/8inch NPTWiring:Red for +5V; Black for ground; Green for signal outputOverload Capacity:2-4 times of rated pressureWorking Temperature:-40 - +120Compensation Temperature:0 - +80Protection Class:IP67Pressure Medium:Oil, gas which is compatible with 304 stainless steelLoad Resistance:less than equal (supply power-6.5V\/0.02A)ohmLong-term Stability:Less than 0.1%\/yearTemperature Effect on Zero:Typical:0.02%\/; Maximum:0.05%\/Temperature Effect on Sensitivity:Typical:0.02%\/; Maximum:0.05%\/Shock Resistance:1000gAnti-Shock:less than equal +\/-0.01%(X,Y,Z axes, 200Hz\/g)Response Time:less than equal 1msInsulation Resistance: 100mohm 500VDCExplosion-proof Class:ExiaTTCT6Electromagnetism Compatibility:EN50051-1Note:Due to different production batches, there may be slight differences in products, which does not affect use.Colour:As ShownMaterial:MetalPackage Contents:2 x Pressure Transducer (With Cable)Only the above package content, other products are not included.Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +\/- 1-3cm.
