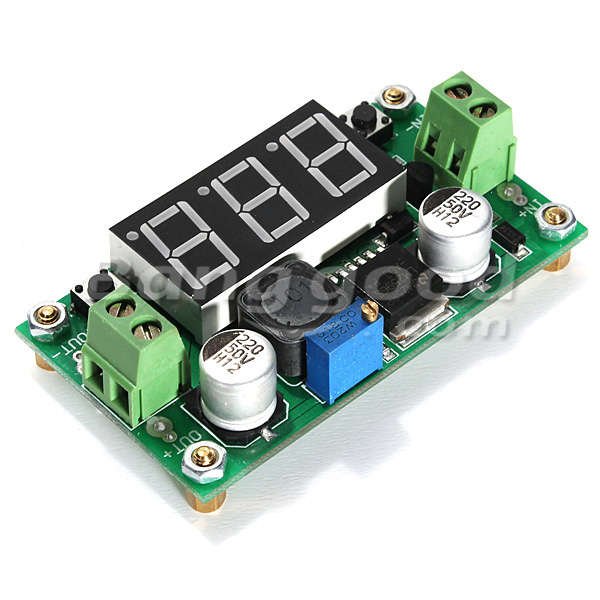

2Pcs 4V-40V DC-DC Step Down LM2596 Voltage Regulator Converter Module

2Pcs 4V-40V DC-DC Step Down LM2596 Voltage Regulator Converter Module

Description:

Static power: 20 ma (and input voltage output voltage and digital tube color is closely related to the actual current will exist deviation)
With voltage display function, the displayed accuracy is ± 0.05V, range is 0 - 40V.
( Note: in order to voltage display more accurate, please ensure that the input voltage is higher than 4V)
Button to switch measurement of the input or output voltage, and LED indicates the current measurement of the input or output voltage;The nixie tube can be turned off by another button.Mentioned in these states are able to be memorized, is not lost even if the power is disconnected.
Continuously adjustable output voltage range of 1.25V -37V, 4-40V input voltage range. (The input voltage is at least high than the output voltage of 1.5V)
High efficiency,150 kHz fixed frequency internal oscillator.
Guaranteed 3A output load current.
Thermal shutdown and current limit protection

Specification:

Parts Input voltage range: 4-40 v (40 v to limit the highest voltage)
Output voltage range:1.25V - 37V (decompression mode, input output must be greater than 2 V above)
Output current: 2 A continuous output
Output power: the maximum 15 w
Ripple frequency: 150 KHZ
Grain wave peak: 100 mv
IN + : input positive/IN - : input negative
OUT + : output positive/OUT - : output negative
Voltmeter precision: ± 5 aﾣ
Weight: 33g
Size: 7cm x 4cm

Package included:

2 X LM2596 voltage regulator converter module
