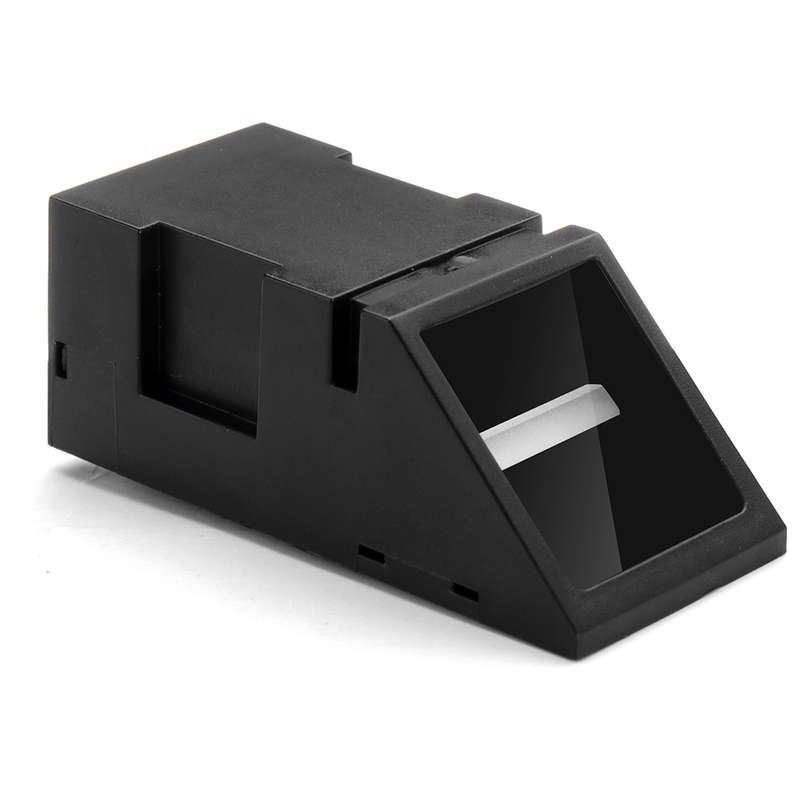

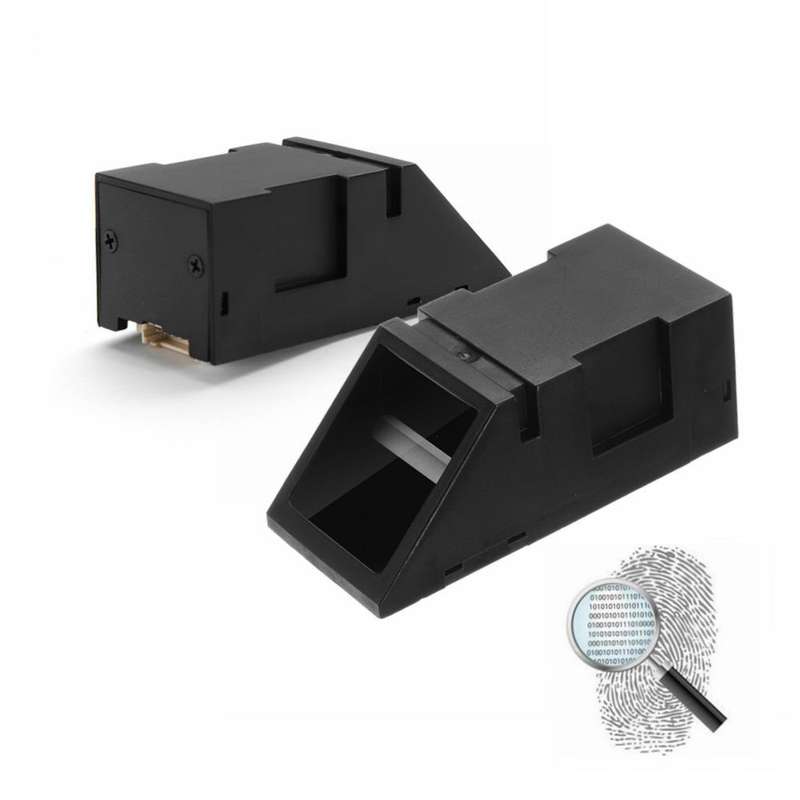

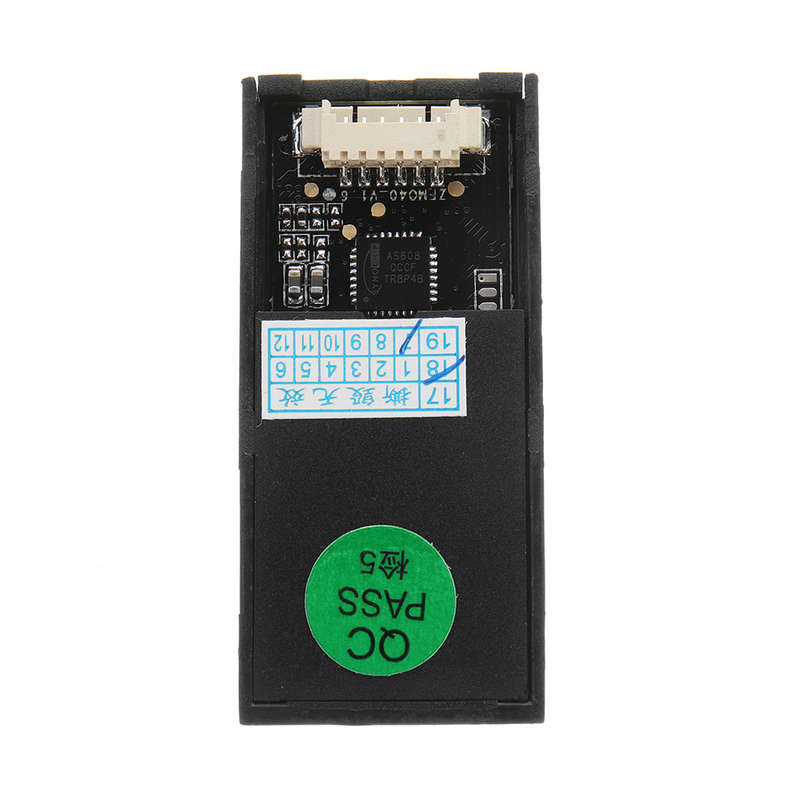

The product consists of optical fingerprint sensor, high-speed DSP processor, high-performance fingerprint comparison algorithm, large-capacity FLASH chip and other hardware and software. The fingerprint module has stable performance, perfect functions, and has multiple functions such as fingerprint collection, fingerprint registration, fingerprint comparison, and fingerprint search. Usage is very simple: as long as the serial port of the microcontroller, embedded can operate this module, MSP430, 51, AVR, PIC, STM32, ARM, FPGA, controller can operate this module. This module is controlled by the serial port, you can also use the serial port of the computer to control this module.
Application areas: The fingerprint module is widely used and is suitable for all fingerprint recognition systems from high end to low end. such as: a Fingerprint door locks, safes, gun boxes, finance and other security areas; a identity system such as access control system, industrial computer, POS machine, driving training, attendance and so on; aManagement areas such as private clubs, management software, and licensing; a Financial insurance, medical care, pension payment, and other financial fields.

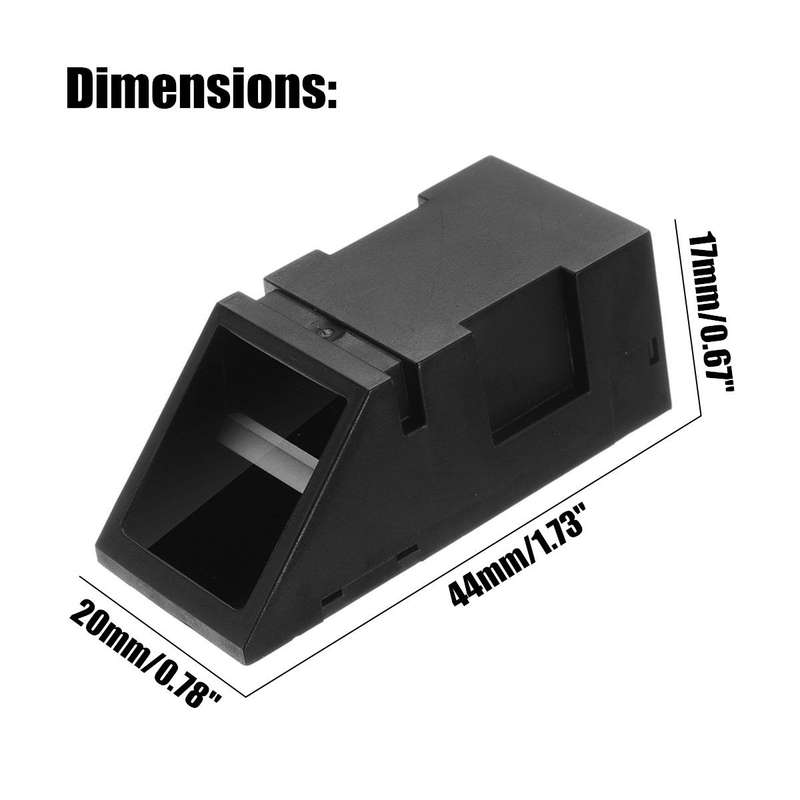

Specifications: aPower supply voltage: DC 3.8 to 7.0V aBacklight color: red aLighting mode: long light / flashing aPower supply current: working current: <60mA Peak current: <85mA a Fingerprint image entry time: <0.5 seconds aWindow area: 1517mm a Matching method: comparison method (1:1) Search method (1:N) aFeature file: 384 bytes aTemplate file: 786 bytes a Storage capacity: 240 pieces a Security level: 3 (low to high: 1, 2, 3, 4, 5) aFake rate (FAR): <0.001% (when the security level is 3) aRejection rate (FRR): <1.0% (when security level is 3) aSearch time: <220 milliseconds (1:240 hours, mean) a Host computer interface: UART (TTL logic level) aCommunication baud rate (UART): (9600N)bps where N=1-12 (default value N=6, ie 57600bps) aWorking environment: Temperature: -30 ﾣ C to +70 ﾣ C Relative humidity: 40% RH to 85% RH (no condensation) a Storage environment: Temperature: -40 ﾣ C to +85 ﾣ C Relative humidity: <85% H (no condensation) aDimensions (LWH): 442017mm

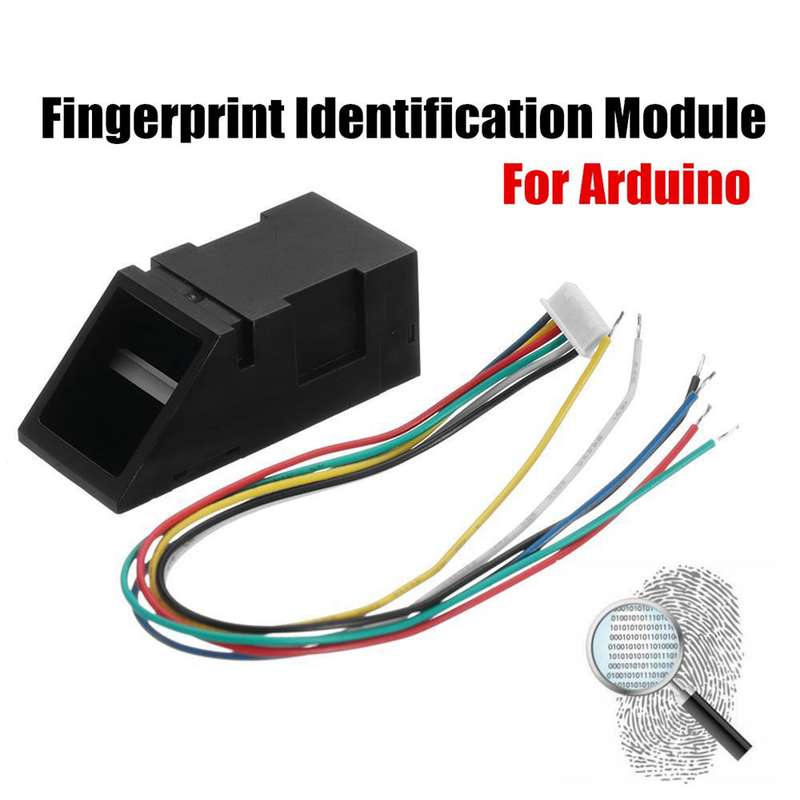

Package Included: 2 x Fingerprint Identification Module
