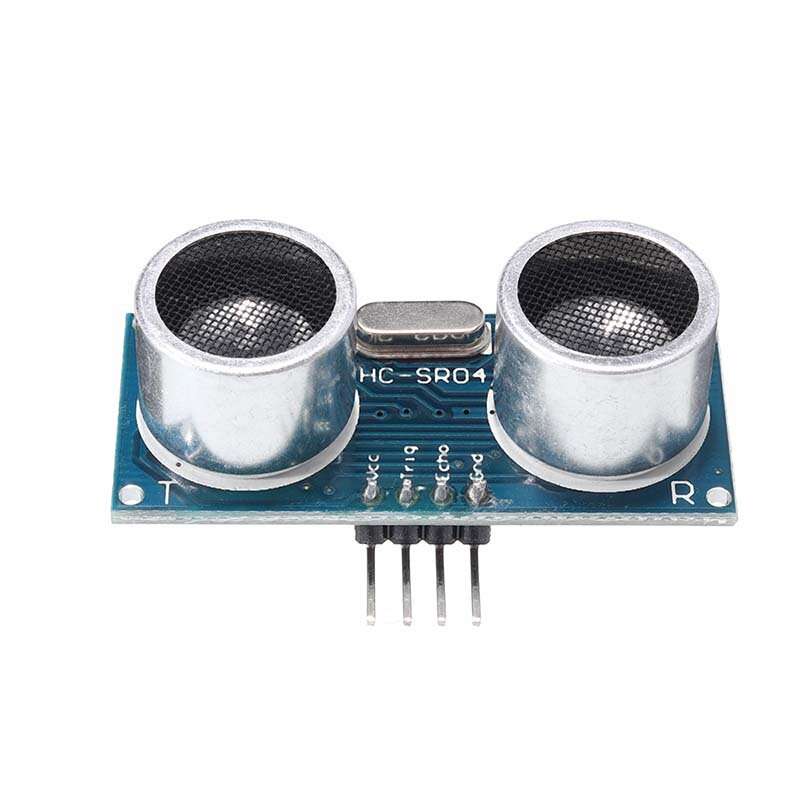

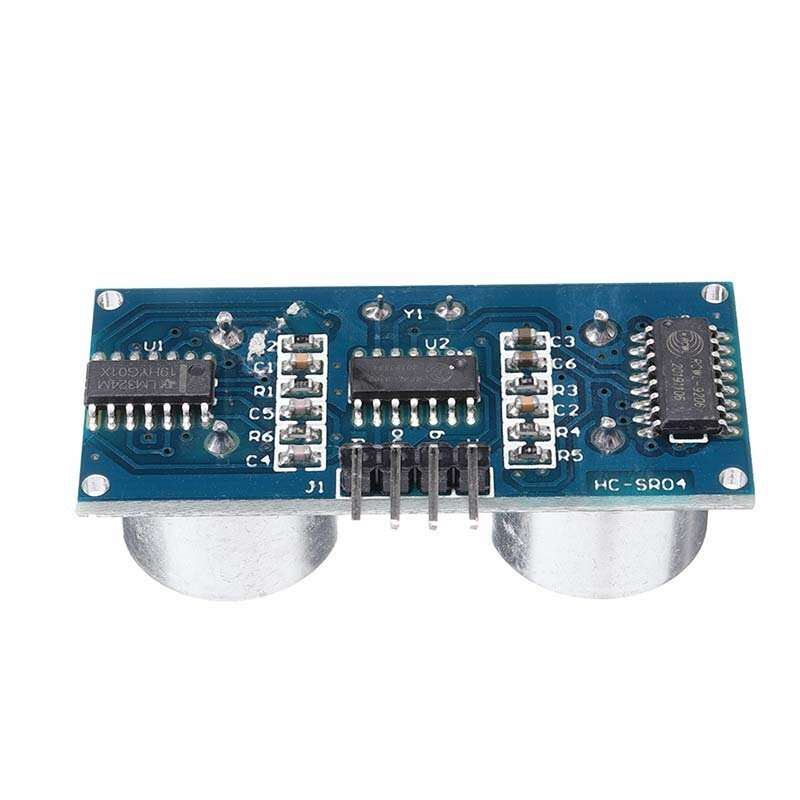

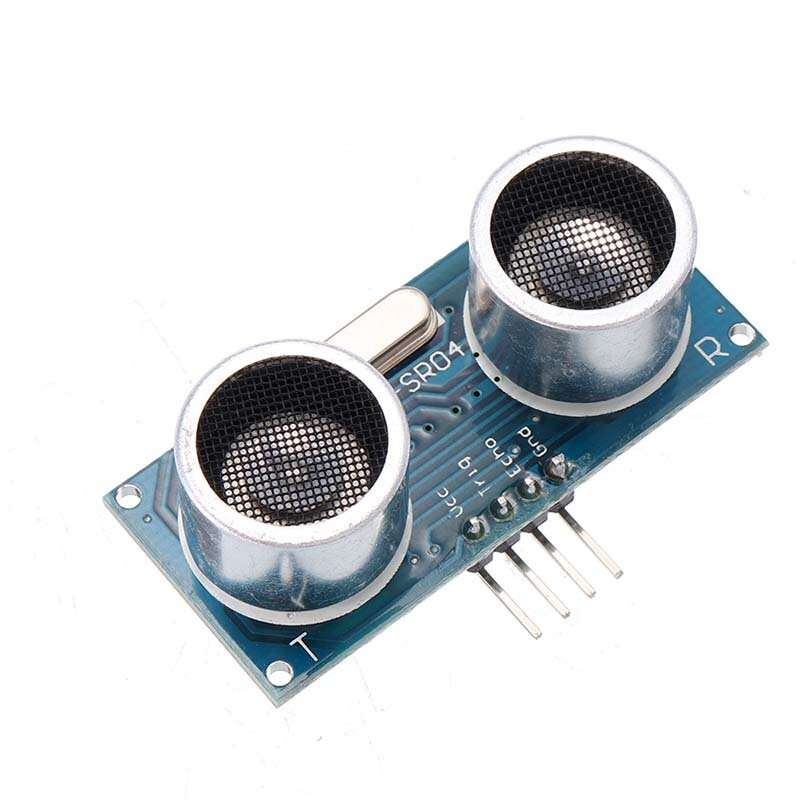

2Pcs Geekcreit Ultrasonic Module HC-SR04 Distance Measuring Ranging Transducers Sensor DC 5V 2-450cm 2Pcs Geekcreit Ultrasonic Module HC-SR04 Distance Measuring Ranging Transducers Sensor DC 5V 2-450cm 2Pcs Geekcreit Ultrasonic Module HC-SR04 Distance Measuring Ranging Transducers Sensor DC 5V 2-450cm
2Pcs Geekcreit Ultrasonic Module HC-SR04 Distance Measuring Ranging Transducers Sensor DC 5V 2-450cm 2Pcs Geekcreit Ultrasonic Module HC-SR04 Distance Measuring Ranging Transducers Sensor DC 5V 2-450cm 2Pcs Geekcreit Ultrasonic Module HC-SR04 Distance Measuring Ranging Transducers Sensor DC 5V 2-450cm

2Pcs Geekcreit Ultrasonic Module HC-SR04 Distance Measuring Ranging Transducers Sensor DC 5V 2-450cm

New 1 available
Indicative market price: R606.35
Only 1 left – grab it before it’s gone!
R360.41
41% off
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
There are various locker and counter collection points across South Africa.
View locations
The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
1734603
Bob Shop ID
647486035
Description:

Working Voltage : 5V(DC)
Static Current: Less than 2mA.
Output Signal: Electric frequency signal, high level 5V, low level 0V.
Sensor Angle: Not more than 15 degrees.
Detection Distance: 2cm-450cm.
High Precision: Up to 0.3cm
Input Trigger Signal: 10us TTL impulse
Signal : output TTL PWL signal
Mode of connection:
VCC
trig(T)
ech0(R)
GND

Use Method:

Supply module with 5V, the output will be 5V while obstacle in range, or 0V if not.The out pin of this module is used as a switching output when anti-theft module, and without the feet when ranging modules.
Note : the module should be inserted in the circuit before been power, which avoid producing high level of misoperation;if not, then power again.
