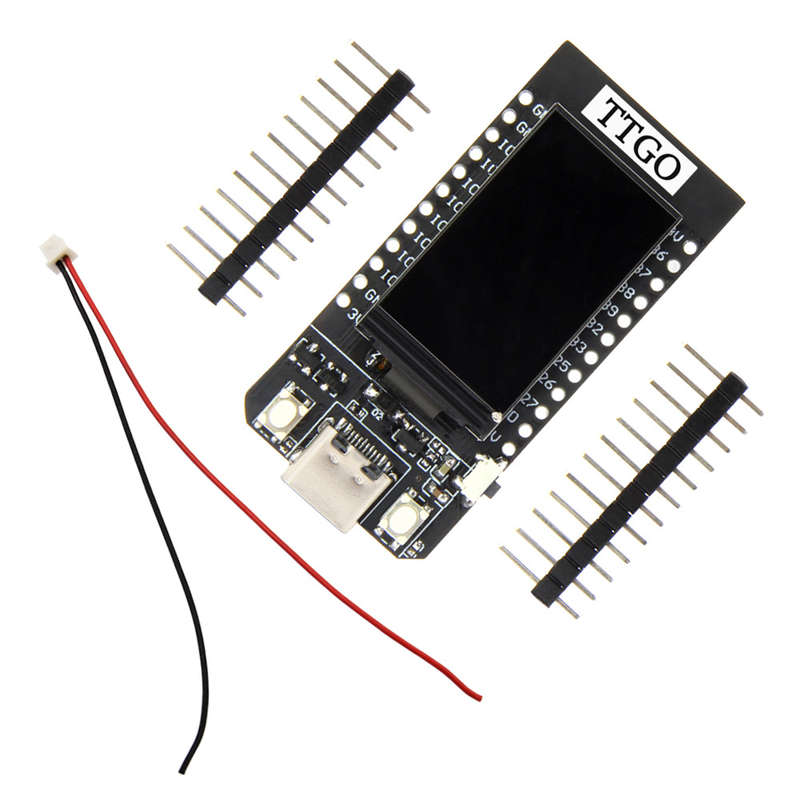

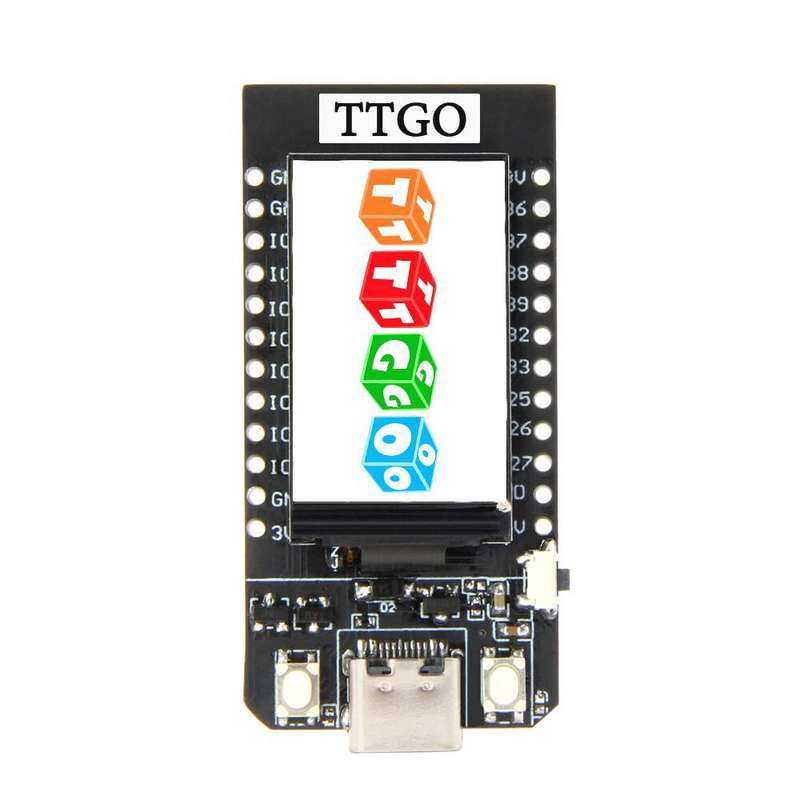

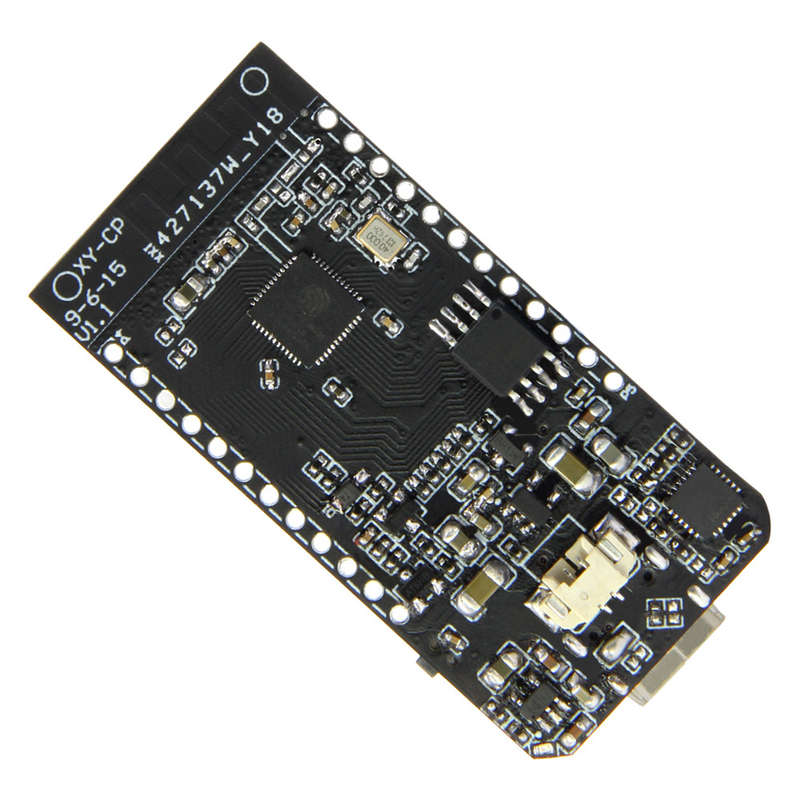

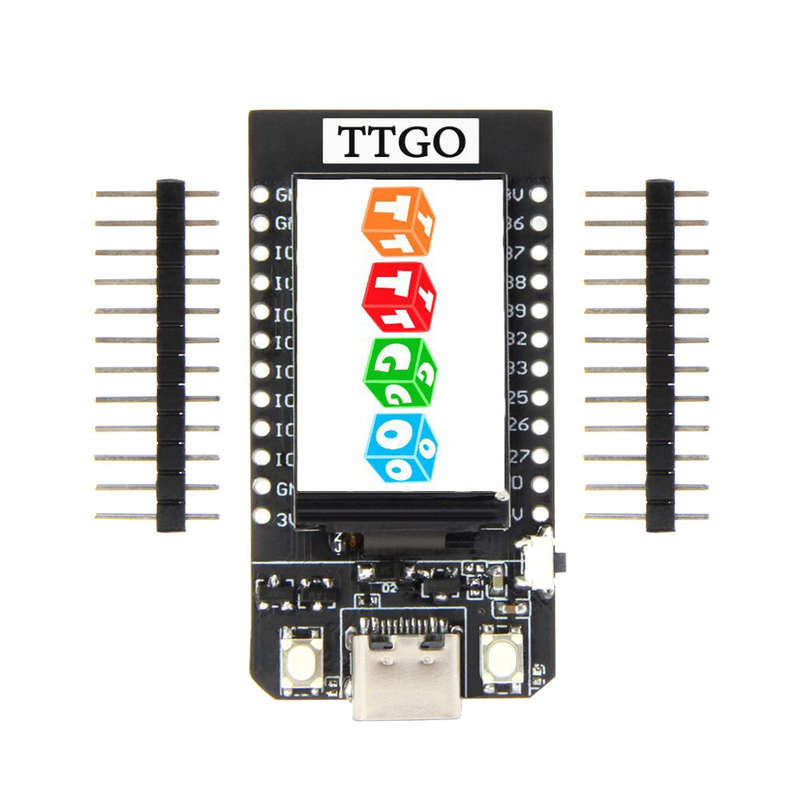

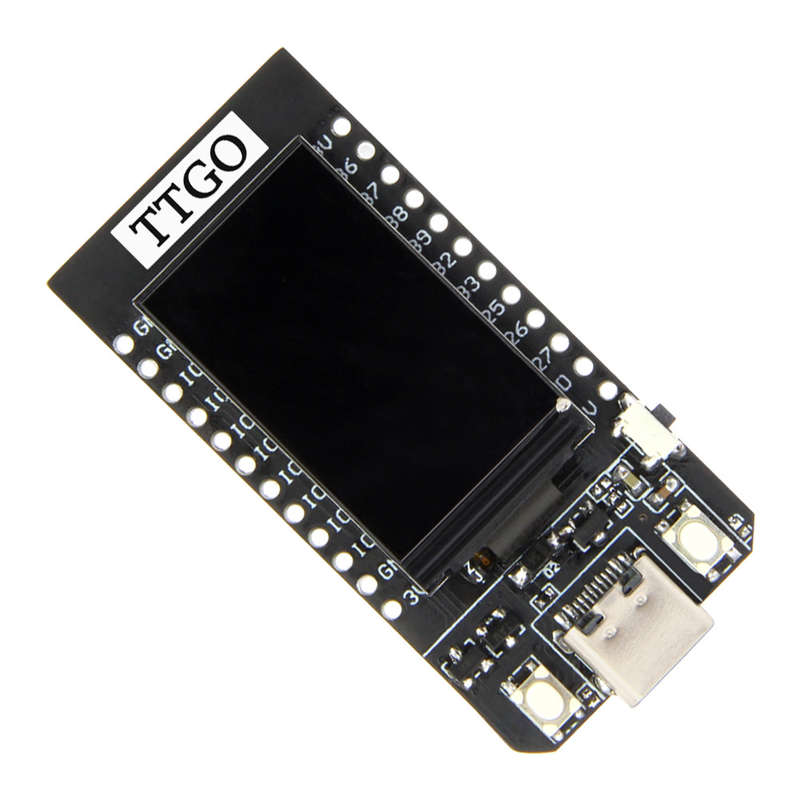

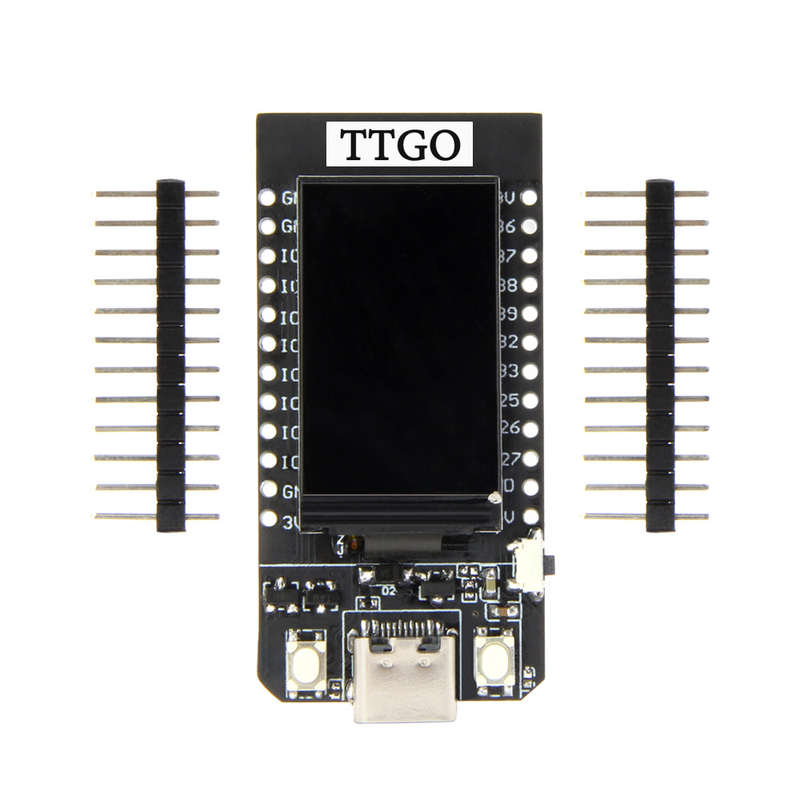

2pcs TTGO T-Display ESP32 CP2104 WiFi Bluetooth Module 1.14 Inch LCD Development Board LILYGO for Ar

20 available / new

R890.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3466

93.51 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

641106038

Feature:

Hardware Specifications	Description
Chipset	ESPRESSIF-ESP32 240MHz Xtensadual-core 32-bit LX6 microprocessor
FLASH	QSPI flash 4MB
SRAM	520 kB SRAM
Button	Reset
USB to TTL	CP2104
Interface	UART, SPI, SDIO, I2C, LEDPWM, TVPWM, I2S, IRGPIO,ADC,capacitortouch sensor, DACLNA pre-amplifier
Display	IPSST7789V 1.14 Inch
Working voltage	2.7V-4.2V
Working current	About 60MA
Sleep current	About120uA
Working temperature range	-40C~+85ﾣC
Size&Weight	51.52x 25.04x 8.54mm(7.81g)
Power Supply	Description
Power Supply	USB 5V/1A
Charging current	500mA
Battery	3.7V lithium battery
JST Connector	2Pin 1.25mm
USB	Type-C
Wi-Fi	Description
Standard	FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC
Protocol	802.11 b/g/n(802.11n,speed up to 150Mbps)A-MPDU and A-MSDU polymerization,support0.4usProtection interval
Frequency range	2.4GH2~2.5GHz(2400M-2483.5M)
Transmit Power	22dBm
Communication distance	300m
Bluetooth	Description
Protocol	Support bluetooth V4.2BR/EDR and BLE standard
Radio frequency	With -97dBm sensitivity NZIF receiver Class-1,Cl ass-2&Class-3 emitter AFH
Audio frequency	CVSD&SBC audio frequency
Software	Description
Wi-Fi Mode	Station/SoftAP/SoftAP+Station/P2P
Security mechanism	WPA/WPA2/WPA2-Enterprise/WPS
Encryption Type	AES/RSA/ECC/SHA
Firmware upgrade	UART download/OTA (Through network/hostto download and write firmware)
Software Development	Support cloud server development/SDK for user firmware development
Networking protocol	IPv4, IPv6, SSL, TCP/UDP/HTTP/FTP/MQTT
User Configuration	AT + Instruction set, cloud server, android/iOSapp
OS	FreeRTOS
