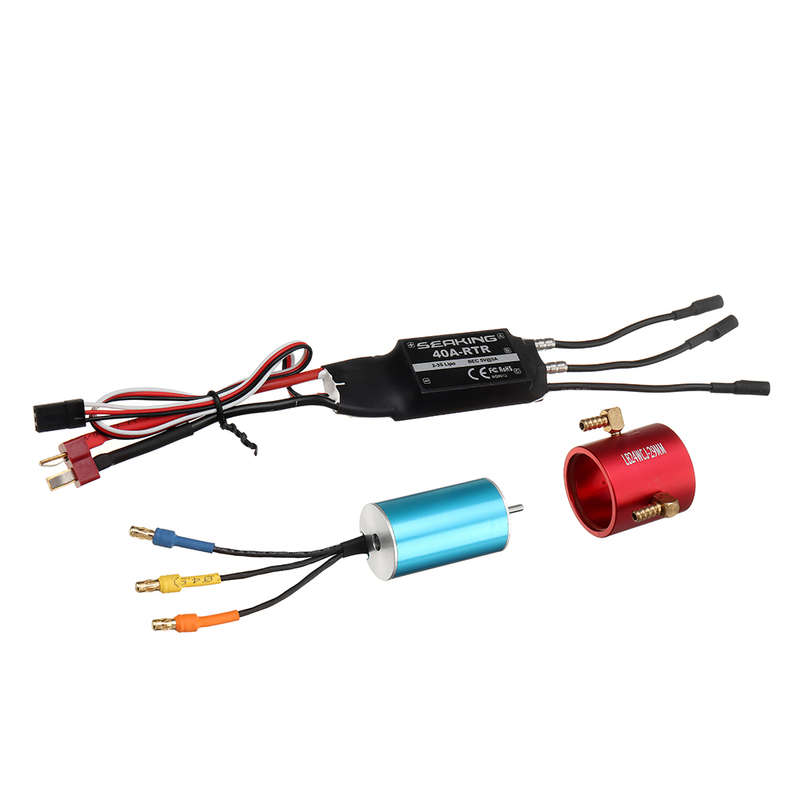

2S 3S 40A Brushless ESC 2440 Brushless Motor Water Set 4500KV 3800KV 3300KV For RC Ca... (NUMBER: 1)

SELECTED OPTION:
NUMBER: 1

Description:

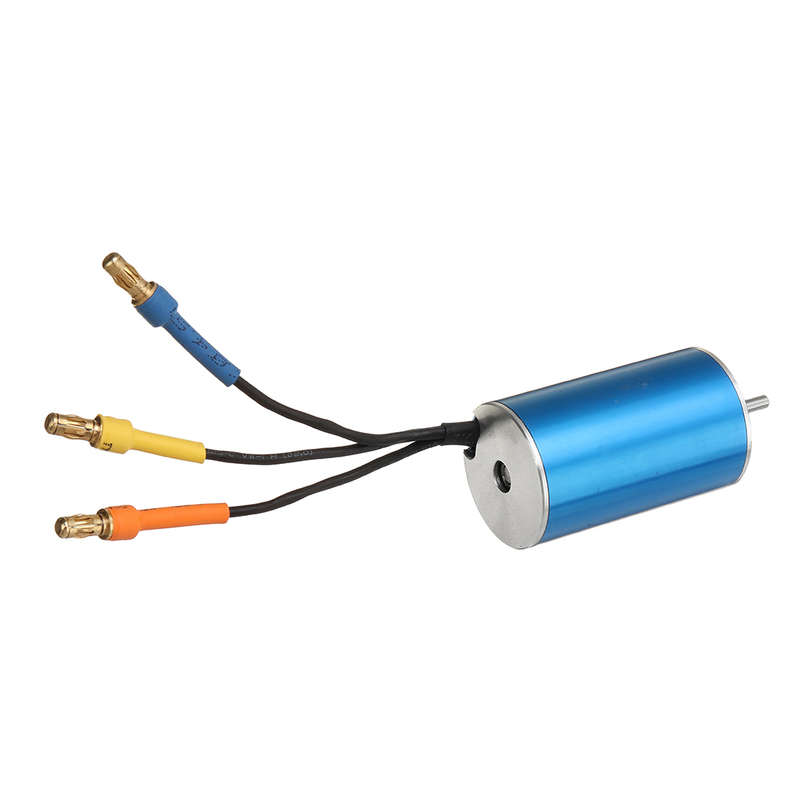

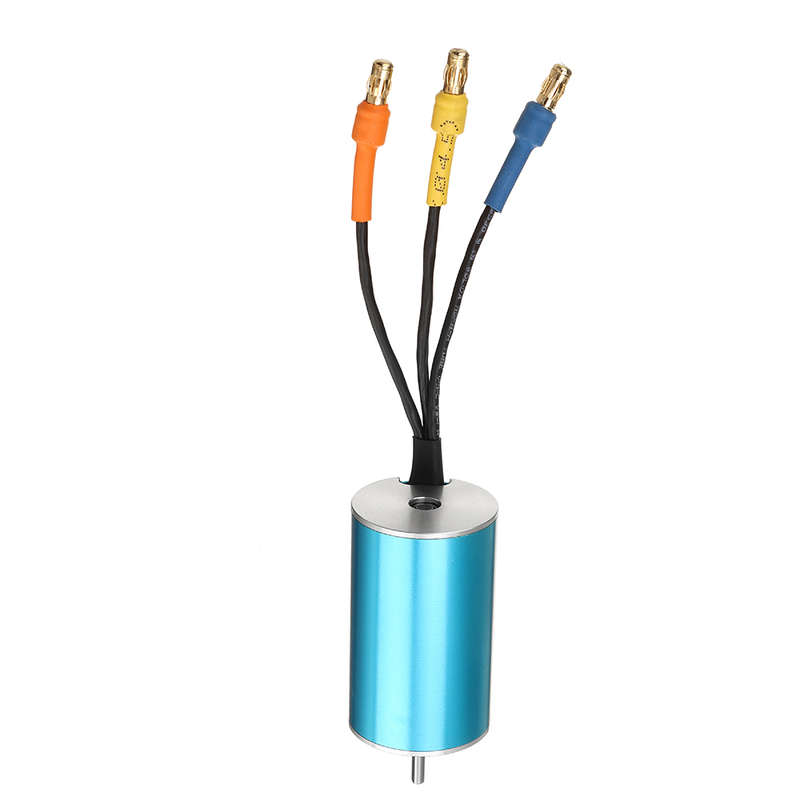

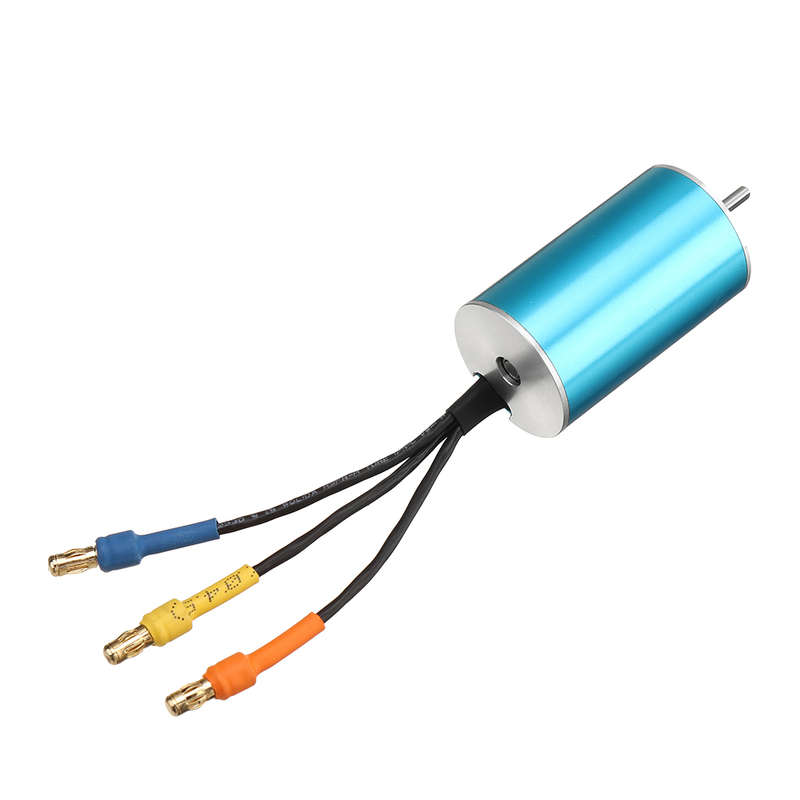

Motor:

Model: 2440 (the same size as the brushed 380 motor)

Motor kv value: 4600KV

Shaft diameter: 2.3mm (D-shaft)

Output shaft length: 12mm

Motor outer diameter: 24mm

Motor length: 40mm

Power: 300W

Voltage: 2S-3S lithium battery

Mounting hole distance: 16mm (hole center distance)

Inner diameter of mounting hole: 2.5m screw hole (with brush 380)

Use range:

2440 brushless motor 4 poles mounting holes are exactly the same as the 380 brushed motor (but not applicable to the radiator of the 380 motor).

Frames that use a 380 brushed motor can install this motor and ESC. Compared with a 2-pole motor of the same specification, it has lower heat generation and stronger torque. It has better low-speed linearity and saves electricity. The power is more than 80% higher.

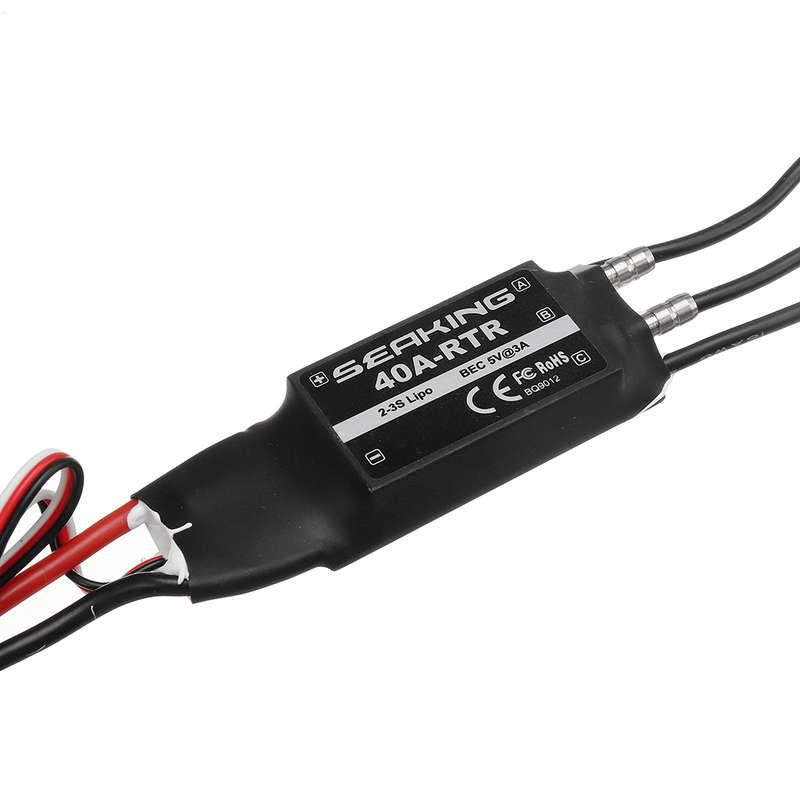

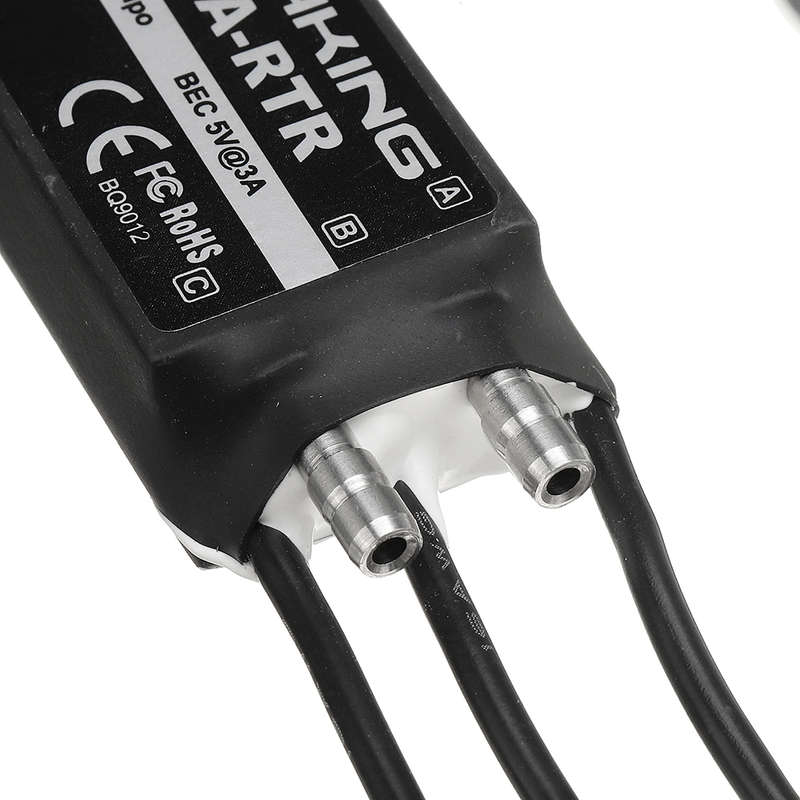

ESC

40A wins water-cooled ESC

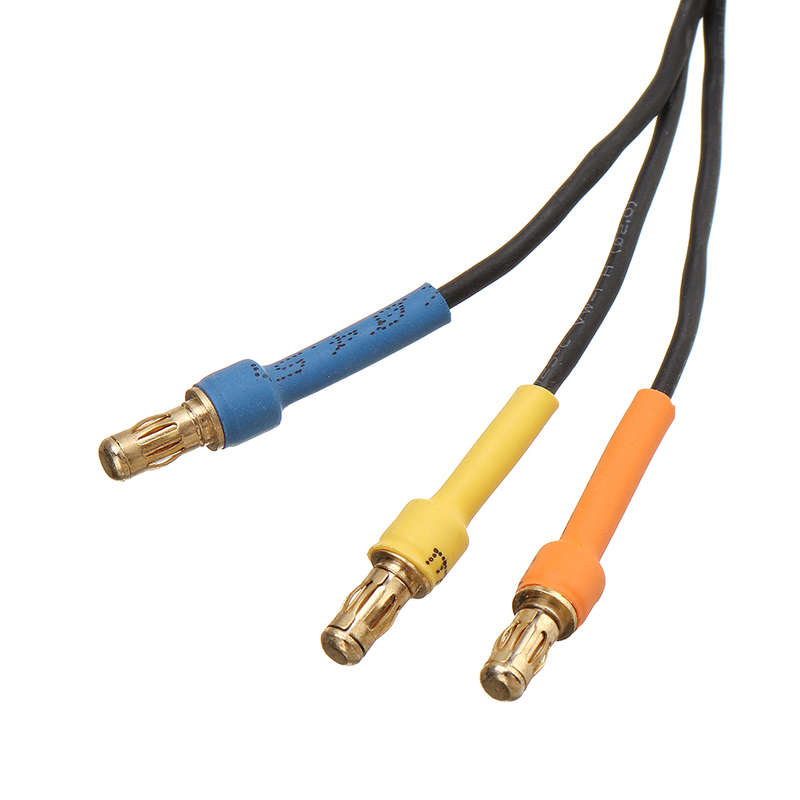

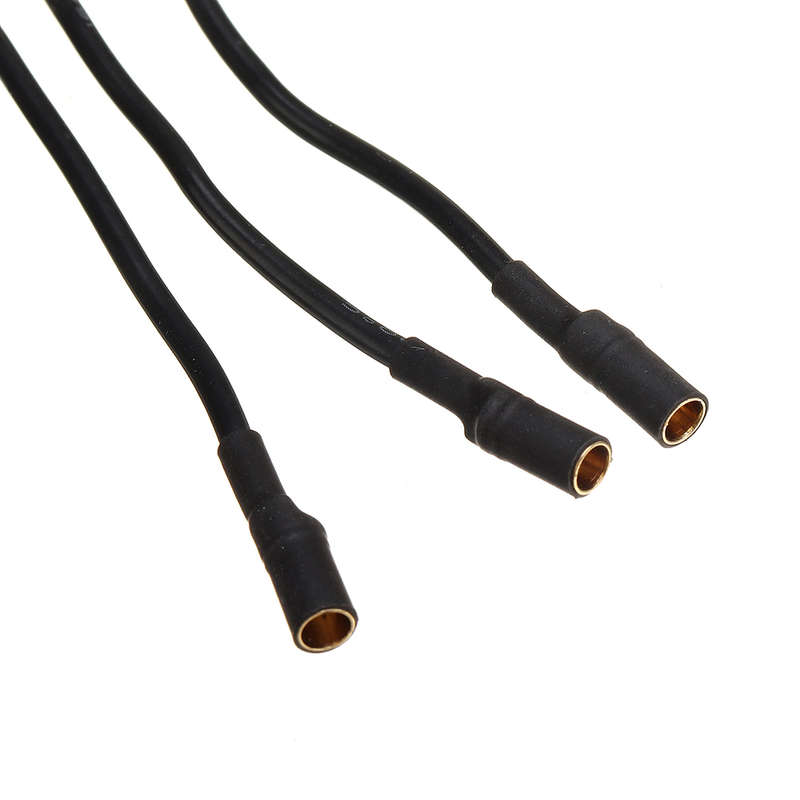

Banana plug at motor end: 3.5mm

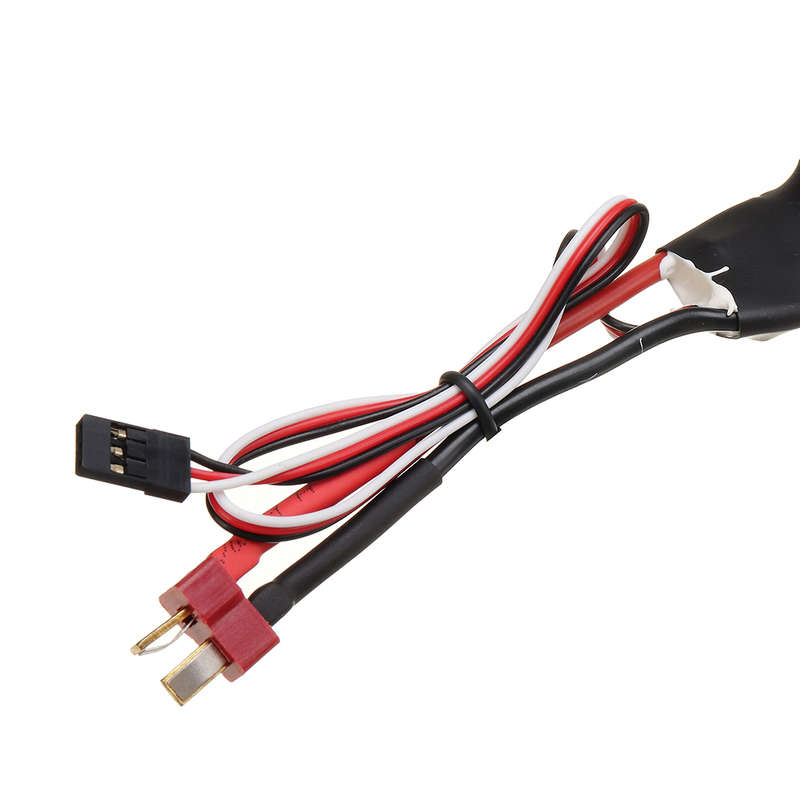

Battery end plug: T plug or XT60 plug

The plugs have been welded and made waterproof, buy them back and use them directly.

It can be used in the flywheel 012 009 to change the brushless ESC. Wind-driven rescue boat ESC. Hobbywing 40A-V2 marine ESC.

Support voltage: 2S-3S lithium battery

Volume: 74*25*14.5mm

Outer diameter of water cooling nozzle: 4mm

Use connecting water pipe size: 3x5mm

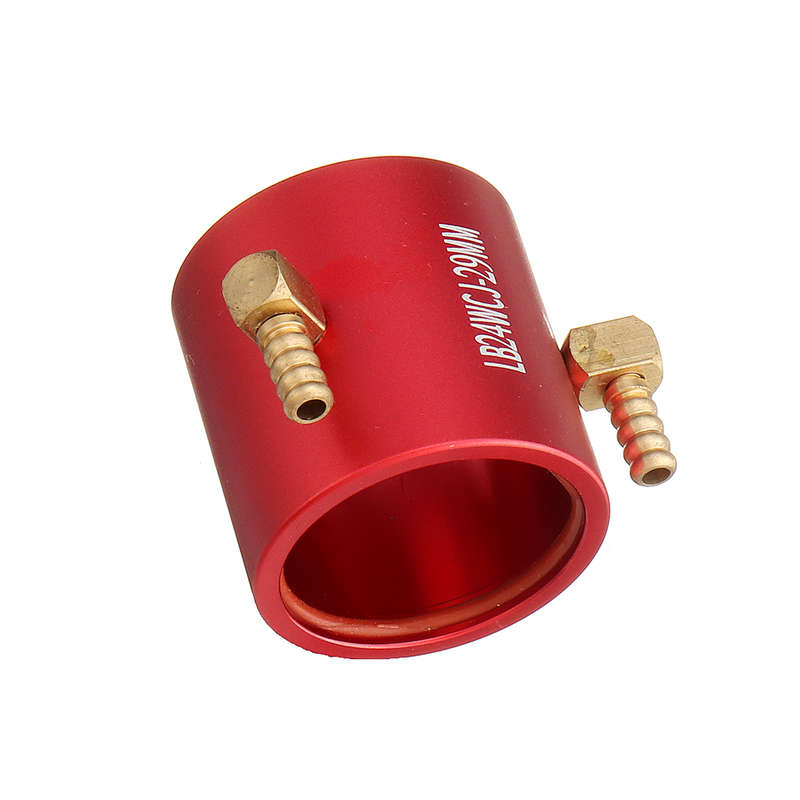

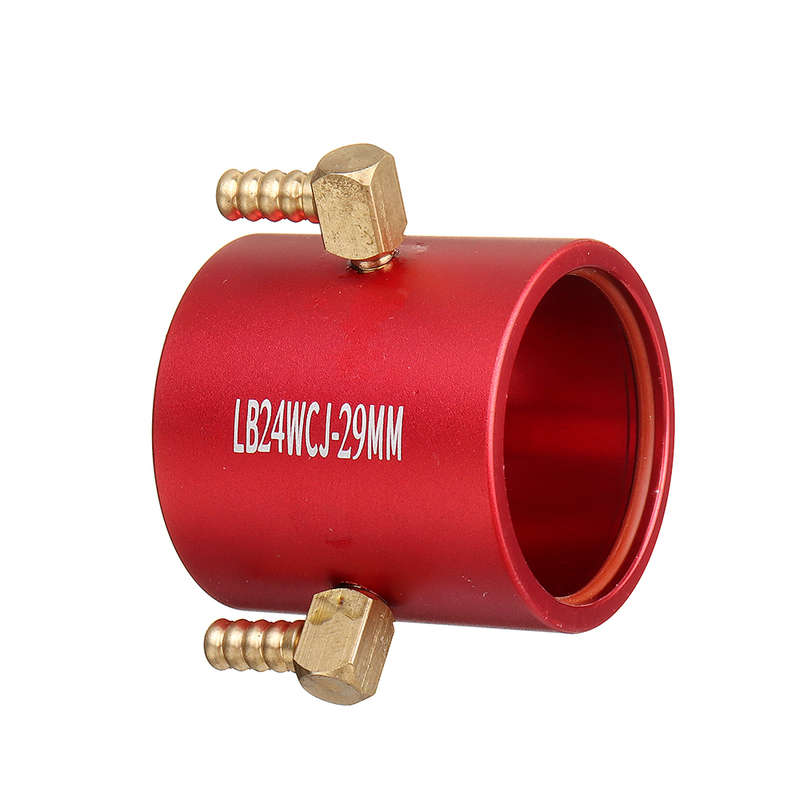

24mm water cooling jacket

1. Water cooling jacket inner diameter: 24mm, suitable for 24mm outer diameter brushless motors, such as 2435, 2440, 2445 brushless motors

2. Length of water cooling jacket: 29mm

3. Outer diameter of copper nozzle: 3.86mm

4. Outer diameter of water cooling jacket: 29mm

Package Included:

1X SET
