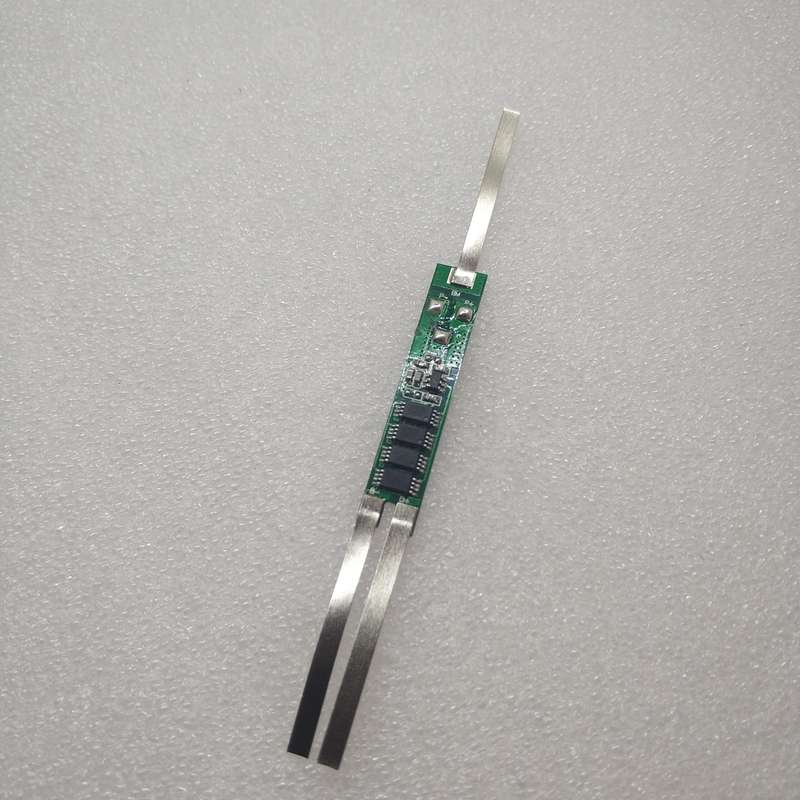

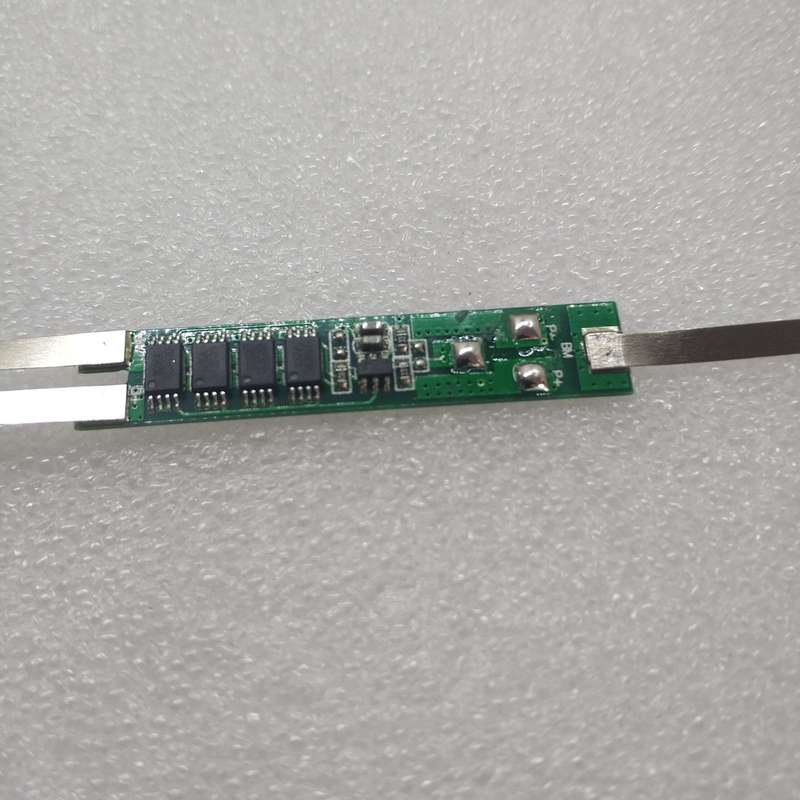

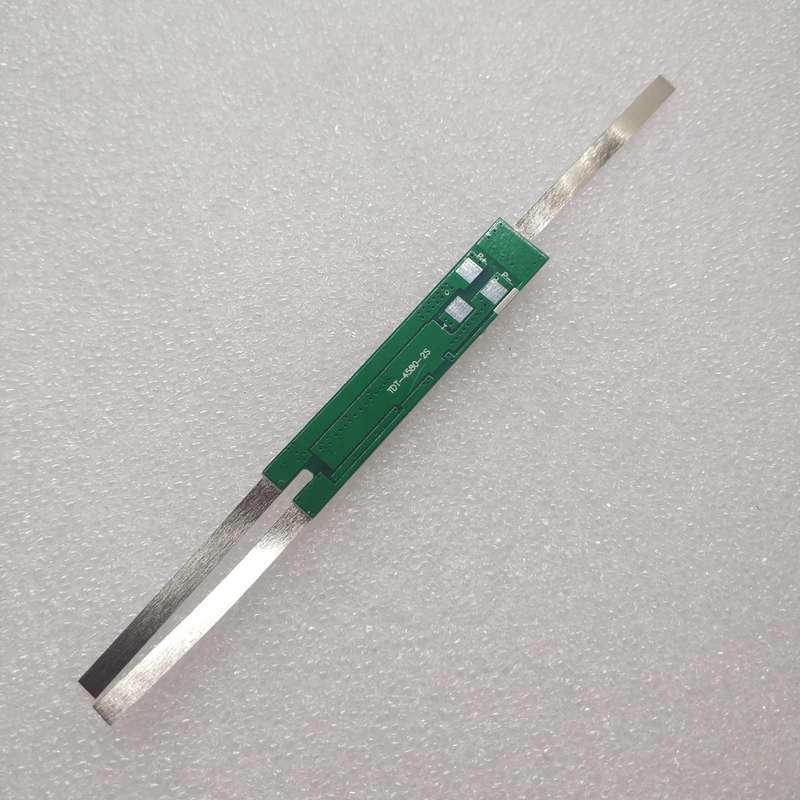

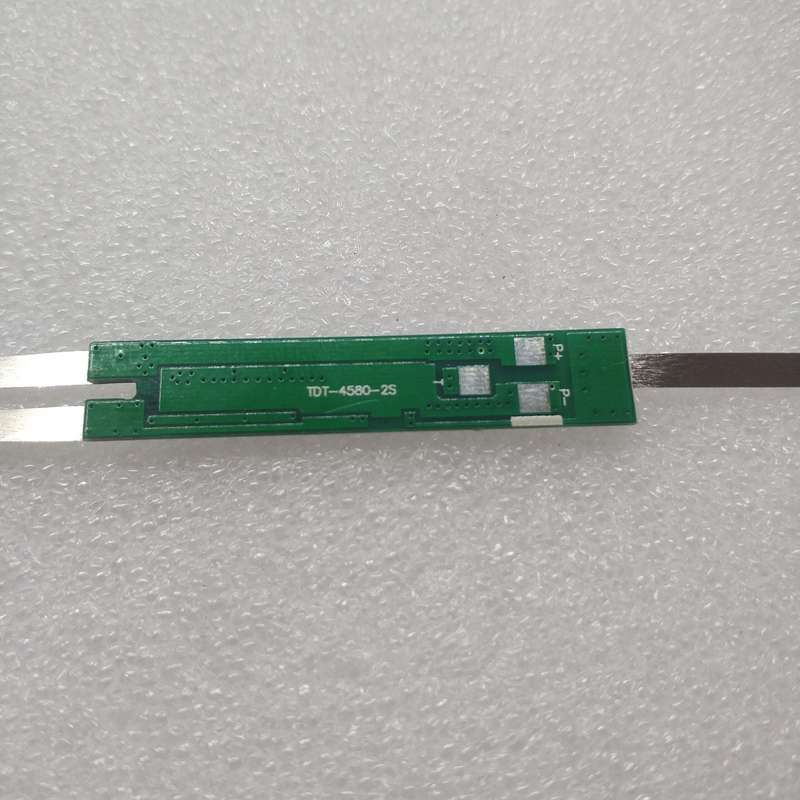

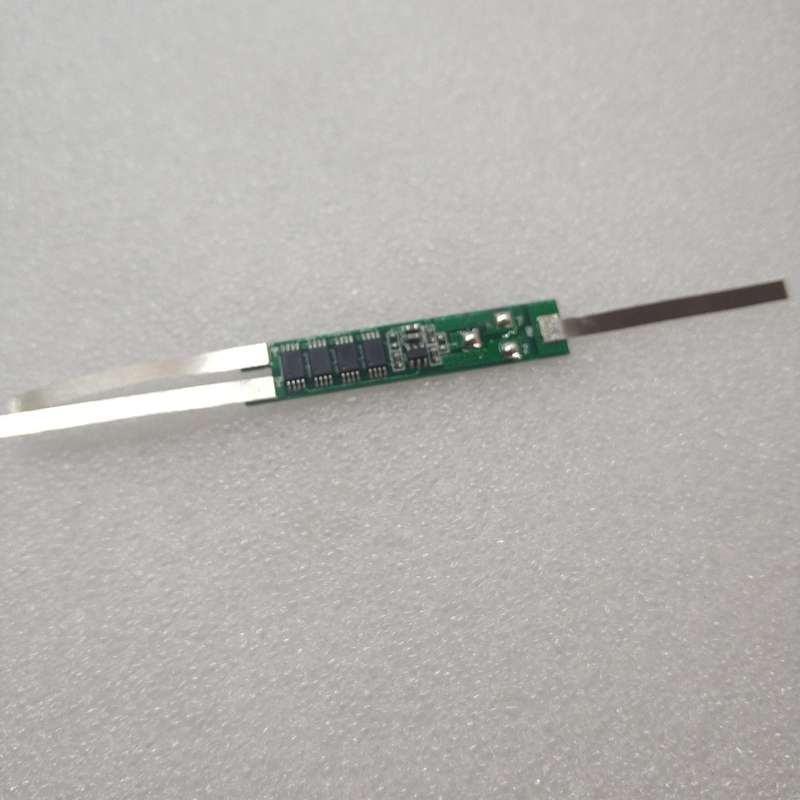

2S 6.4V 6A (3.2v cells) LiFePo4 Battery Protection Board (10004257)
The 2S 6.4V 6A LiFePo4 Battery Protection Board is designed to protect lithium iron phosphate batteries from overcharging, over-discharging, and short circuits, ensuring a longer battery life.
Description:
Type: Voltage Regulator Supply Voltage: 7.2V Application: LiFePo4 lithium battery (3.2v cells)
Working current: 0-6A
Working temperature: -40---+50 °C
Instantaneous current: 6A
Storage conditions: -40-- +80 ° C
Quiescent current: less than 5uA
Effective life: more than 50,000 hours
Internal resistance: less than 300m
Short circuit protection: protection, charge recovery Size: 40*8*2.6mm
Solder joint description:
B+: Connect the battery positive pole;
B-: Connect the battery negative pole;
MB: Connect the connection point between battery 1 and battery 2;
P+: charging/discharging terminal positive (common terminal/discharge terminal shared);
P-: Connect the negative terminal of the charge/discharge terminal (common to the charge terminal/discharge terminal).
Package Contents:
1 x 2S 6A lithium battery protection board
