2 motors are included in this auction

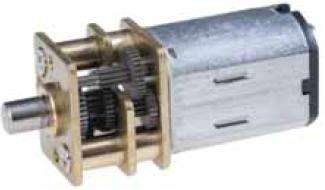

DC permanent magnet motor with gearbox.
Specifications:
• Supply Voltage Range: 1.5 - 8Vdc Nominal Voltage: 5Vdc
• Gear Ratio: 289:1
• Stall Torque: 2110g.cm, that is 207mN.m
• No Load Rotational Speed: 62rpm
• Specifications at Maximum Efficiency:
Rotational Speed: 50rpm
Supply Current: 160mA max.
Torque: 390g.cm, that is 38mN.m
• Dimensions:
Length: 24.2mm (excluding shaft length)
Shaft: 3mm diameter x 3.7mm Length
Gearbox Length: 9.3mm
Gearbox: 12mm width x 10mm height
Motor Length: 15mm
Motor: 12mm width x 10mm height
• Weight: 9.2g
