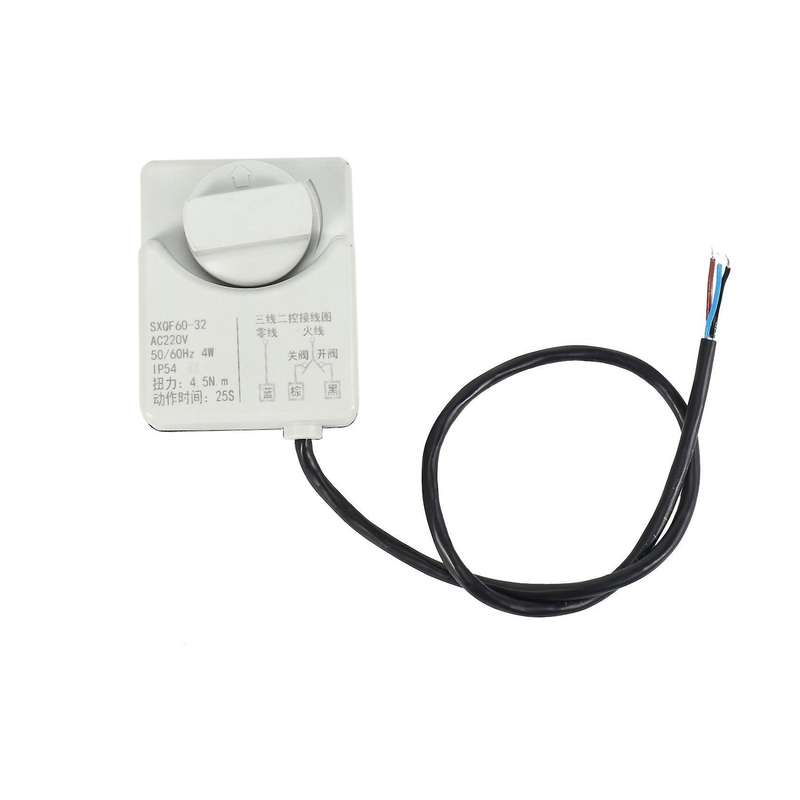

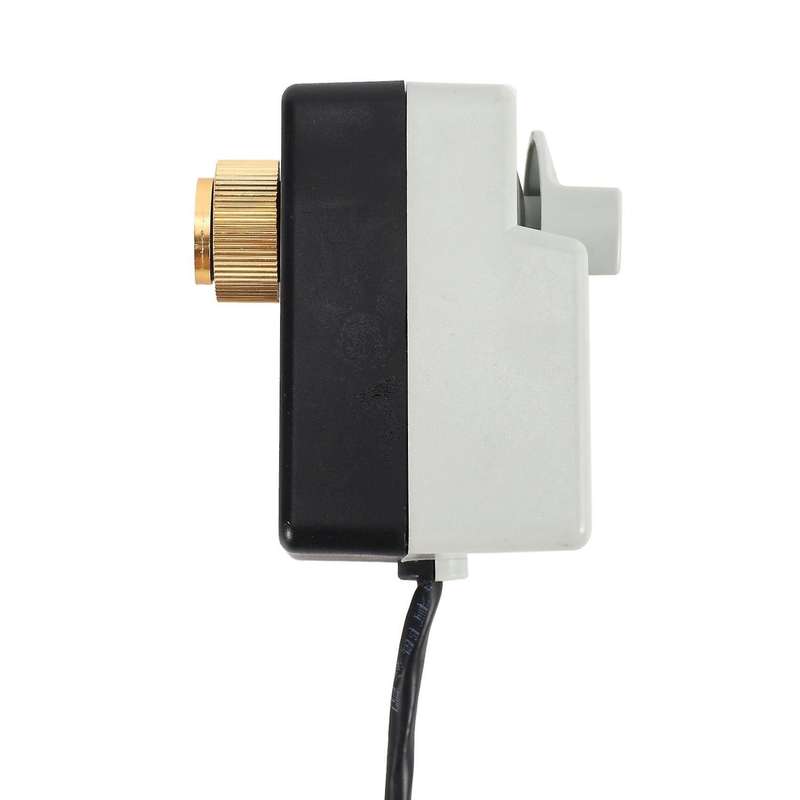

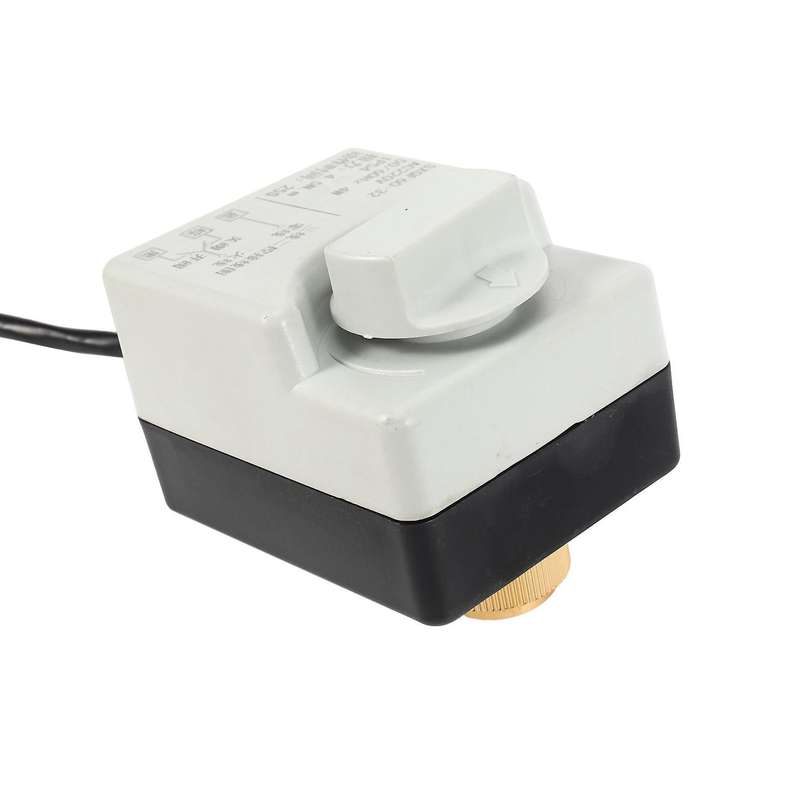

2x Ac220v Dn25 2 Way 3 Wires Motorized Ball Valve Electric Actuator

Pressure: Medium PressureStandard or Nonstandard: StandardPower Source: ACStructure: as shownPower: electricDescription:color: greyMaterial: plastic + metalDimension:DN25Maxmum Working Pressure: 1.6 MPa / 232psi;Medium: Water, Air, Oil;Voltage:AC220V 50/60 Hz Available;Power: Max is 6WOperation: Motor and hand(with manual switch function)Cable Length:0.5 MetersLife Time: 100000 times;Seal Material: EPDM & PTFE;Enviroment Temperatur :-15-50 in Celsius;Flssigkeits Temperatur: -5-100 in CelsiusProtect Class:IP 50Application:This brass motorized ball valve applicable to air conditioning fan coil system and heating system in the off control, by the ball valve and the actuator composition, Actuator using synchronous motor drive, built-in limit contacts, the valve can be fully open or full off when the power, stable action.Work principle:This Valve used for heating systems and air-conditioning fan coil systems on-off controlled by the valve and actuator components,actuators driven by a rotary valve ball 90 percent of movement.Synchronous motor driven actuator, Built-in limit contacts, enabling the valve in the fully open or fully closed off, the action and stabilityPackage Include:2 x electric actuator ball valveOnly the above package content, other products are not included.Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
