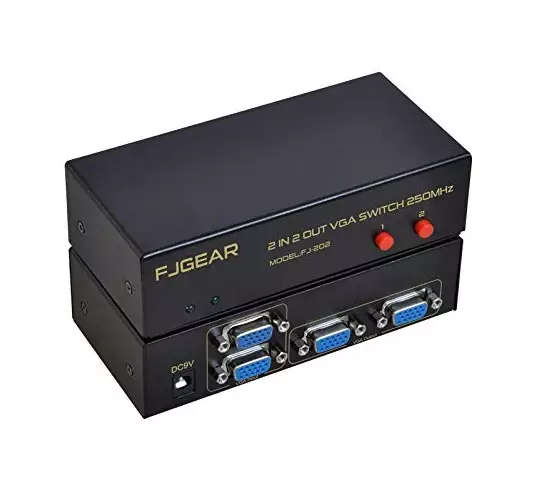

2x2 (2 inputs, 2 outputs) Active / Powered VGA Splitter & Switch Combo
This VGA / SVGA / XGA / UXGA / WXGA (up to 1920 x 1440 pixels) Switch / Splitter is used to distribute 2 VGA sources such as PC or Laptop for presentation to multiple displays over long distances.
Features
Work on any hardware platform with all operating systems.
Driver-free feature simplifies installation procedure.
Hook up with an additional VGA multiplier / splitter enable to extend / cascade the splitter and form a larger network.
Mhz is a measure of bandwidth. It determines the maximum resolution each switch can support. It breaks down to the following approximations.
150Mhz = up to 1600x1200
250Mhz = up to 1920x1440
400Mhz = up to 2048x1536
Specifications
250MHz Bandwidth provides sharp, clear images at any resolution up to 1920 x 1440: VGA, Super VGA, or XGA and Multi-Sync Monitors.
Up to 40 Meters is an ideal data transmission distance, but it can provide distances up to 60 Meters depending on quality of VGA cables used. Ghosting may occur on any analogue signal such as VGA on very long distances.
Supports "hot swapping" and "plug & play"
Saves desk space with slim-line design.
Easy to install, no driver required.
Works on any platform with all operating systems.
- Input Connector 2 x HD15 / VGA Female
- Output Connector 2 x HD15 / VGA Female
- Dimension 153 x 115 x 47mm
- Weight 350g
- Temperature 0°C - 60°C
- Bandwidth 250MHz
- Resolution 1920 x 1440/70Hz

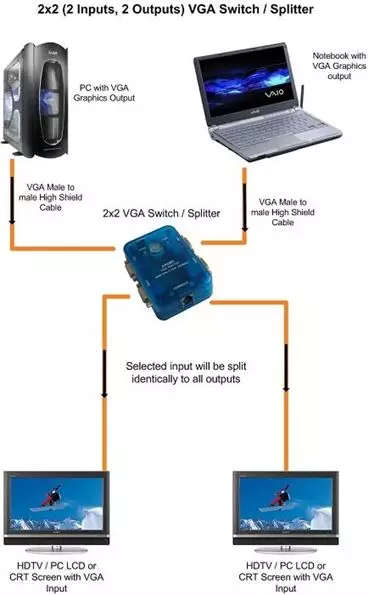

Example Installation Diagram below
Use high quality Surge Protection plugs on your equipment to ensure unstable power from electrical wall socket / electrical surges will have less chance of damaging your equipment. a UPS (Uninterruptible power supply) is highly recommended in all areas of your home or business where LCD's, players and HDMI Equipment is installed.
** No VGA Cables are included with this unit and cables will need to be purchased separately as below
