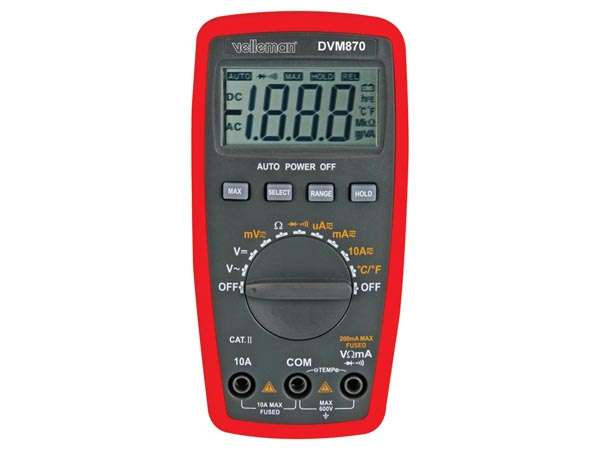

Features3 1/2 Digit LCD display with automatic polarity indication and settings information
automatic or manual range selection
data hold function
continuity and diode test
peak hold function
auto-restore fuse (except 10A range)
conform with IEC61010-1 CAT II (residential branch circuits) 600V
Specifications
DC voltage: 0.2/2/20/200/600V
basic accuracy: ±(0.5% of rdg + 4 digits) / ±(1.0% of rdg + 4 digits) for 600V range
input impedance: > 10Mohm
maximum input: 600V
AC voltage: 0.2/2/20/200/600V
basic accuracy: ±(0.8% of rdg + 6 digits) / ±(1.5% of rdg + 20 digits) for 0.2V range
input impedance: > 10Mohm
frequency range: 50-200Hz
maximum input: 600V
DC current: 200µ/2m/20m/200m/10A (max. line voltage 230V)
basic accuracy: ±(1.0% of rdg + 10 digits) / ±(1.2% of rdg + 10 digits) for 10A range
overload protection: 0.2A (10A for 10A range)
AC current: 200µ/20m/200m/10A (max. line voltage 230V)
basic accuracy: ±(1.5% of rdg +10 digits) / ±(2.5% of rdg + 15 digits) for 10A range
overload protection: 0.2A (10A for 10A range)
resistance: 200/2k/20k/200k/2M/20M
basic accuracy: ±(0.8% of rdg + 5 digits) for 200ohm range / ±(0.8% of rdg + 4 digits) for 2K~2Mohm range / ±(1.2% of rdg + 10 digits) for 20Mohm range
overload protection: 250V
temperature: -55°C to 1000°C
basic accuracy: < 400°C ±(1.0% of rdg + 5 digits) / > 400°C ±(1.5% of rdg + 15 digits)
overrange: yes "OL"
continuity buzzer: yes
transistor test: no
diode test: yes
low-battery indication: yes
maximum display: 1999
LCD display size: 19 x 48 mm
ranging mode : auto / manual
data hold: yes
backlight: no
dimensions: 70 x 145 x 30 mm
weight (with battery): ± 186g
power supply: 2x AAA (LR03C, incl.)
accessories: manual / test leads / holster / K-type thermocouple
auto power-off: yes
