3.2" TFT LCD module with Touch Panel, SD Card Slot and a LCD Shield combo

3.2" TFT LCD MODULE WITH TOUCH PANEL, SD CARD SLOT AND A LCD SHIELD COMBO

Product information
1. TFT LCD

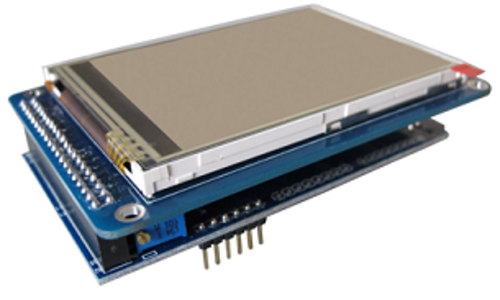

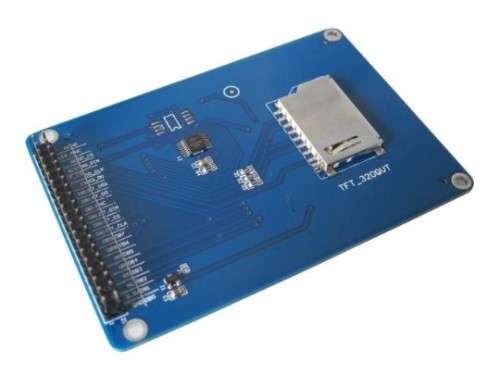

3.2" inch TFT LCD module with touch screen controller and a SD card cage. It is suitable for embedded systems which require high quality colour displays for images or video with touch control panel and SD data storage.

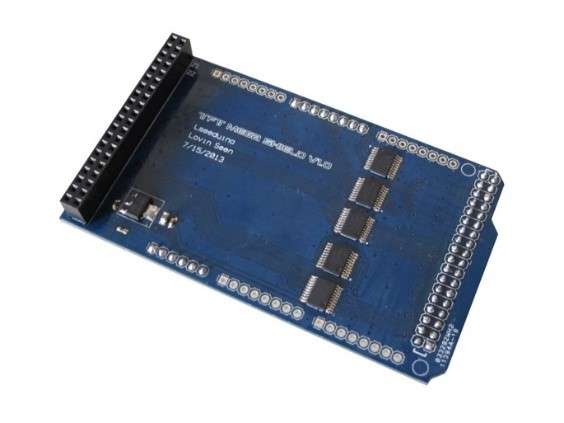

2. LCD Shield
This shield supports 16 bit mode. The shield has 5 x 5V to 3.3V level translators on board. Arduino Mega has enough pins for using the LCD, SD card and touch panel at the same time.
Compatible with Arduino MEGA2560 / MEGA2560 R3
(Arduino UNO/Leonardo not compatible with LCD Shield)

Specifications
On board SSD1289 touch panel controller
On board ILI9325 display controller
On board 3.3v voltage regulator
On board standard SD card socket. Maximum of 2GB SD Card is supported
Will need to use 5V to 3.3V level translators if connecting to 5V powered MCU or the included Arduino LCD Shield if connecting to the Arduino Mega 2560
Support 16 bit RGB565 format. Connects to any 16 bit data bus
2x20 Pin 2.54mm double row pin header interface for connecting MCU
Can be driven by Arduino/ 8051 / AVR / PIC and other low power microcontrollers
Display content: 320RGB x 240RGB
Resolution: 320 x 240 Dots
Screen: 262,000 Colours
Backlight type: White LED
Size: 57.54 (W) x 79.2 (H) x 4.40(T) mm

Package includes
1 x 3.2" TFT LCD Display Module
1 x TFT LCD Shield
