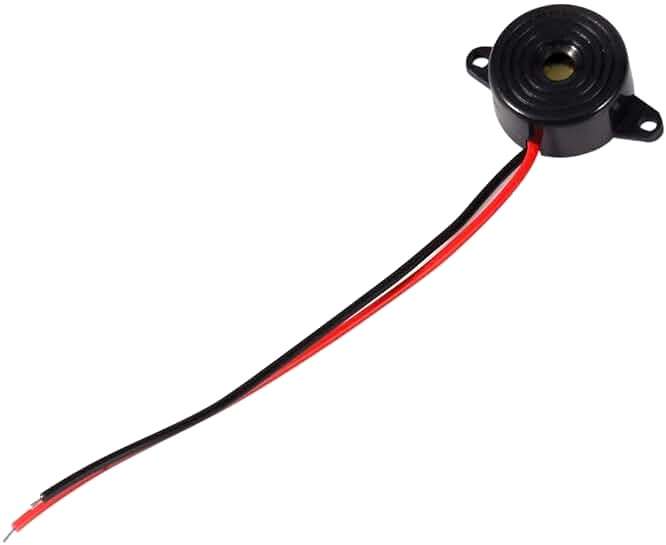

3-24v Piezo Electronic Tone Buzzer Alarm Continuous Sound Cable Length 100mm

Description:

Buzzer is an electronic sounder with integration structure.

Using DC power, it is widely used on computers, printers, photocopiers, alarm, electronic toys, automotive electronic equipment, telephone, timer and other electronic products.

Features:

1, Piezoelectric buzzer is mainly made up by multivibrator, piezoelectric buzzer chip, impedance matching unit, resonator and shell.

2, Multivibrator is composed of transistors or integrated circuits. When switched on, multivibrator vibrates and outputs audio signal.

3, Impedance matcher drives piezoelectric buzzer sound.

4, Connected to rated power and the buzzer will sound continuously.

5, Can be controlled conveniently.

Specifications:

Model: 2312

Color: Black

Diameter: 23mm

Height: 12mm

Cable Length: 100mm

Sound Pressure Level: 85 to 95 decibels

Rated Voltage: 12VDC

Working Voltage Range: 3V-24V

Maximum Current: 10mA

Weight: 3g(approx.)
