Pure sine wave inverter
Configurable input voltage range for home appliances and personal computers via LCD setting
Configurable battery charging current based on applications via LCD setting
Configurable AC/Solar Charger priority via LCD setting
Compatible to mains voltage or generator power
Auto restart while AC is recovering
Overload/ Over temperature/ short circuit protection
Smart battery charger design for optimized battery performance
Cold start function
WIFI/GPRS (Optional)
Can connect to lithium battery
3.2 Basic System Architecture
The following illustration shows basic application for this inverter/charger. It also includes following devices to have a complete running system:
Generator or Utility.
PV modules
L x 390mm H x 100mm W x 290mm
5.6kg
(PLEASE NOTE THE FANS ARE ALWAYS ON)
What's in the box

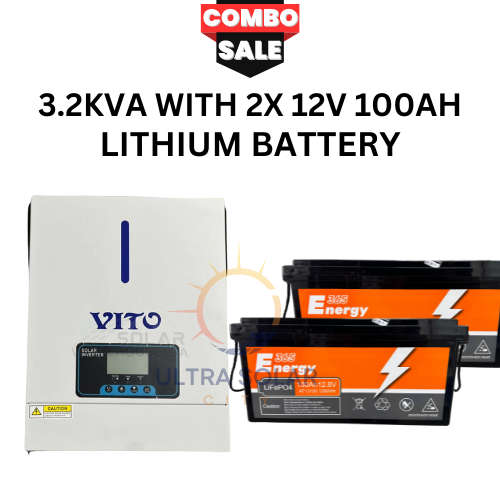

1 x Hybrid Solar Inverter SH3.5K24
1 x Manual
365 ENERGY BATTERY
12.8V 1.28KWh
Cells: LiFePO4
Series: 2 MAX = 24V @ 100AH (2.56KWh)
Parallel: 2 MAX = 12V @ 200AH (2.56KWh)
>3000 cycles at 80% DOD
Battery Voltage:
Bulk: 14.0v
Float: 13.6v
Cut Off: 11.2v
