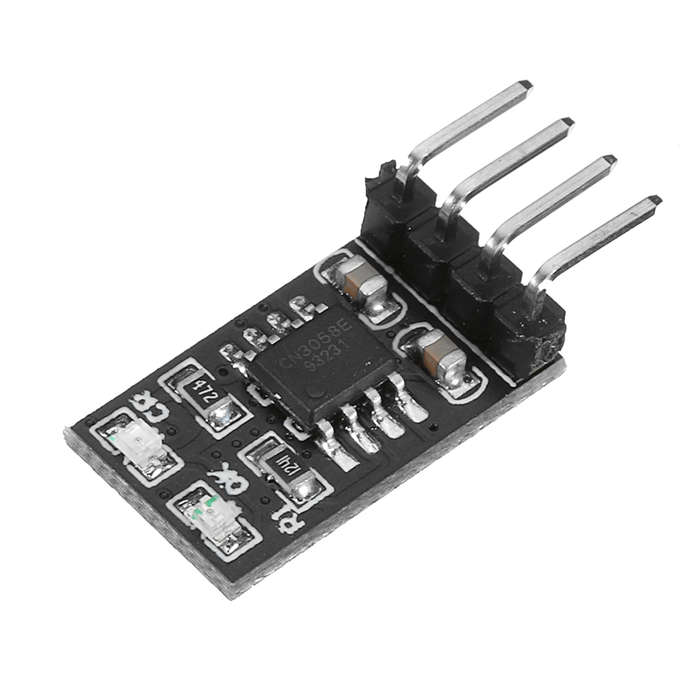

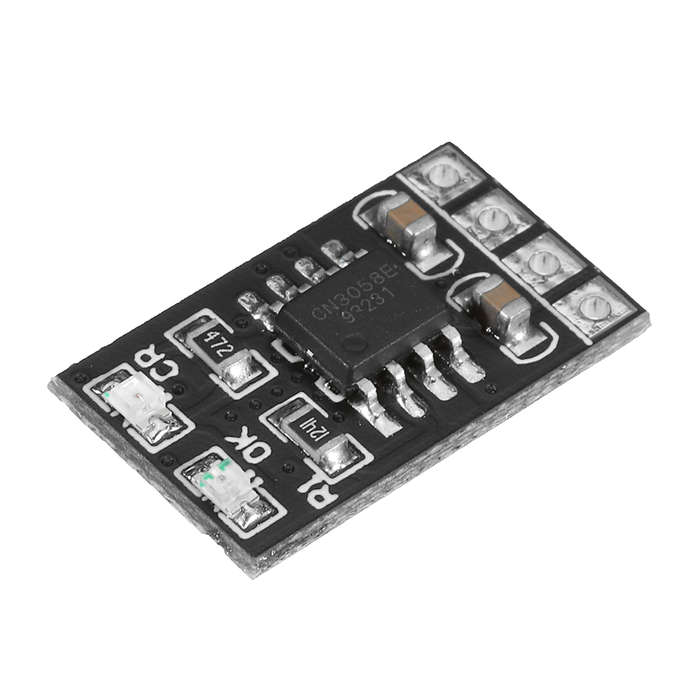

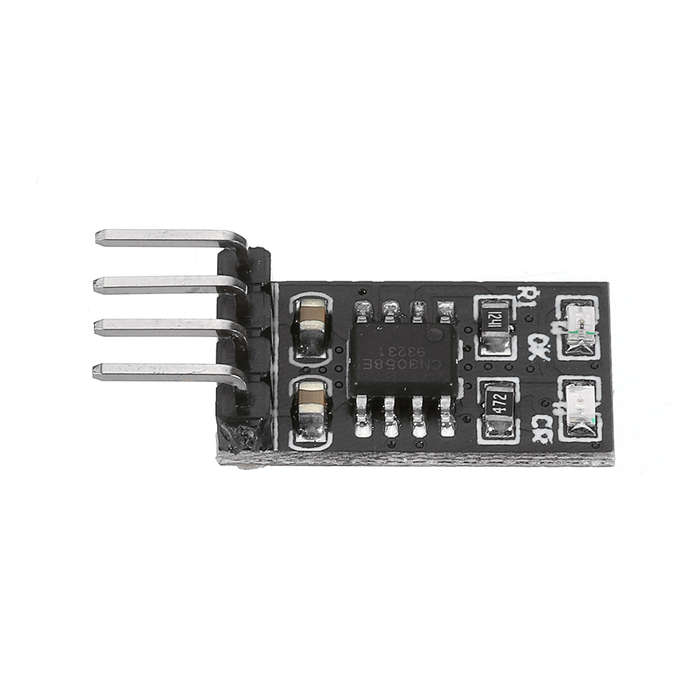

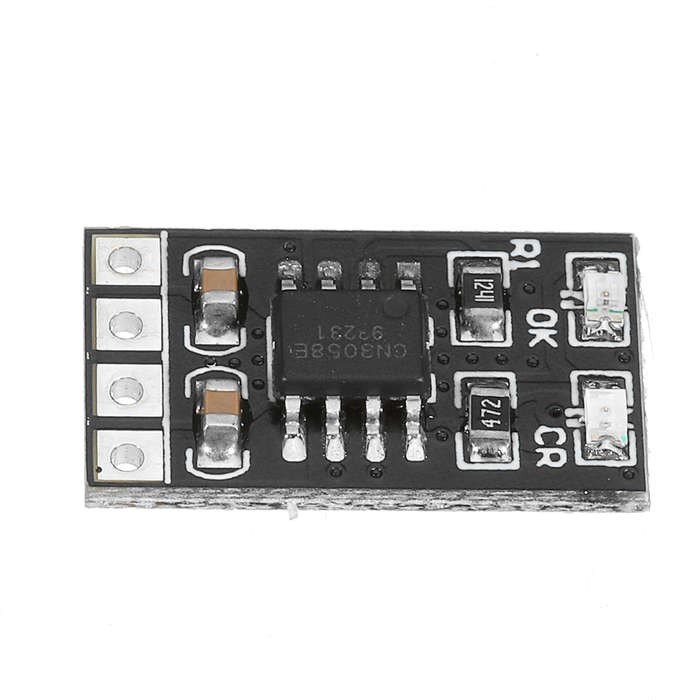

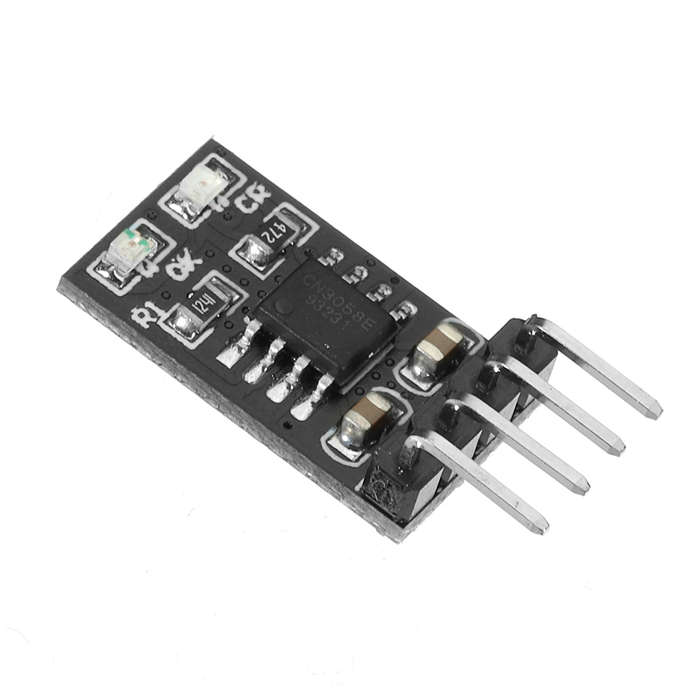

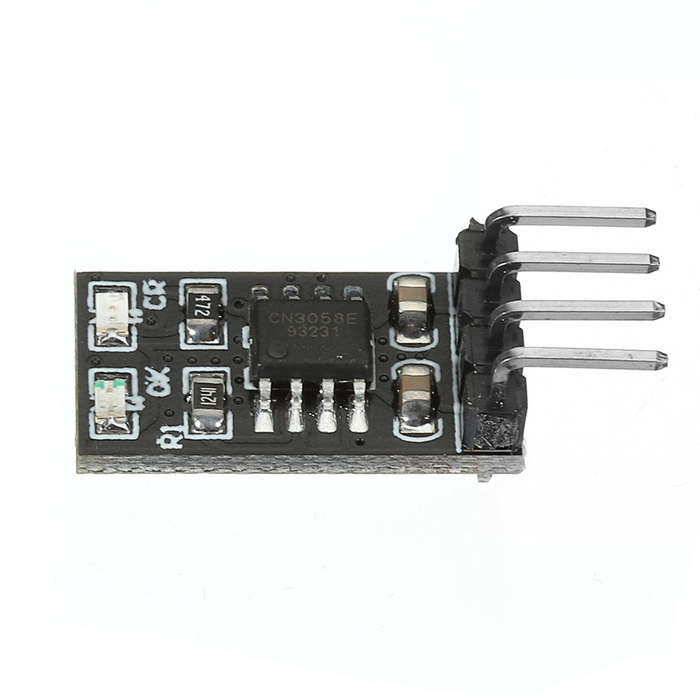

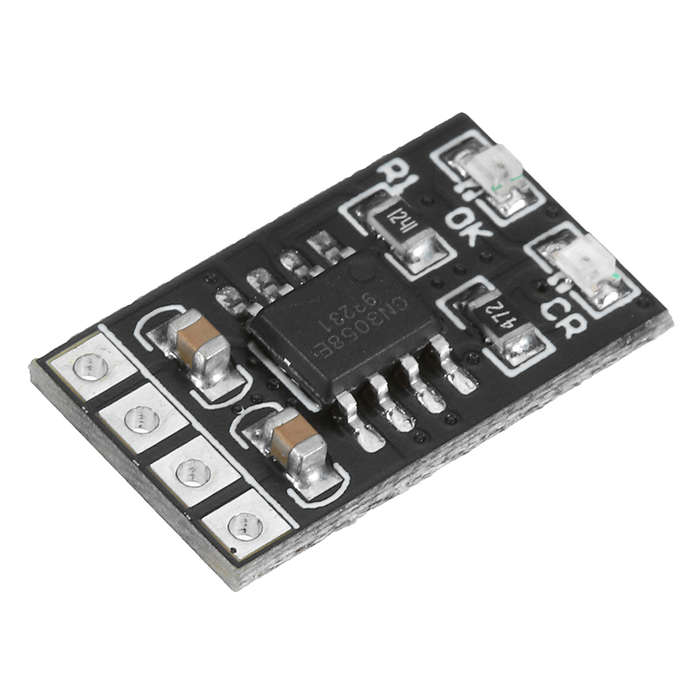

3.2V 3.6V 1A LiFePO4 Battery Charger Module Battery Dedicated Charging Board (TYPE: WITHPIN)

SELECTED OPTION:
TYPE: WITHPIN

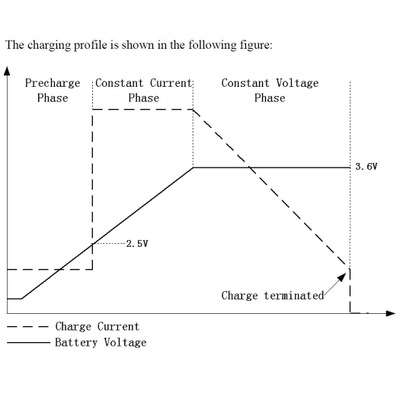

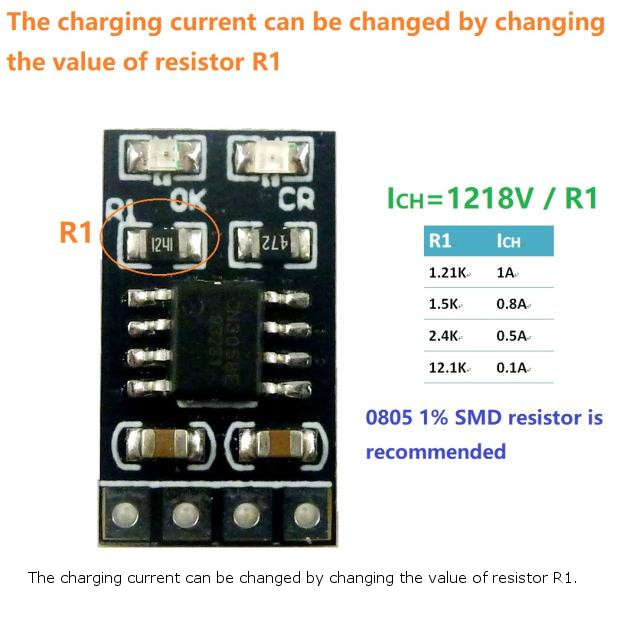

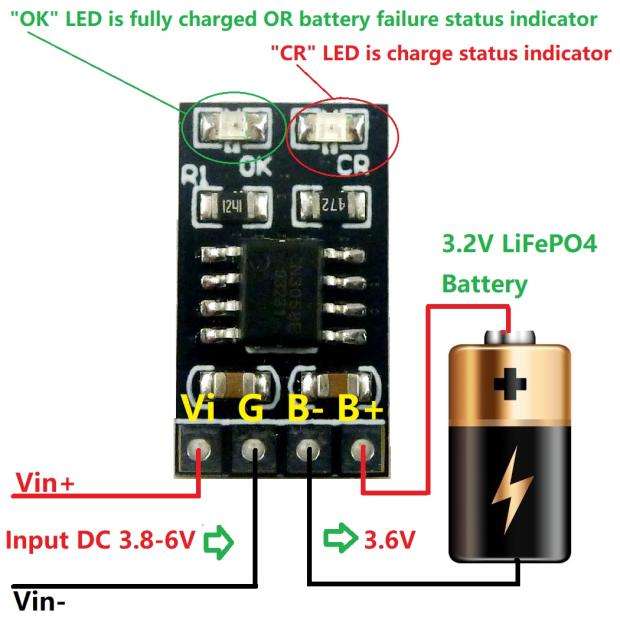

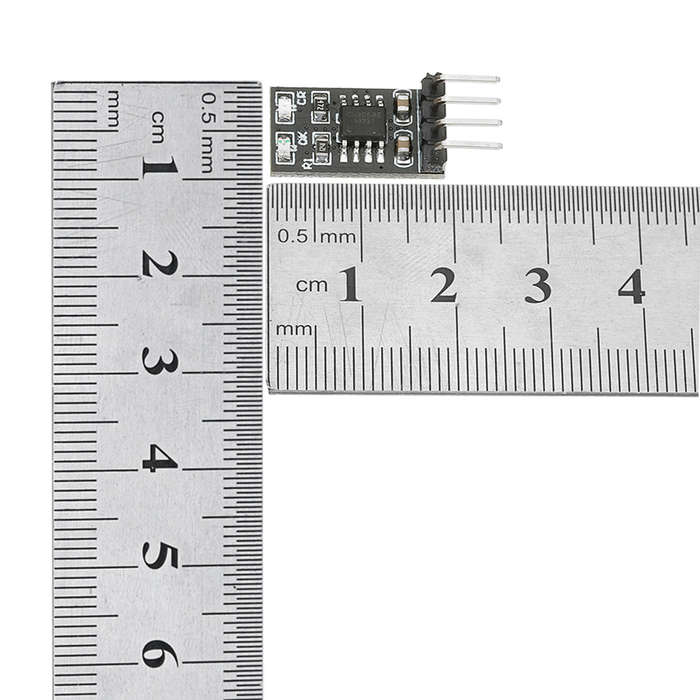

Description:? ? 1. Complete Charge Management for Single Cell LiFePO4 Battery 2. Power supply voltage DC 3.8-6V, Charging output voltage DC 3.6V; 3. The maximum charge current/output current is 1A, but you can change the current by changing the value of the R1 resistor. 4. Precharge Conditioning for Reviving Deeply Discharged Cells and Minimizing Heat Dissipation During Initial Stage of Charge 5. Constant-Current/Constant-Voltage/Constant-Temperature Operation with Thermal Regulation to Maximize Charge Rate Without Risk of Overheating 6. Automatic Low-Power Sleep Mode When Input Supply Voltage is Removed 7. C/10 Charge Termination 8. Automatic Recharge 9. Battery Temperature Sensing 10. Battery Overvoltage Protection 11. Led indicator: ''CR'' LED is charge status indicator, ''OK'' LED is fully charged OR Constant voltage mode; 12. Operating Ambient Temperature: -40a?? to +85a?? 13. Size 18mm x 10.16mm x 2.7mm 14. Weight : 0.9g(With Pin), 0.6g(No Pin) ? Applications: ? Car battery charging? Children's toy car, toy airplane Solar battery charging? Mobile Loudspeaker? Electric Bicycle Charger? UPS? Uninterruptible power supply Portable Industrial and Medical Equipment? Standalone Battery Chargers? Hand-held Equipment Battery-Backup Systems Portable Industrial and Medical Equipment Miner's lamp LiFePO4 battery applications
Package includes: ? 1 x 1A 3.2V Single Cell LiFePO4 Battery Dedicated charging module
