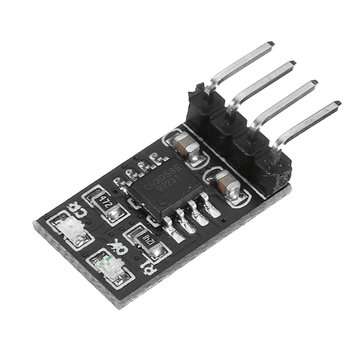

3.2V 3.6V 1A LiFePO4 Battery Charger Module Battery Dedicated Charging Board (TYPE: WITHPIN)

20 available / new

R396.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3508

93.41 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

643362394

SELECTED OPTION:
TYPE: WITHPIN

Description: 1. Complete Charge Management for Single Cell LiFePO4 Battery 2. Power supply voltage DC 3.8-6V, Charging output voltage DC 3.6V; 3. The maximum charge current/output current is 1A, but you can change the current by changing the value of the R1 resistor. 4. Precharge Conditioning for Reviving Deeply Discharged Cells and Minimizing Heat Dissipation During Initial Stage of Charge 5. Constant-Current/Constant-Voltage/Constant-Temperature Operation with Thermal Regulation to Maximize Charge Rate Without Risk of Overheating 6. Automatic Low-Power Sleep Mode When Input Supply Voltage is Removed 7. C/10 Charge Termination 8. Automatic Recharge 9. Battery Temperature Sensing 10. Battery Overvoltage Protection 11. Led indicator: ''CR'' LED is charge status indicator, ''OK'' LED is fully charged OR Constant voltage mode; 12. Operating Ambient Temperature: -40a to +85a 13. Size 18mm x 10.16mm x 2.7mm 14. Weight : 0.9g(With Pin), 0.6g(No Pin) Applications: Car battery charging Children's toy car, toy airplane Solar battery charging Mobile Loudspeaker Electric Bicycle Charger UPS Uninterruptible power supply Portable Industrial and Medical Equipment Standalone Battery Chargers Hand-held Equipment Battery-Backup Systems Portable Industrial and Medical Equipment Miner's lamp LiFePO4 battery applications
Package includes: 1 x 1A 3.2V Single Cell LiFePO4 Battery Dedicated charging module
