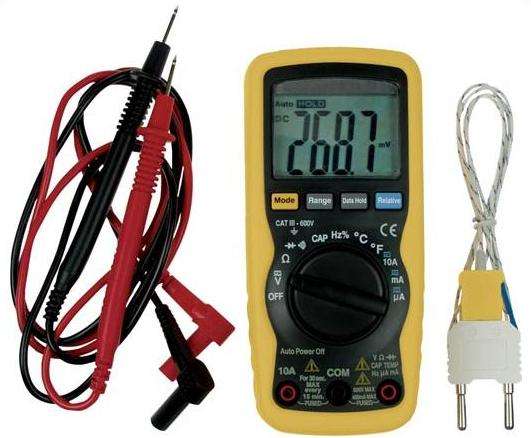

3 3/4 Autorange Digital Multimeter / Frequency / Capacitance

New
R640.00
Closed 9 Nov 12 11:41
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Get it now, pay later
Buyer Protection

Product details

Condition
New
Location
South Africa
Customer ratings:
Bob Shop ID
80312440

Features

  • very complete model
  • complies with EN61010
  • 4000 counts LCD display with function indication
  • low-battery indication
  • automatic deactivation after 15 min. of inactivity
  • audible continuity test
  • relative measurement
  • diode test
  • duty cycle measurement: 0.1% ~ 99.9% (±1.2% + 2 digits) from 5Hz to 150kHz
  • data hold function
  • included accessories:
    • test leads
    • thermocouple (SONDE890)
    • battery
    • carrying bag

Specifications

  • DC voltage: 400m/4/40/400/600V
    • basic accuracy: ±1.2% + 2 digits, ±0.5% + 2 digits (400mV), ±1.5% + 2 digits (600V)
    • input impedance: 7.8M ohms
    • maximum input: 600V
  • AC voltage: 400m/4/40/400/600V
    • basic accuracy: ±1.5% + 3 digits, ±1.5% + 15 digits (400mV), ±2.0% + 4 digits (600V)
    • input impedance: 7.8M ohms
    • frequency range: 50 - 400Hz
    • maximum input: 600V
  • DC current: 400µ/4m/40m/400m/10A
    • basic accuracy: ±1.5% + 3 digits, ±1.0% + 3 digits (4µA), ±2.5% + 5 digits (10A)
    • overload protection: 0.5A/250V and 10A/250V fuse
  • AC current: 400µ/4m/40m/400m/10A
    • basic accuracy: ±1.8% + 5 digits, ±1.5% + 5 digits (4µA), ±3.0% + 7 digits (10A)
    • overload protection: 0.5A/250V and 10A/250V fuse
  • resistance: 400/4k/40k/400k/4M/40M ohms
    • basic accuracy: ±1.2% + 2 digits, ±1.2% + 4 digits (400 ohms), ±1.0% + 2 digits (4k ohms), ±2.0% + 3 digits (40M ohms)
    • overload protection: 250VDC
  • capacitance: 4n/40n/400n/4µ/40µ/200µF
    • accuracy: ±3.0% + 5 digits, ±5.0% + 50 digits (4nF), ±5.0% + 7 digits (40nF), ±5.0% + 5 digits (200µF)
  • inductance: -
    • accuracy: -
  • frequency: 10/100/1k/10k/100k/1M/10MHz
    • basic accuracy: ±1.2% + 3 digits, ±1.5% + 5 digits (10/100Hz), ±1.5% + 4 digits (10MHz)
    • overload protection: 250V
  • temperature: -20°C ~ 760°C / -4°F ~ 1400°F
    • basic accuracy: 1°C / 1°F
  • overrange: yes "OL"
  • continuity buzzer: yes
  • transistor test: -
  • diode test: yes
  • low-battery indication: yes
  • maximum display: -
  • LCD display size: 24mm
  • ranging mode: autoranging
  • data hold: yes
  • backlight: no
  • dimensions: 150 x 70 x 48mm
  • weight (with battery): 250g
  • power supply: 9V battery IEC 6F22 (incl.)
  • packing: box
  • accessories: thermocouple, test leads, pouch
  • auto power-off: yes

Customer ratings: 1 ratings

Good seller, good product
26 Nov 2012
