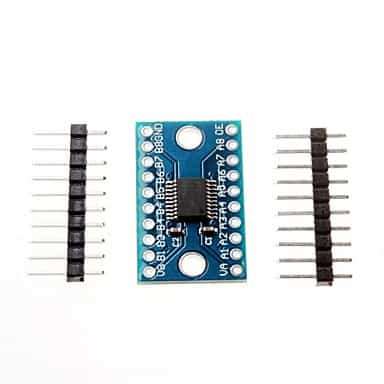

3.3V 5V TXS0108E 8 Channel Logic Level Converter

3.3V 5V TXS0108E 8 Channel Logic Level Converter

New 12 available
R43.17
Shipping
R65.00 Standard shipping applies to orders under R100.00, in most areas in South Africa. R35.00 Standard shipping applies to orders over R100.00. Some areas may attract a surcharge surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
MOD-027
Bob Shop ID
614718621

How to Use:

In the case of translating between 3.3V and 5V system:

VCCA connects to 3.3V power supply

VCCB connects to 5V power supply

GND connects to power negative pole respectively, the two power supply should be common-grounded with each other

When Ax has TTL 3.3V input, Bx will get TTL 5V output

When Bx has TTL 5V input, Ax will get TTL 3.3V output

NO direction control required

Features:

  • 8 channels bidirectional voltage translation between different logic level, translate between Ax and Bx automatically
  • Voltage level: 1.8V-6V
  • Dimension: 21mm x 15mm

Chip Datasheet:https://cdn.shopify.com/s/files/1/0647/7702/7824/files/txs0108e.pdf?v=1656490300
