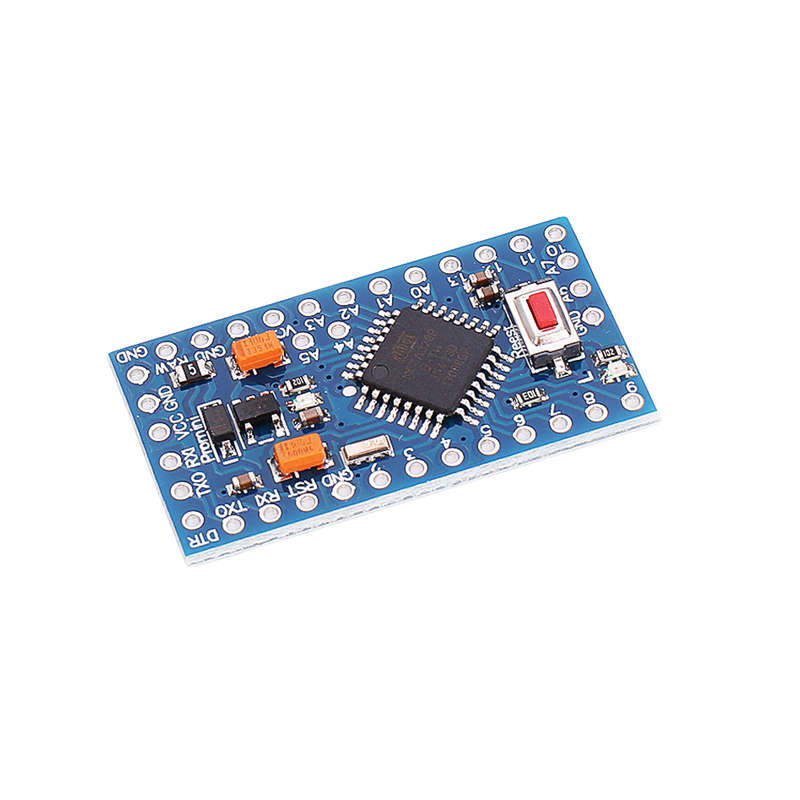

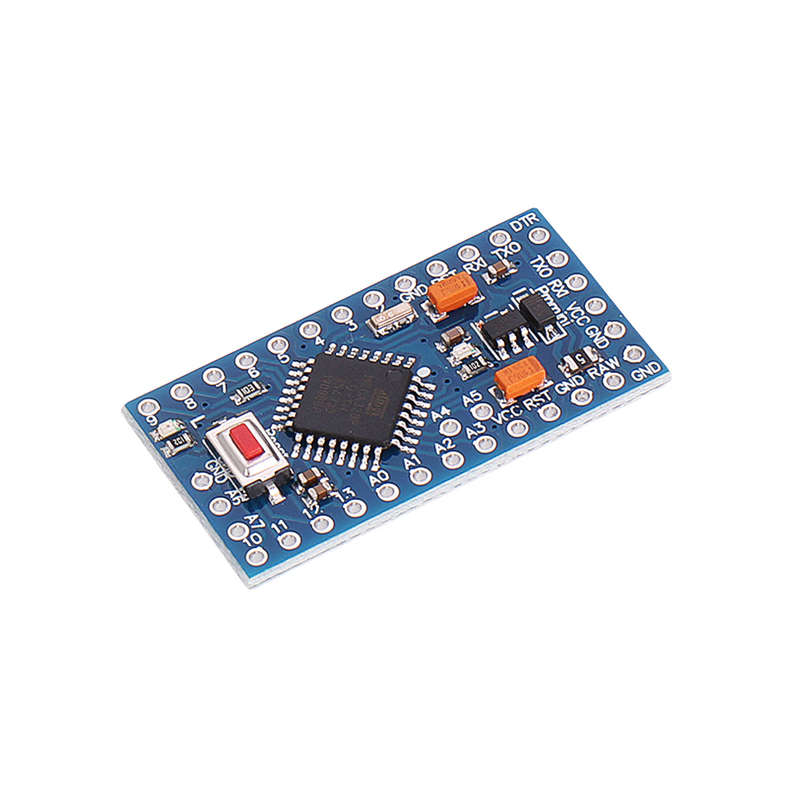

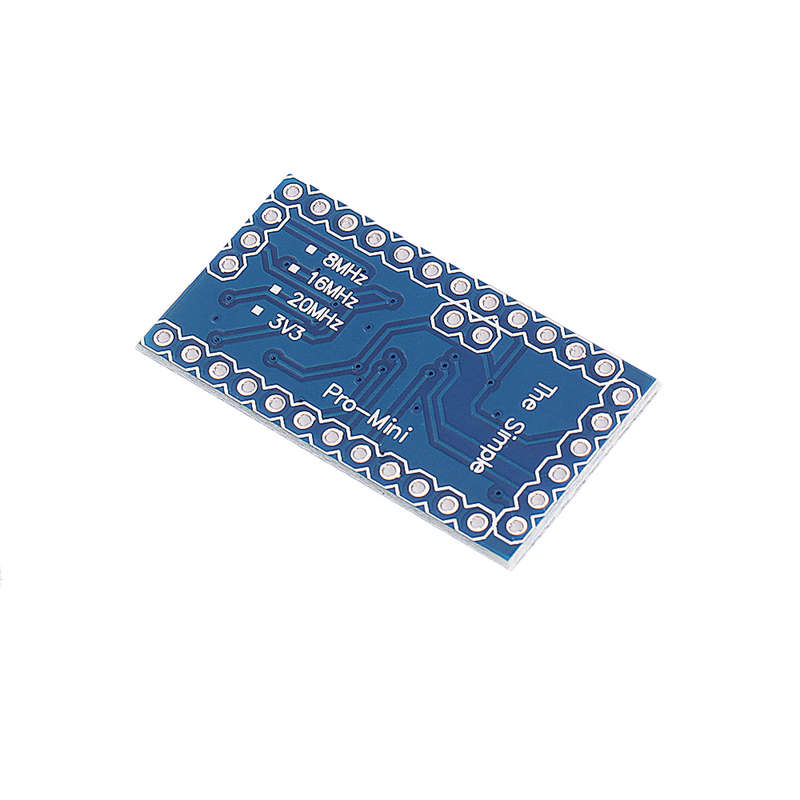

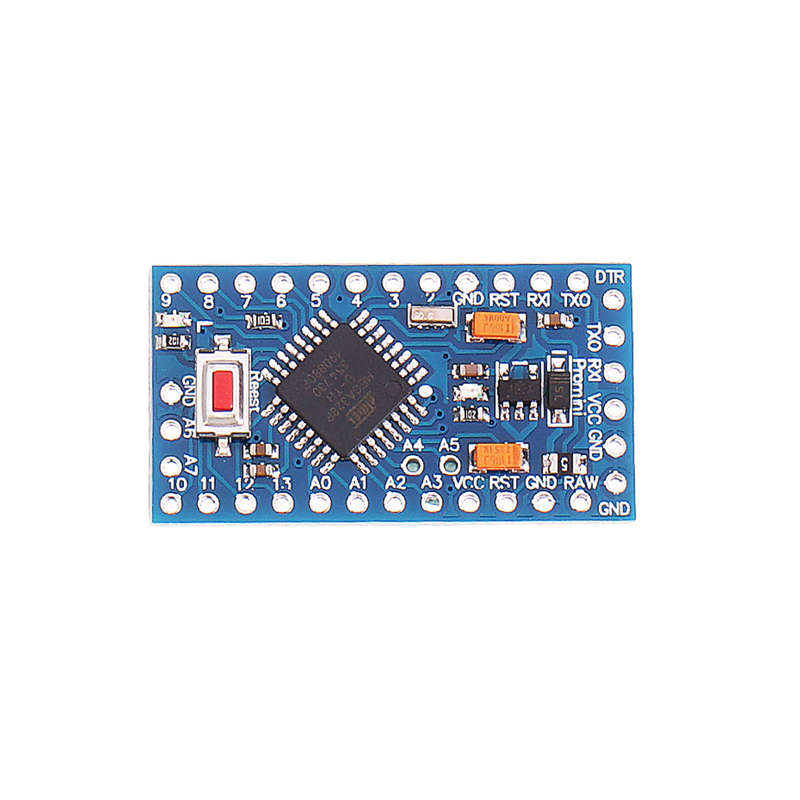

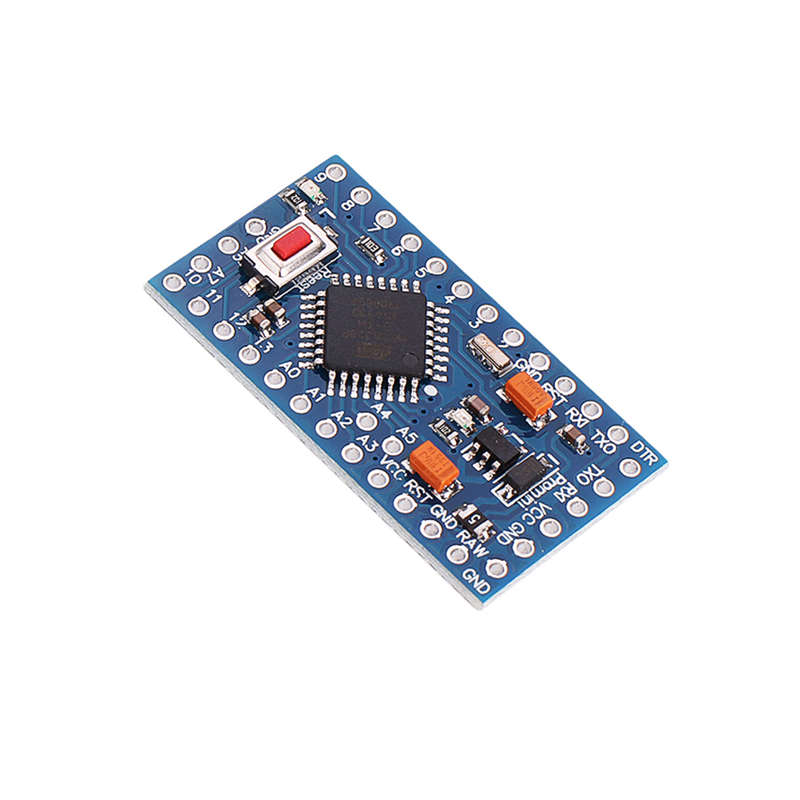

3.3V 8MHz ATmega328P-AU Pro Mini Microcontroller With Pins Development Board Geekcreit for Arduino -

20 available / new

R386.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3462

93.47 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

641106436

Description:

The Pro Mini is a microcontroller board based on the ATmega328 for . With 14 digital input / output pins (of which 6 can be used as PWM outputs), 8 analog inputs, an on-board resonator, a reset button, and holes for mounting pin headers. Six pin header can be connected to an FTDI cable to provide USB power and communication to the board.

Feature:

Using Atmega328P-AU MCU
TTL level serial port transceiver RX / TX
Six PWM ports D3, D5, D6, D9, D10, D11
Supporting serial download
Supporting external DC 2.4V ~ 12V power
Supporting 12V (or below) battery power

Specification:

Microcontroller: ATmega328
Operating Voltage: 3.3V
Input Voltage: 3.35V ~ 12V
Digital I/O Pins: 14 (of which 6 provide PWM output)
Analog Input Pins: 8
DC Current Per I/O Pin: 40mA
Flash Memory: 32KB (of which 2KB used by bootloader)
SRAM: 1KB
EEPROM: 512bytes
Clock Speed: 8MHz

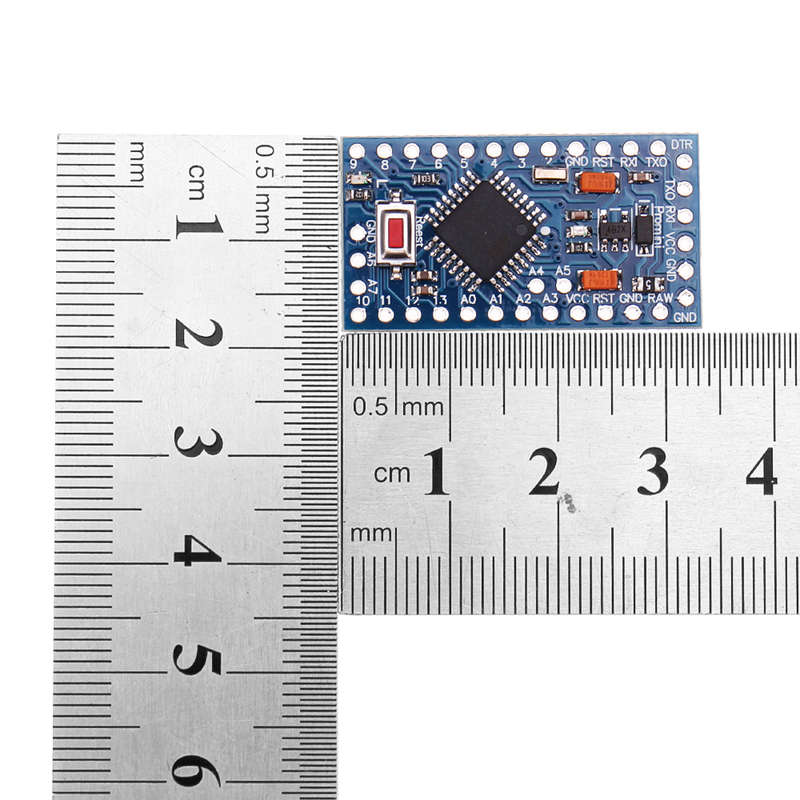

Size: 33.3 x 17.6mm

Package included:

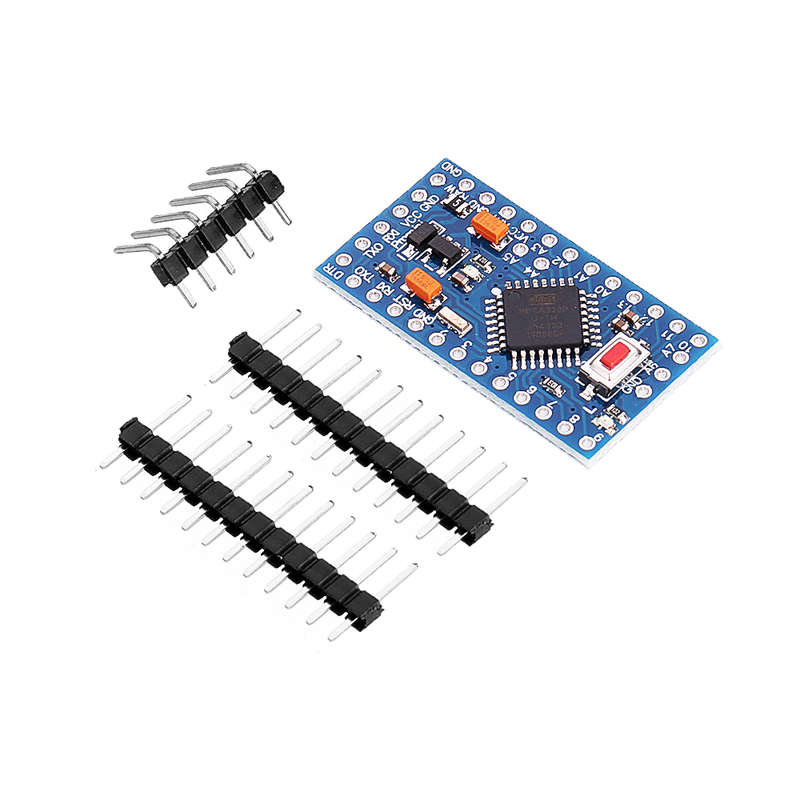

1 x 3.3V 8MHz Pro Mini(With Pins)
