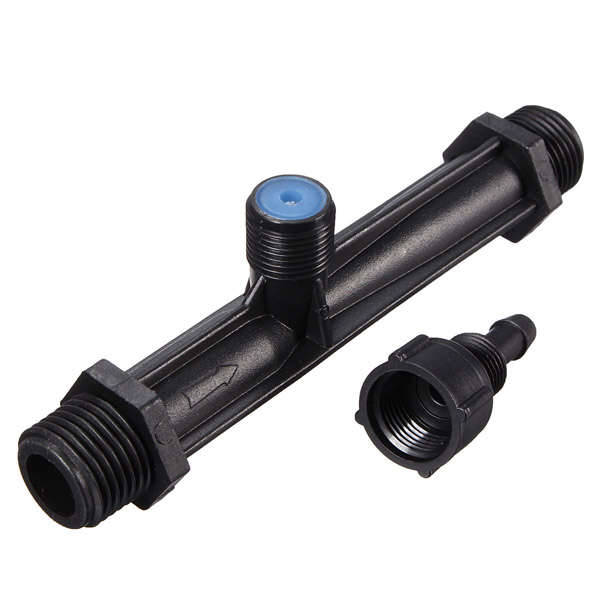

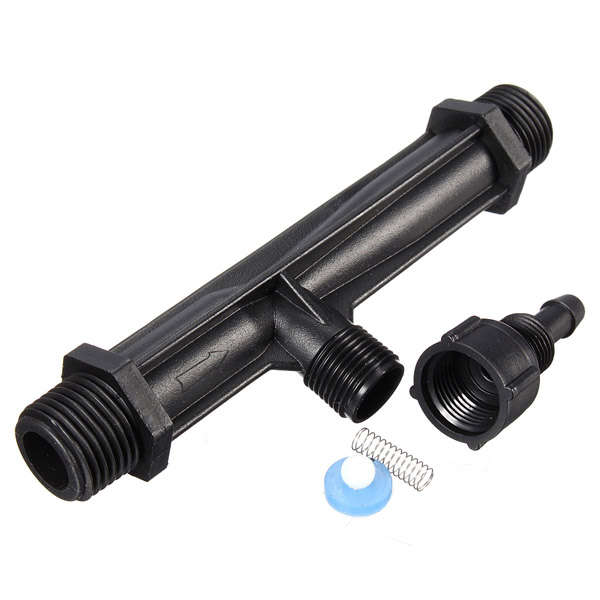

3/4 Inch Irrigation Venturi Fertilizer Injectors Device Filter Kit Tube

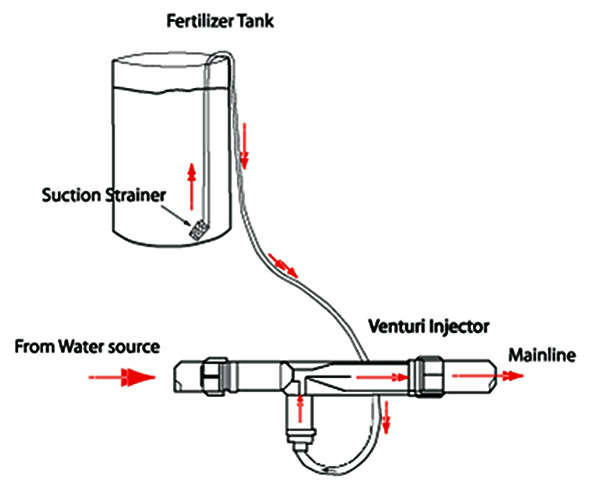

A venturi is a device which creates a vacuum when fluid flows through it. The fluid which creates the vacuum is know as the motive fluid. The motive fluid for irrigation injectors is the irrigation water itself. Vacuum created by the venturi sucks fertilizer or chemical into motive water.



Fertilizer and chemical injection through drip and sprinkler irrigation systems.

Features:
Made of engineering plastic
Excellent chemical resistance to most of the chemicals
Highly efficient and compact differential pressure injection device
Economical and low cost option
Available in 3/4" BSP inlet/outlet connection

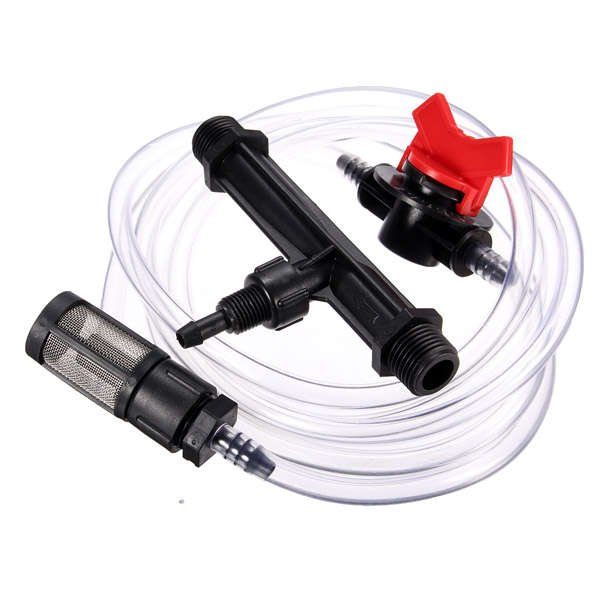

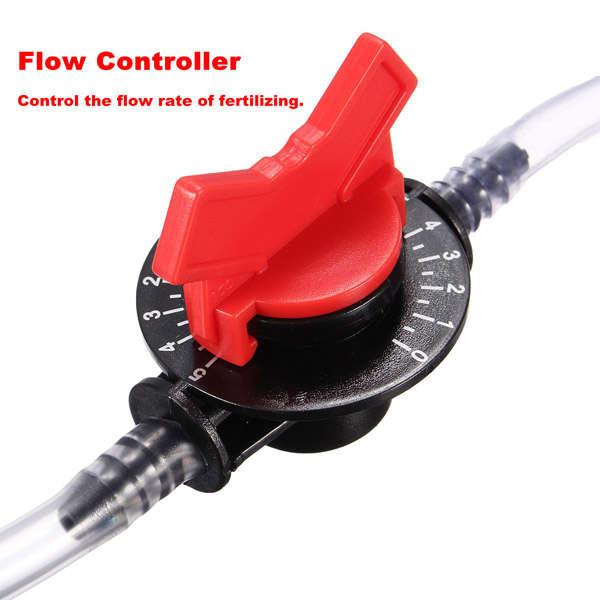

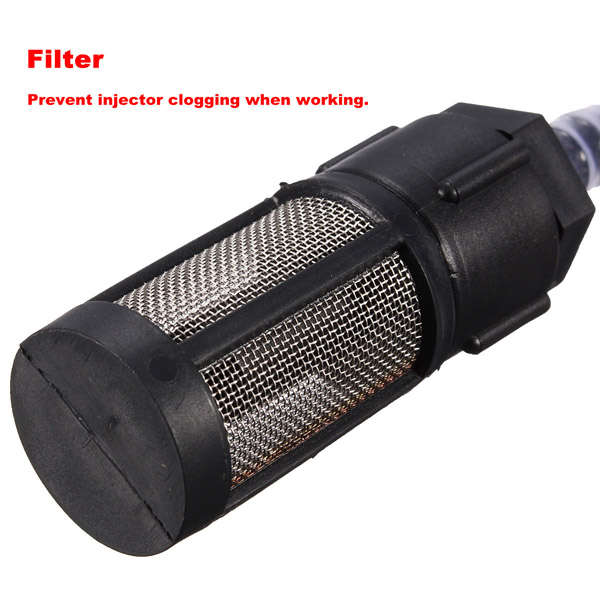

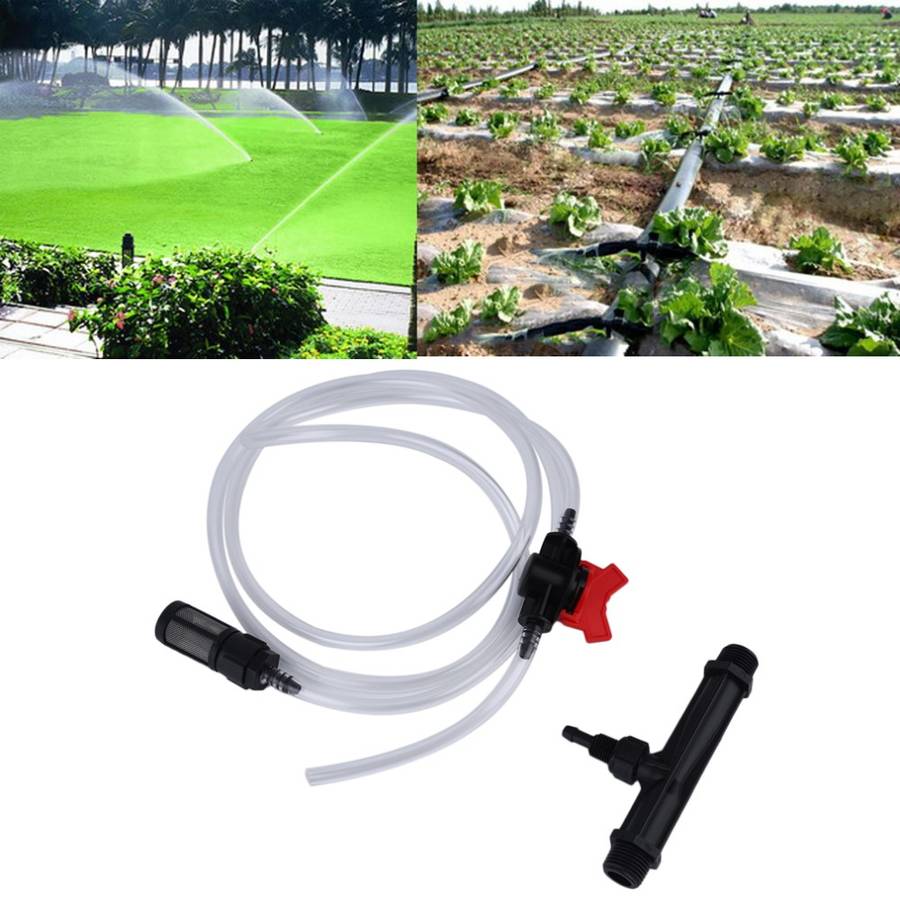

Includes a fertilizer injector, a piece of water tube, a flow controller and a filter

Specifications:

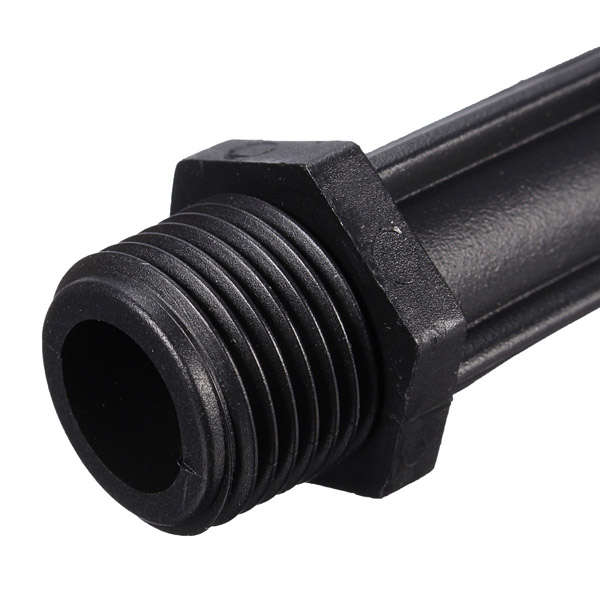

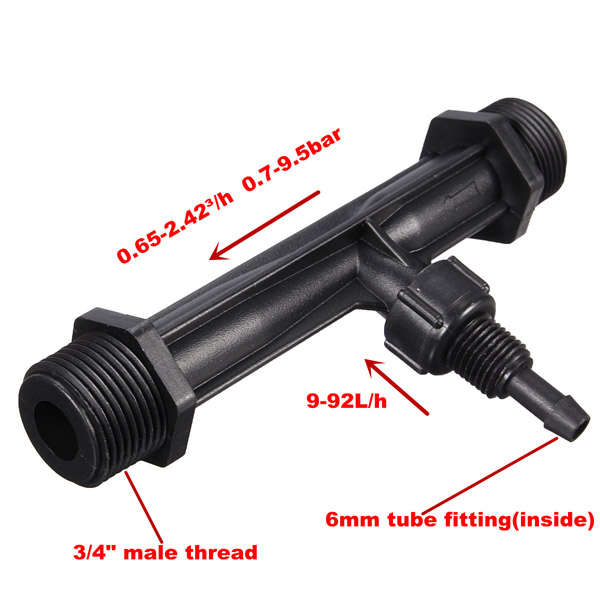

Inlet/outlet thread: 3/4''
Material: POM
Size:139*72*33mm
Tube length: Appr. 2.26m
Flow range: 0.65-2.42m³/h
Working Pressure: 0.7-9.5bar
Self-priming capability: 9-92L/h

Package include:
1 X 3/4" Irrigation Venturi Fertilizer Injectors
1 X Water Tube with Switch & Filter
