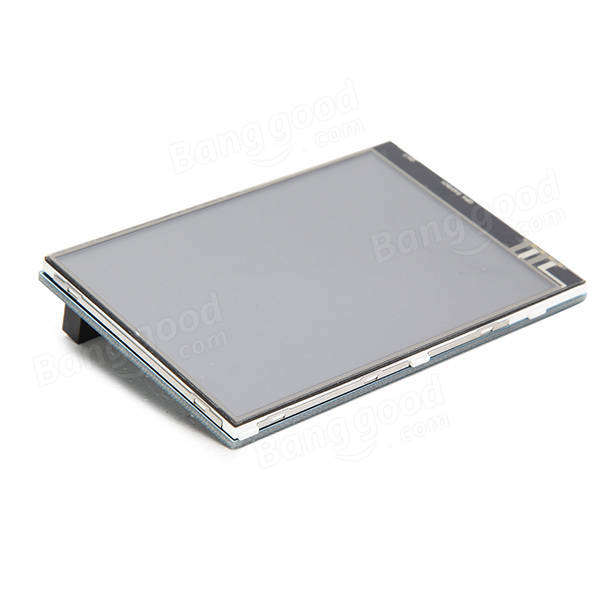

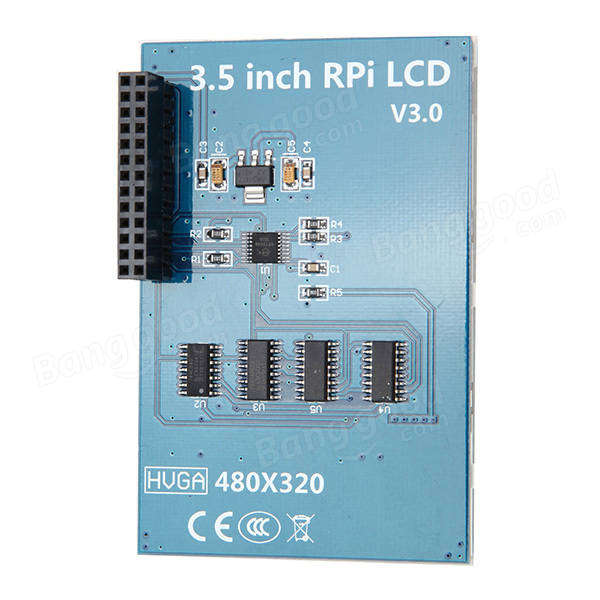

3.5 Inch 320 X 480 TFT LCD Display Touch Board For Raspberry Pi 2 Model B & RPI B+

( Due to the different batch,These board have two colors, Bule or Green, will be send in random, please note that before you buy it !!! )

Parameter:


LCD TypeTFT
LCD InterfaceSPI
Touch Screen TypeResistive
Touch Screen ControllerXPT2046
Colors65536
BacklightLED
Resolution320*480 (Pixel)
Aspect Ratio8:5
Power ConsumptionTBD
Backlight CurrentTBD
Operating Temp. (Centigrade)TBD

Interface Definition:

PIN NO.SYMBOLDESCRIPTION
1, 173.3VPower positive (3.3V power input)
2, 45VPower positive (5V power input)
3, 5, 7, 8, 10, 12, 13, 15, 16NCNC
6, 9, 14, 20, 25GNDGround
11TP_IRQTouch Panel interrupt, low level while the Touch Panel detects touching
18LCD_RSInstruction/Data Register selection
19LCD_SI / TP_SISPI data input of LCD/Touch Panel
21TP_SOSPI data output of Touch Panel
22RSTReset
23LCD_SCK / TP_SCKSPI clock of LCD/Touch Panel
24LCD_CSLCD chip selection, low active
26TP_CSTouch Panel chip selection, low active


Package included:

1 x 3.5 Inch 320 X 480 TFT LCD Display Touch Board ( Due to the different batch,These board have two colors, Bule or Green, will be send in random, please note that before you buy it!!! )

<


<
