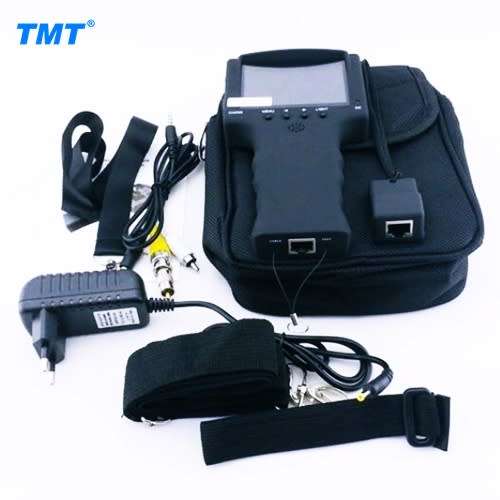

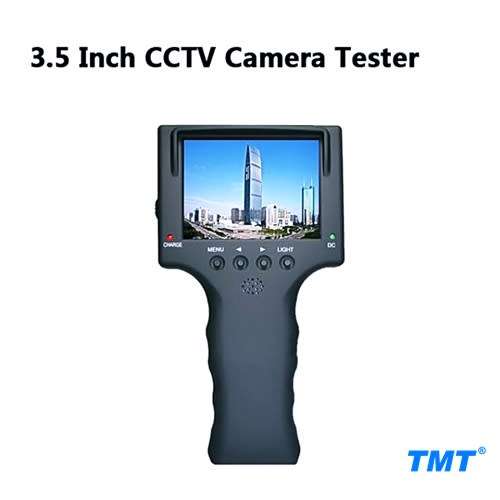

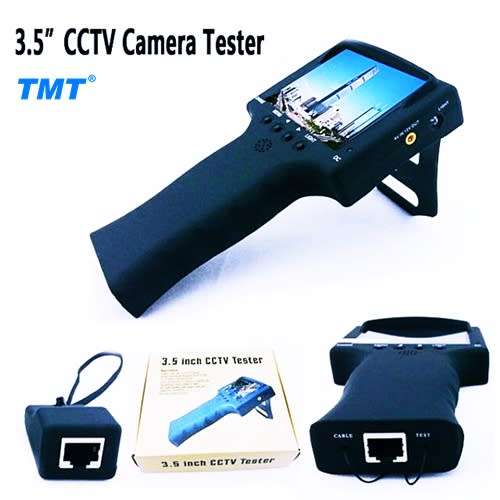

3.5 INCH AHD CCTV CAMERA TESTER 3 IN 1 NEW GENERATION TESTER
ANALOG CAMERA AND ANALOG HIGH DEFINITION (AHD)

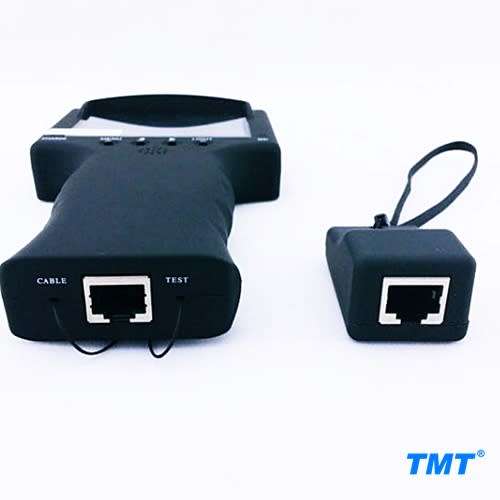

RG45 CABLING TESTER
LCD screen size 2,4 inch HD display
Max video solution -FHD (1920*1080)
Video format - AVI
This is a 3.5''TFT LCD CCTV Network video monitor tester, it is an ideal equipment for installing and inspecting engineering, can be widely used for camera testing, video cable transmit testing or network cable testing, easy to operate.
Features:
Best system equipment for installing and inspecting engineering. Built-in Li battery; video-in terminal and DC power supply. Palm size, easy to carry and operate.
Through DC power out enables user to inspect; correct camera or confirm installation. It's convenient for video equipment that helps communication and discussion with clients during installation process.
Application:

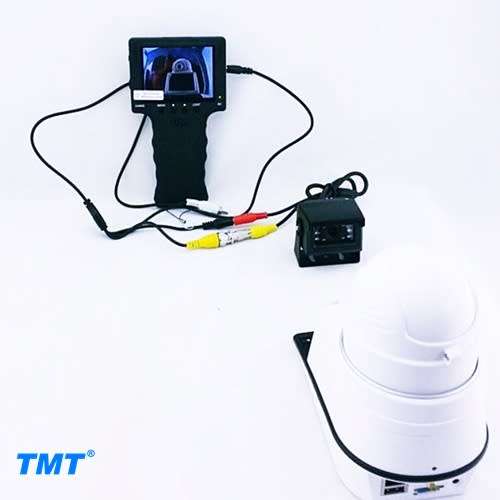

Monitor: Camera quality inspecting; image of installation correcting; inspect and repair of monitor system circuit…… etc.
Display
3.5''TFT Color LCD
IMAGE RESOLUTION
640X480

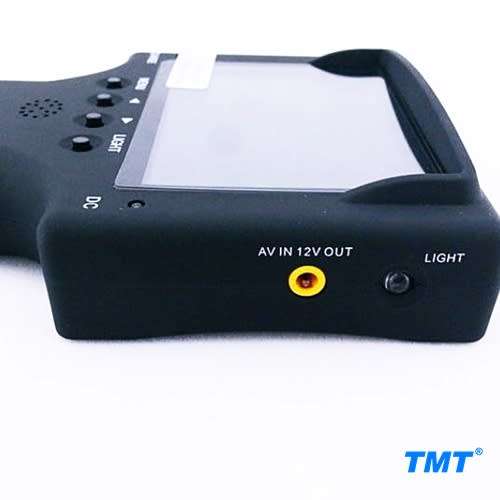

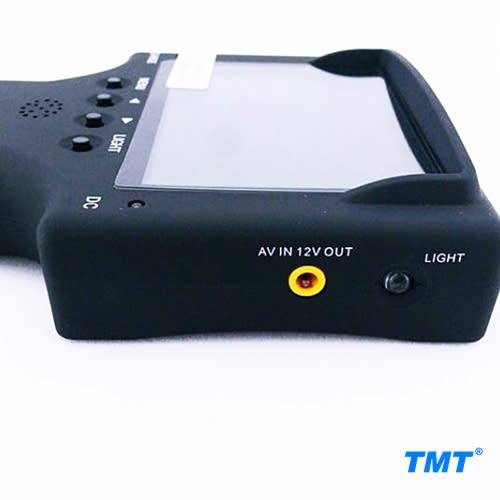

Video In
Video In × 1 (BNC connector)
POWER
OUT
DC power out × 1
(Support CCD camera of power source/
Max electric currency 400mAh)
System Format
NTSC / PAL
LIGHT INSTRUCTION
2 LED
(Power IND = Green / Charging IND =Red)
BATTERYSPECIFICATIONS
Built-in rechargeable Lithium battery : 3.7V 2000mAh
POWER SPECIFICATION
External power :DC 5V 1.0A Adapter
DIMENSION/ WEIGHT
180mm (L) x 98mm (W) x 30mm(H) / 250g
