3.5 Inch Car DVR Monitor with Wired Front Camera and Wireless Rear Camera - Weatherproof, Night Visi

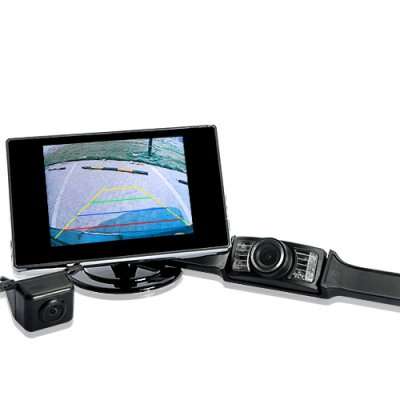

Car DVR that consists of a 3.5 Inch LCD Monitor, Wired Front Camera and a Wireless Rear Camera that is weatherproof and has night vision capabilities as well.

Introducing the all new car DVR, which not only comes with a 3.5 inch crystal monitor, but also with an excellent wired front and wireless rear camera, showing you anything hidden in your blind spots at the front or back of your car. This car DVR not only has a wireless rear view camera but also a front view camera, which increase the vision of the driver greatly to ensure that they can see as much as possible when maneuvering their vehicle. This well-designed system comes complete with a high quality 3.5 inch color LCD monitor and a wired front view camera and wireless rear view camera, giving you more confidence and peace of mind to safely position your car when navigating into tight parking spaces, parallel parking or simply reversing. Now, you can see everything behind and under the front part of your car, so you can avoid car accidents and costly car repairs. The wireless transmitter with a range of about 5 meters, which accompanies this product connects the rear view camera to the monitor while the front view camera is physcially wired to the monitor.

If you have trouble with parking, then this car accessory will be a great set of extra eyes and is the best choice for car safety and reverse driving. This car DVR has an IP64 waterproof rating therefore this product is also dust proof to that no ingress of dust can get in and it has complete protection against contact with dust. Also this car DVR is protected to a certain degree of water contact; and that splashing against the product from any direction shall have no harmful effect.

At a Glance...

• Wired Front camera and wireless back camera
• 3.5 inch monitor allows viewing of both cameras
• Automatic night vision for the rear camera
• Weatherproof Cameras

Manufacturer Specifications General

• Front Camera Recommended Maximum Range: 5 Meters
• Front Camera Waterproof Rating: IP64
• Front Camera Operation Temperature: -10 - +50 Degrees Celsuis

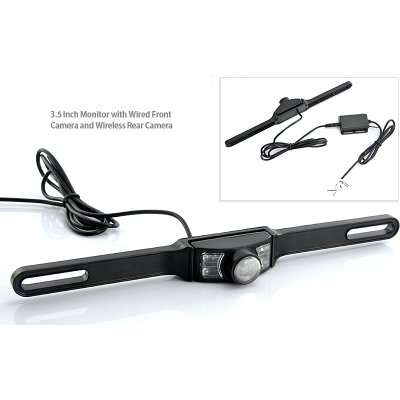

• Rear Camera Weatherproof Rating: IP65
• Rear Camera Operating Temperature: -30 - +80 Degrees Celsuis
• Power Source: DC12V

Display

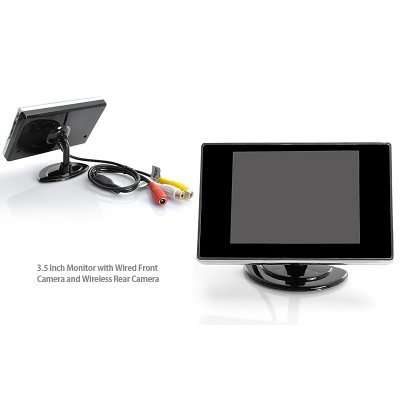

• Screen size: 3.5 Inch
• Resolution: 320x240
• Monitor Color System: Auto PAL/NTSC

Camera

• Front Camera Color System: PAL
• Front Horizontal Resolution: 420 TV Lines
• Front Camera Video Output: RCA
• Rear Camera Color System: PAL
• Rear Camera Horizontal Resolution: 380 TV Lines (628x582)
• Rear Camera Video Output: RCA to Wireless Connector
• White Balance: Auto

Lens

• Front Camera Image Sensor: 1/3 Inch CMOS (ov7949/7950)
• Front Camera Viewing Angle: 135 Degree Horizontal, 80 Degree Vertical
• Rear Camera Image Sensor: 1/4 Inch CMOS (PC1030)
• Rear Camera Viewing Angle: 120 Degree Horizontal, 80 Degree Vertical

Night Vision

• Front Camera Min Lux: 0.2 LUX
• Rear Camera Infrared Light: x4 LED IR 3 Meter Range
• Rear Camera Min LUX: 0.1Lux/F=1.2 (IR ON)

Ports

• RCA Port

Dimensions

• Monitor Dimensions: 105x70x12mm (L x W x D)
• Rear Camera Dimensions: 260x42x31mm (L X W X D)
• Power Cable Length: 1500mm
• Product Notes

• Rear view camera will automatically show when reversing. All other times the front view camera will show.
• Front camera doesn't include automatic nightvision.

Package Contents

• 3.5 inch Display (3m Tape at the Bottom)
• Front View Camera
• Rearview Camera
• Wireless Transmitter
• Front View Camera Power Cable
• Display Power Cable
• AV Cable
• Mounting Screws
