3.5" TFT Color LED Portable Test Monitor CCTV Camera Security Tester for Surveillance Audio Video Input

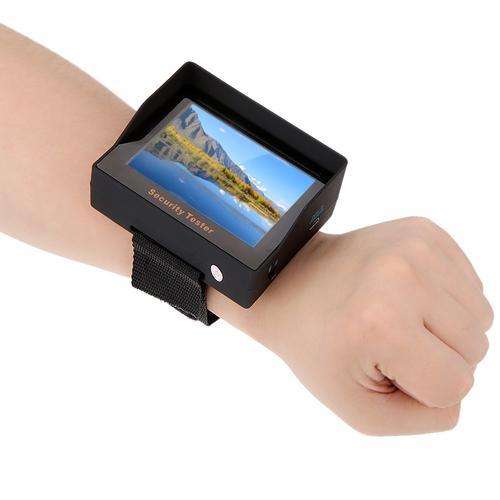

This security tester is designed for testing the surveillance camera. The security tester can be attached to the surveillance camera in site. Additionally, it could be used as a power supply of 12V temporarily. The wrist strap design is humanized for convenient use.

Features:
3.5-inch TFT LED display screen, automatically identify and adapt PAL/NTSC standard.
Adjustable brightness of screen, 5V USB charging and low power warning.
Audio and video input.
Built-in 3.7V 2200mAh Lithium battery, the work time can reach almost 8 hours.
12V 0.5A output power, can be used as a power supply for a camera temporarily.
Audio testing function, testing voice of the front end device is normal or not.
If there is no video, it would turn to sleep mode after 3 minutes then you can switch in video to wake it up.

Specifications:
Color: Black
Material: ABS
Screen: 3.5" TFT
Resolution: 320 * 240
Battery: 18650 DC3.7V 2200mAh Lithium battery
Power Consumption: ≤1W
Charger: AC 110-220V 5V/1000mA
Video Standard: PAL/NTSC
Video Input: 1.0Vp-p
Power Output: 12V/500mA
Audio: 0.7Vp-p
Working Temperature: 5¿¿~50¿¿
Wrist Strap Length: Approx. 26.5cm / 10.43in
Power Cable Length: Approx. 80cm / 31.5in
AV Cable Length: Approx. 115cm / 45.3in
Monitor Size: 90 * 70 * 40mm / 3.54 * 2.76 * 1.57in (L * W * H)
Monitor Weight: 150g / 5.3oz
Package Size: 19 * 9 * 6.5cm / 7.48 * 3.54 * 2.56in (L * W * H)
Package Weight: 347g / 12.26oz

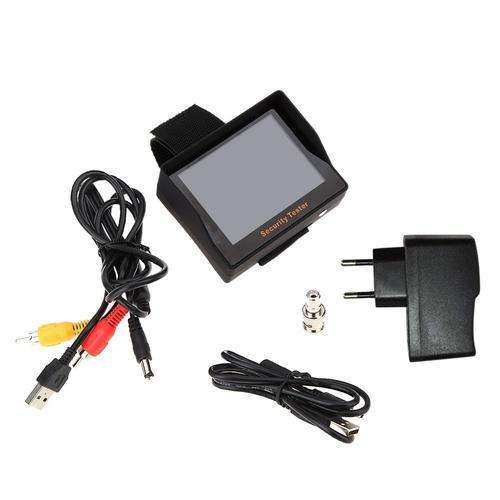

Package List:
1 * 3.5" Security Tester
1 * EU Plug Adapter
1 * Power Cable
1 * Wrist Strap
1 * AV/DC Cable
1 * BNC Converter
1 * User Manual (English)
