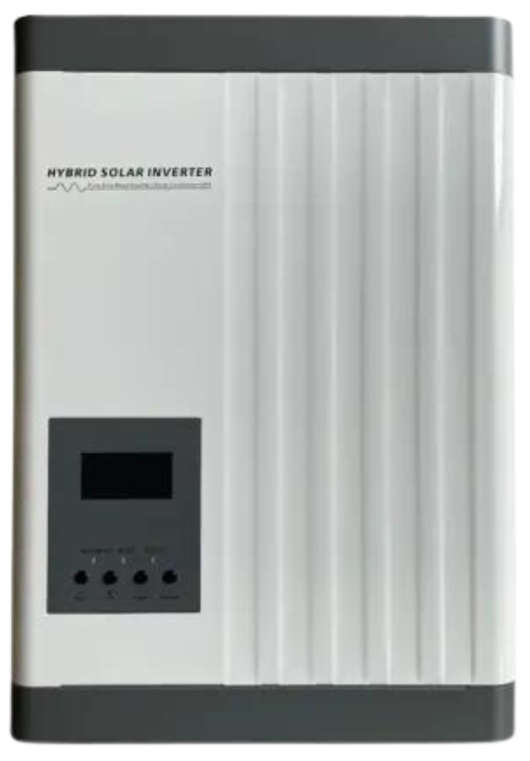

Introducing the 3.5KVA 24V MPPT Pure Sine Wave Solar Inverter, a powerful and versatile inverter/charger that combines the functions of an inverter, MPPT solar charger, and battery charger. With a compact and portable design, it offers reliable and uninterruptible power support for all your needs.
The comprehensive LCD display allows for easy user-configurable button operations such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications. It also features a configurable input voltage range for home appliances and personal computers via LCD setting, as well as a configurable AC/solar charger priority via LCD setting.
The 3.5KVA 24V MPPT Pure Sine Wave Solar Inverter -3524 24V is compatible with mains voltage or generator power and has an auto restart function while AC is recovering. It also includes overload and short circuit protection and a smart battery charger design for optimized battery performance. Additionally, it comes with a cold start function.
The inverter mode provides a rated power of 3500VA/3000W, with a DC input of 24VDC, 60A and an AC output of 230VAC, 50Hz, 13A. The AC charger mode has an AC input of 230VAC, 50Hz, 15A, a DC output of 27VDC, 10-60A, and an AC output of 230VAC, 50Hz, 13A. The solar charger mode offers a rated current of 60A, a system voltage of 24VDC, a min. solar voltage of 30VDC, a best Vmp range of 30-105VDC, and a max. solar voltage of 105VDC.
The package includes one 3.5KVA 24V MPPT Pure Sine Wave Solar Inverter 3524 24V. Don't settle for unreliable power sources, invest in the VZ-3524ML-FS and enjoy uninterrupted power support with ease.
Features: 3.5KVA 24V MPPT Pure Sine Wave Solar Inverter -3524 24V
Compatible with mains voltage or generator power
Auto restart while AC is recovering
Overload and short circuit protection
Smart battery charger design for optimized battery performance
Cold start function
Specifications:
Inverter Mode:
Rated Power; 3500VA/3000W
DC Input; 24VDC,145A
AC Output; 230VAC, 50Hz, 13A
AC Charger Mode:
AC Input; 230VAC, 50Hz, 15A
DC Output; 54VDC, 10-60A
AC Output; 230VAC, 50Hz, 13A
Solar Charger Mode:
Rated Current; 60A
System Voltage; 24VDC
Min.Solar Voltage; 30VDC
Best Vmp Range; 60-105VDC
Max.Solar Voltage; 105VDC
What's in the box
1 X 3.5KVA 24V MPPT Pure Sine Solar Inverter -3524 24V
12 months warranty
