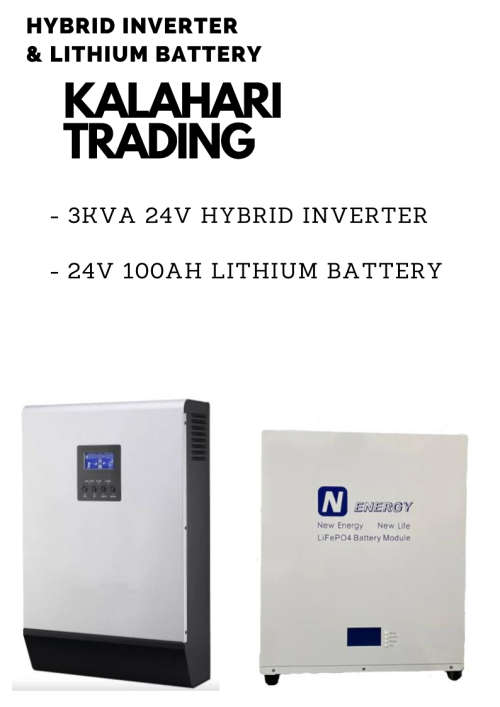

3,5KVA 24V Pure Sinewave Hybrid Inverter & 25,6V Lithium Battery
Pure Sinewave Inverter & UPS
Built in PWM Solar Charge Controller
Overload and short circuit protection
Cold start function
Auto 50A Built In Charger
Colour may vary
Lithium Iron Phosphate Battery LiFePO4 25.6V 2.56KWh 80ah
Specifications:
Electrical Characteristics
Nominal Voltage: 25.6V
Energy: 2.56KWh
Charge Efficiency: 100% at 0.2C
Discharge Efficiency: 96-99% at 0.5C
Self Discharge, 1 month: <3%
Charge Parameters
Charge Mode: Constant charge at 0.2C to 28.0V
Charge Current: 20A
Maximum Charge current: 40A
Charge cut off Voltage: 28.0V±0.2V
Discharge Parameters
Maximum Continuous Current:50A
Peak Current: 80A
Discharge Cut-off Voltage: 21.6V
Environment
Charge Temperature: OºC to 45ºC
Discharge Temperature: -20ºC to 60ºC
Storage Temperature: 0º to 40º C
Mechanical Specifications
Cell Material: LiFePO4
Case: Metal (Black or White)
Mass: 25kg
Connector: Barner Terminal or Anderson 175A
Design Life: 10 Years: 25ºC
Cycle Life: 3000 Times: 80% DOD
Protection: BMS: Over charge, Over discharge. Over current, Short current, Cell balancing.
Display: LCD: With a LCD display screen
