Inverter
3.5KVA/3500W 100A Pure Sine Wave Solar Inverter
Features
- Pure Sine Wave Solar Inverter
- Output Power Factor 1
- High PV Input Voltage Range (120VDC - 500VDC)
- Built-in 100A MPPT Solar Controller
- Supports Multiple Output Priority: UTL, SOL, SBU, SUB
- Parallel Operation with Up to 12 units (Parallel Version)
- Supports Parallel Operation in Single Phase/ 3 Phase (Parallel Version)
- Supports Wireless Parallel, Without Extra Sharing of Current Cable
- RS485 Communication for BMS
- Wifi Monitoring
- Battery Equalization Function to Optimise Battery Performance and Extended Lifecycle
Specifications:
Inverter Mode
- Rated Power: 3500VA / 3500W
- DC Input: 24VDC, 158A
- AC Output: 230VAC, 50/60Hz, 23.5A
AC Charger Mode
- AC Input: 230VAC, 50/60Hz, 23.5A
- DC Output: 27VDC
- Max. Charge Current(AC): 60A Default 30A
- Max. Charge Current(PV+AC): 100A
- AC Output: 230VAC, 50/60Hz, 15.2A
Solar Charge Mode
- Max. PV Array Power: 4000W
- Min. Solar Voltage: 120VDC
- Max. Solar Voltage (VOC): 500VDC
- Max. MPPT Charge Current: 100A
Ingress Protection: IP21 (Indoor Use)
Dimensions ; 38 x 55 x 20 cm
Weight: 9.65kg
Battery
25.6V 100Ah lithium iron battery designed for Inverters and UPS solar systems.
The obvious lead replacement solution a new world of longevity and performance awaits for wide ranging applications from alarm and gate motors to high end boat and camper energy storage. Also suitable for small solar integrated and backup systems
Features
-The 25.6V 100Ah Lithium iron battery is designed for UPS, solar system, portable devices, energy storage and medical
cart applications.
- Last two to four times longer than a lead acid battery.
- Boasts advantages on safety, cycle life, energy density,
temperature range and environmental protection.
Advantages:
- Packed with high performance, long life, safety, and wide temperature range
- High energy density, small size, light weight, no pollution;
- High efficiency, fast charging
- Easy to carry battery case ,
- 10 years design life, Stable performance, maintenance-free
Direction for use:
Charge using the positive and negative ports to connect to your inverter and charge on these ports.
Specifications:
- Energy storage: 2560WH
- Output Voltage: 25.6VDC
- Rated capacity 100ah
- Bulk Absorbtion Rate: 28.4 - 29.2V
- Equalize Voltage: 28.8VDC
- Float Charge: 27.2VDC
- Max Discharge current 100A
- Max Charge current 100A
What's in the box

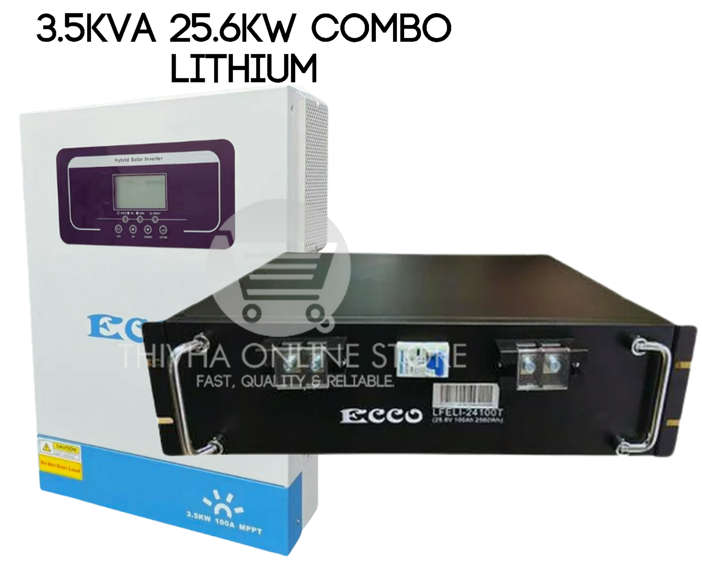

1 x ECCO 3.5KVA/3500W 100A Pure Sine Wave Solar Inverter
1 x Ecco LIFeLi-24100 -25.6V 100ah Lithium Ion Battery
