3.5KVA 3500W ECCO Plug And Play MPPT Hybrid Solar-Ready Inverter + 2x 100Ah Deep Cycle Batteries
Reliable Backup Power System for Homes
Introducing the 3.5kVA ECCO Hybrid Inverter System, a robust and portable solution for uninterrupted power. This solar-ready system is designed for modern households, ensuring your essential appliances stay powered during outages.

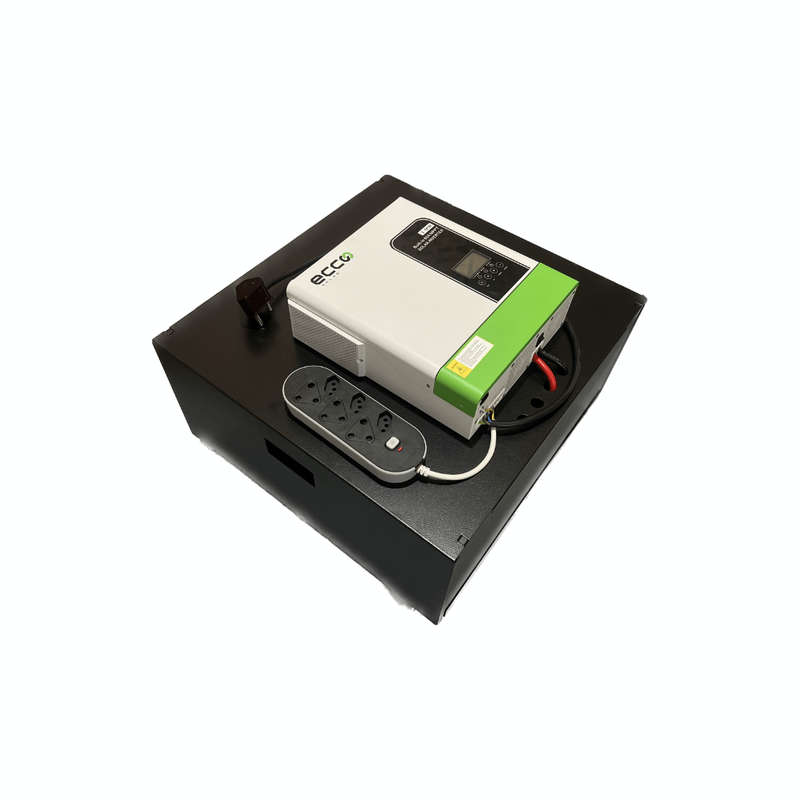

3.5KVA / 3500W 24V ECCO Hybrid Inverter Plug & Play System + 2x 100AH Deep Cycle Gel Batteries
What is an all-in-one portable inverter system and what does it do?
It is an inverter unit connected to a battery that provides power when there is load shedding. It will charge your battery once the power is on. As soon as load shedding hits, your inverter system instantly transfers over to battery power. This will allow you to keep your lights, TV, computers, chargers, and wifi running during load shedding. Solar ready : Add a solar panel and charge your batteries when there is no power.
This 3.5KVA Plug-and-Play Power System is designed for homes, offices, and small businesses that require a portable and efficient backup power solution. It is available in Deep Cycle Gel and Lithium Battery configurations, offering versatility based on power needs.
Key Features & Benefits
Portable Design Compact steel box with lock wheels for easy mobility
Long Backup Time Power essential appliances (TV, WiFi, lights, etc.) for up to 30 hours on a single charge (Lithium model)
Pure Sine Wave Inverter Ensures a stable power supply for sensitive electronics
Smart MPPT Solar Charging 30% more efficient than PWM controllers, optimizing solar energy usage
Battery Equalization Technology Extends battery life by preventing imbalances in charge cycles
Power Backup Estimation
With 2x 100Ah 12V Gel Batteries, a 100W load will last approximately 5-6 hours before the batteries reach 50% depth of discharge (DoD).
If you fully discharge the batteries (not recommended), the backup time would be +-10 hours, but this would significantly reduce battery lifespan.
(Battery performance depends on usage and load.)
What's Included
1x 3.5KVA Hybrid Inverter (Pure Sine Wave / MPPT 100A / 24VDC / WiFi Optional)
1x Portable Steel Box with 2 Lock Wheels
1x Surge Plug with 1m Power Cable (2.5mm Cabtyre)
1x Double-Sided Female Plug Socket
1x Fuse & Disconnector (Battery to Inverter)
2x 12V 100AH Gel Battery
1x User Manual
Optional Add-On: WiFi Dongle for Remote Monitoring & System Control
Technical Specifications
Hybrid Inverter (3.5KVA, 3500W, MPPT 100A)
- Rated Power: 3,500W / 3.5KVA
- AC Output Voltage: 230V AC, 50/60Hz
- Battery Voltage: 24VDC
- Max Solar Input Voltage: 500VDC
- MPPT Range: 120V 500VDC
- Max PV Array Power: 4,000W
- Max MPPT Charge Current: 100A
- Max AC Charge Current: 60A (Default: 30A)
- Max Charge Current (PV + AC): 100A
- Efficiency: 94%
- Surge Power: 7,000W
- Ingress Protection: IP21 (Indoor Use)
Battery Specifications
Deep Cycle Gel Battery (2x 12v 120Ah= 24VDC)
- Low maintenance & spill-proof
- Optimized for backup power systems
- Supports multiple charge/discharge cycles
- Resilient to high temperatures
- Designed for solar applications
Lithium batteries last 2-4X longer than lead-acid alternatives, making them the preferred choice for long-term power backup.
Physical Dimensions & Weight
- Portable System Size: 60cm x 60cm x 45cm
- Inverter Dimensions: 38cm x 55cm x 20cm
- System Weight: Approx. 45kg (Lithium Model) / 55kg (Gel Model)
- COURIER AT OWN RISK
Ideal Applications
Home & Small Business Backup Power Stay powered during load shedding and outages
Solar & Renewable Energy Storage Works efficiently in off-grid and hybrid systems
Portable Outdoor Power Supply Use for camping, outdoor work, and emergency situations
UPS & Surge Protection Protects sensitive electronics & appliances from power failures
Why Choose This Power Solution?
Plug-and-Play Convenience Ready-to-use portable power system with wheels
Uninterrupted Power Supply Fast switch-over (10ms) ensures no downtime
Smart Battery Management MPPT charging, deep cycle protection, and lithium compatibility
Solar-Ready System Compatible with existing solar panel setups
High-Quality Components Built for long-lasting performance and reliability
Installation & Warranty Guidelines
Professional Installation Recommended To ensure optimal performance and safety, installation by a qualified electrician is advised.
Warranty Coverage:
- Inverter Warranty: 5 Years
- Gel Battery Warranty: 90 day replacement
Warranty Conditions: - A valid Certificate of Compliance (COC) must be issued upon installation.
- Improper installation, electrical surge damage, or non-compliance with standards will void the warranty.
- Warranty claims must include installation photos and proof of installation by a certified professional.
Optional Add-Ons
WiFi Dongle for Remote Monitoring Track power usage & battery performance in real-time via a mobile app.
Solar ...
