3.5Kw 25.6Vdc 1Ph Inverter & 5.12Kwh battery All in one SRNE

New 18 were available
Indicative market price: R45,455.00
R38,999.00
14% off
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Buyer protection

Product details

Condition
New
Location
South Africa
Product code
7552773718216_42695980941512
Bob Shop ID
596682377

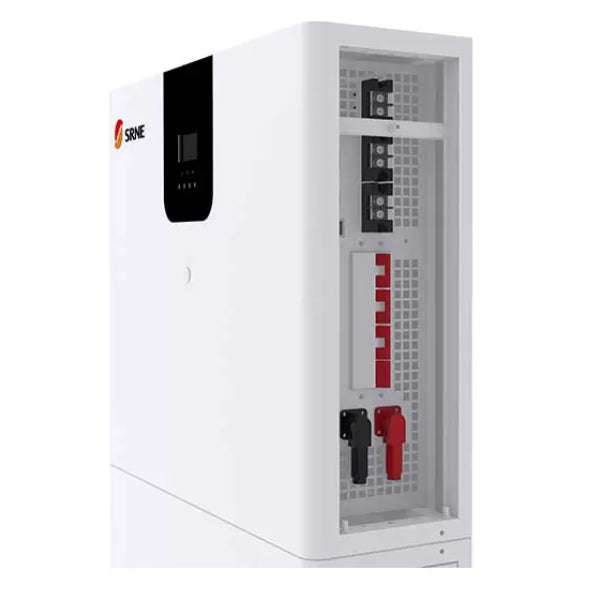

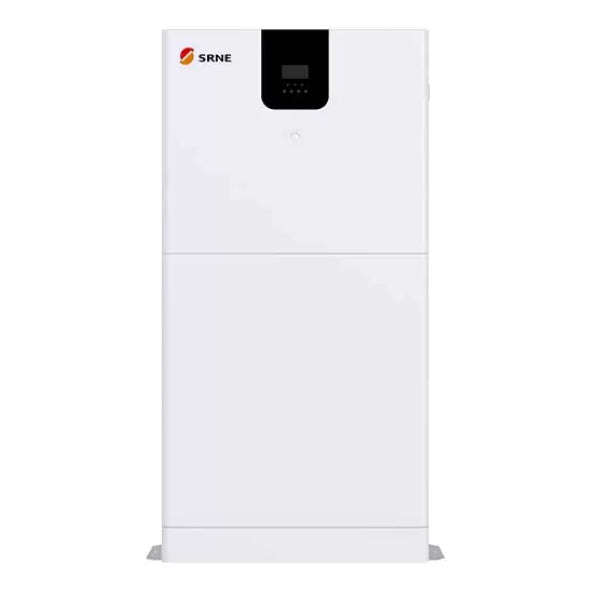

3.5KW 25.6VDC 1PH 5.12KWH ESS C/W INV. AND LIFEP04 BATTERY SRNE

General Data
• Package Model: SR-EOV24-5.0S-S1
• Long Life: 5000 Cycles @ 80% DOD
• Easy To Install & Use
• Multiple Working Modes
• Fast & Flexible Charging
• Scalability: Up to 4 Batteries In Parallel



Description

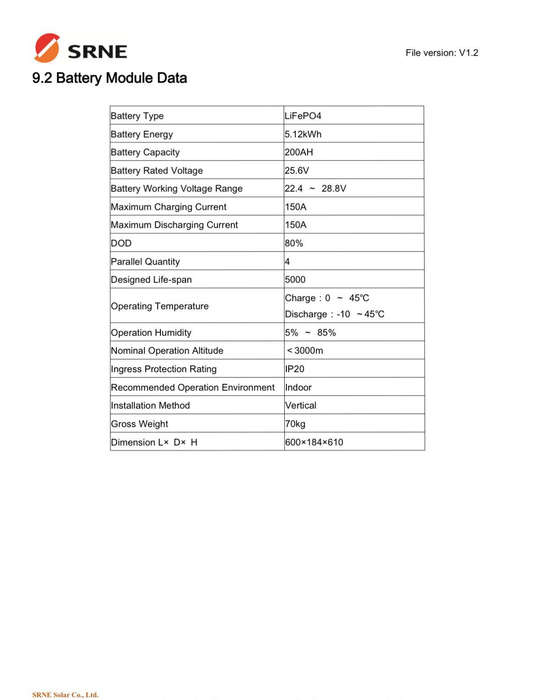

Battery Technical Specification
• Battery Model: SR-EOV24-5.0A-E1
• Number Of Batteries: 1
• Battery Energy: 5.12KWH
• Battery Capacity: 200AH
• Weight: 100Kg
• Dimension: 1190mmL x 600mmD x 184mmH
• Battery Type: LiFePO4
• Battery Rated Voltage: 25.6V
• Battery Working Voltage Range: 22.4VDC — 28.8VDC
• Maximum Charging Current: 150A
• Maximum Discharging Current: 150A
• DOD: 80%
• Designed Life Span: 5000 Cycles

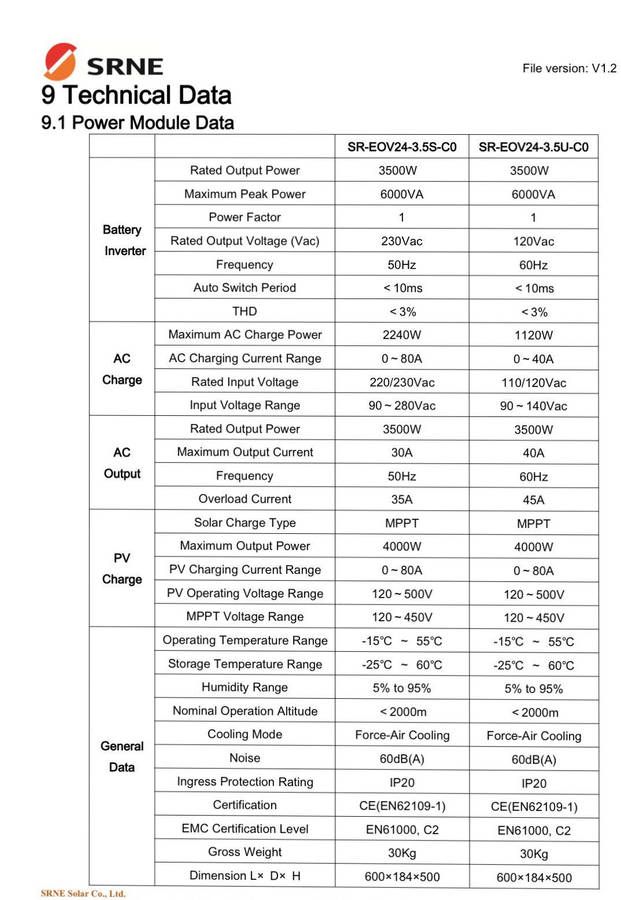

Inverter Technical Specification
• Inverter Model: SR-EOV24-3.5S-C1
PV Charge
• Solar Charge Type: MPPT
• Maximum Input Power: 4000W
• PV Charging Current Range: 0A-80A
• PV Operating Voltage Range: 120VDC-500VDC
• MPPT Voltage Range: 120VDC-450VDC
AC Charge
• Maximum Charge Power: 2240W
• AC Charging Current Range: 0A-80A
• Rated Input Voltage: 220VAC-230VAC
• Input Voltage Range: 90VAC-280VAC
AC Output
• Rated Output Power: 3500W
• Maximum Output Current: 30A
• Frequency: 50Hz
• Overload Current: 35A
Battery Inverter Output
• Rated Output Power: 3500W
• Maximum Peak Power: 6000VA
• Power Factor: 1
• Pated Output Voltage: 230VAC
• Frequency: 50Hz
• Auto Switch Period: <15ms

Environment Limit
• Communication: RS485 / CAN / WIFI
• Charging Temperature Range: 0°C to 45°C
• Discharging Temperature Range: -10°C to 45°C
• Operation Humidity: 5% to 85%
• Cooling Mode: Force-Air-Cooling @ 60bB
• Ingress Protection: IP20
• Operation Environment: Indoor
• Installation Method: Vertical
• Safety Certification: UN38.3,MSDS,EN55032,EN55024,EN61000-3-2,EN61000-3-3
