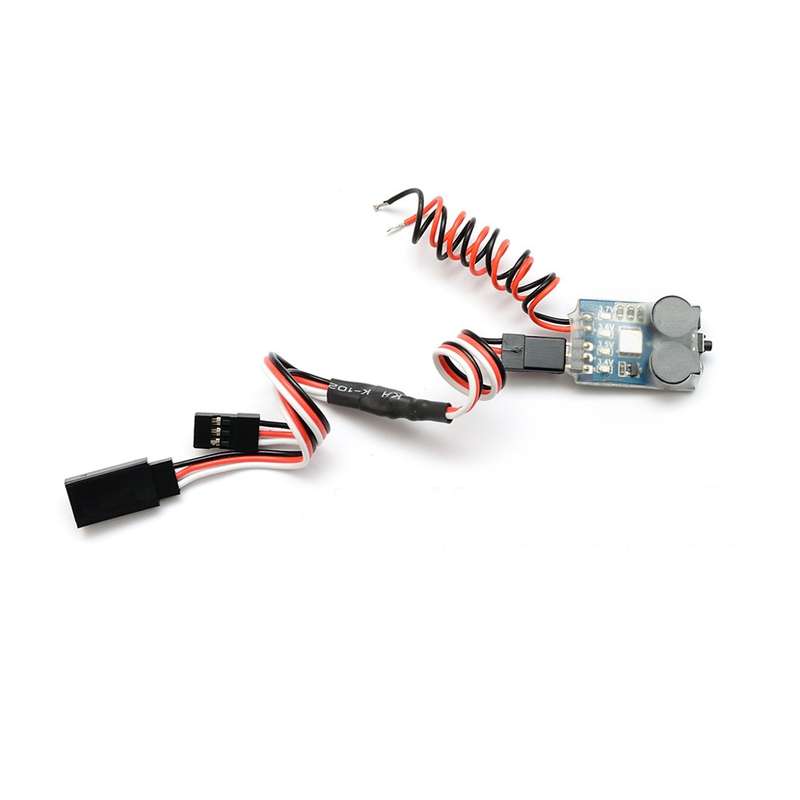

3 in 1 2-6S RC Lipo Battery Voltage Meter Monitor Tester a??
Signal Loss Alarm & Loss Aircraft Finder & Low Voltage Buzzer a??
DIY for RC Models Description This is a 3in1 LiPo Battery monitor, Discovery buzzer & Signal loss alarm functions. Built-in ultrahigh brightness LED & twin loud buzzers. Item Name: Signal Loss Alarm Loss Aircraft Finder Working voltage: 5.2-26V DC, 2-6Cells LiPo Standby current less than 10mA Working current, Max 120mA (blinking & beeping) Voltage threshold setting: 3.4-3.7V/cell (Red LED) Twin loud buzzers, 85db each Ultrahigh Brightness LED, 20lm, 0.2w, Blue
Features Suit for fixed-wing copters, helicopters, multicopters, RC cars, etc With Battery monitor function Long press 3 seconds to enter the voltage threshold setting; short press to select voltage threshold value between 3.4-3.7V (red led indicate); 10 seconds with no operation, will auto save the current setting. If the total voltage is below the holding value X cell, the alarm will continue to beep and flash blue until the voltage reaches or exceeds the set value.
With Discovery buzzer function Only plug the Y cable wire to Aux channel of receiver to enable the function;? Available signal of receiver is a must , the alarm is started by manual;
With Signal loss alarm function Firstly turn on the transmitter, and plug the alarm to reciever throttle channel with? Y cable wire, then turn on the receiver. This function is auto start. When the receiver is power on, the alarm will auto start in following situations : Turn off the transmitter,and do not turn on it in 1 minute, so that the reciever receive no signal. Transmitter is on, but no joystick action has been detected in 1 minute, or unchanged signal. It continue to beep in bibi...bibi...bibi, and flash blue
Package Included 1 x 3 in 1 Signal Loss Alarm Loss Aircraft Finder 1 x Y cable wire
