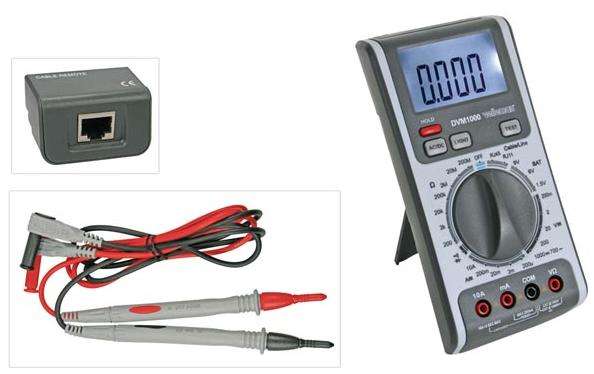

3-In-1 Multimeter - Cable / Line Tester

Features

• the digital 3 in 1 multitester combines the functions of a multimeter, a phone line tester and a network cable tester
• 2 000 counts LCD display with automatic polarity indication
• data hold function
• continuity and diode test
• white backlight
• battery test: 1.5 / 6 / 9V
• telephone line test
• network cable test (RJ45)


Specifications

• DC voltage: 0,2V / 2 / 20 / 200 / 1000V
  • basic accuracy: ±( 0.8% of rdg + 2 digits) , ±(1.2% + 3digits) for 1000V range
  • input impedance: > 10Mohm
  • maximum input: 1000V
• AC voltage: 0,2V / 2 / 20 / 200 / 700V
  • basic accuracy: ±( 1,2% of reading + 3 digits) for 0.6V range , ±(0,8%+3digits) for 2/20/200V range , ±(1,2%+5digits) for 700V range
  • input impedance: > 10Mohm
  • frequency range: 40-400Hz
  • maximum input: 700V
• DC current: 200uA / 2m / 20m / 200m / 10A
  • basic accuracy: ±( 0,8% of reading + 3 digits) for 200u / 2mA / 20mA range , ±(1,5%+2digits) for 200mA range , ±(2%+5digits) for 10A range
  • overload protection: 200mA/250V fuse for all ranges except 10A
• AC current: 200uA / 2m / 20m / 200m / 10A
  • basic accuracy: ±( 2% of reading + 3 digits) for 200u / 2mA / 20mA range , ±(1,8%+3digits) for 200mA range , ±(3%+5digits) for 10A range
  • overload protection: 200mA/250V fuse for all ranges except 10A
• resistance: 200 / 2k / 20k / 200k / 2M / 20M / 200M
  • basic accuracy: ±( 0,8% of reading + 3 digits) for 200 Ohm range , ±(0,8%+2digits) for 2K...20M range , ±(5%+10digits) for 200Mohm range
  • overload protection: 250Vdc or 250Vrms
• capacitance: -
  • accuracy: -
• inductance: -
  • accuracy: -
• frequency: -
  • basic accuracy: -
  • overload protection: -
• temperature: -
  • basic accuracy: -
• overrange: yes "1."
• continuity buzzer: yes
• transistor test: no
• diode test: yes
• low-battery indication: yes
• maximum display: 1999
• LCD display size: 15mm
• ranging mode: manual
• data hold: yes
• backlight: yes
• dimensions: 85 x 185 x 45mm
• weight (with battery): ±360g
• power supply: 9V battery (incl.)
• packing: -
• accessories: user manual / test leads / battery / remote box for cable testing
• auto power-off: no
