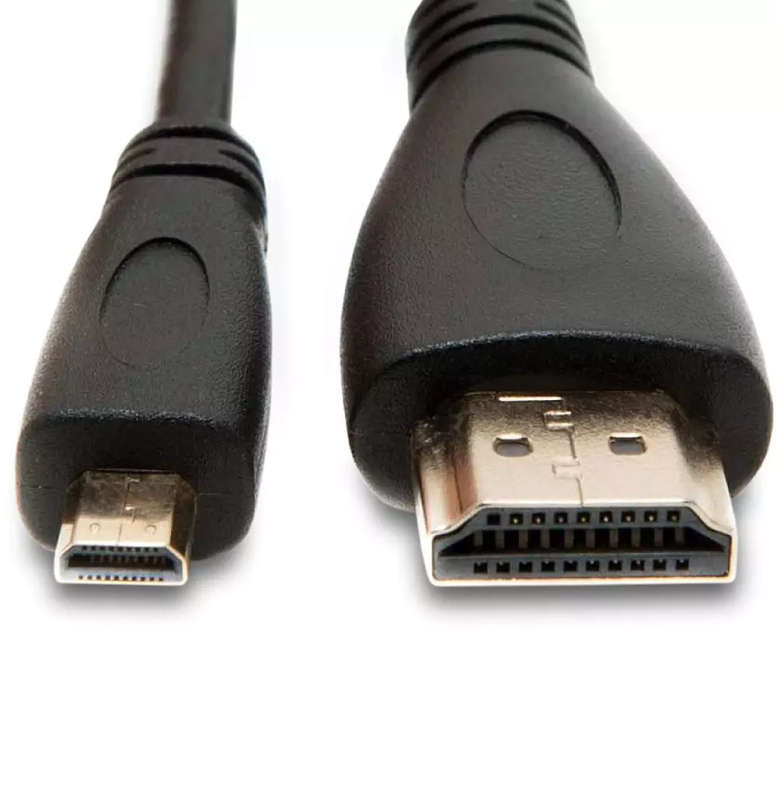

3 Meter Micro HDMI (Type D) to Standard HDMI Cable 4k Ultra HD | Raspberry PI HDMI Cable
In addition to the Type A (Standard HDMI) and Type C (mini-HDMI) connector types already defined in previous versions of the HDMI standard, the HDMI 4k Ultra HD specification introduces a new "Type D" connector designed for cell phones, pocket cameras, and other portable devices where space is at a premium. Roughly the size of a Micro USB connector, it packs all the power and functionality of an HDMI link into a tiny form factor. Featuring a full nineteen-pin array like other HDMI connectors, the HDMI Micro Connector can handle video signals up to 1080p, bringing state-of-the-art HD resolutions to the realm of handheld devices. This new connector is approximately 50% smaller than the size of the existing HDMI Mini Connector.
This cable will allow you to connect your portable device / HD Video Cameras with a micro-HDMI connector to the standard HDMI connector (type A) found on most televisions / LCD's / Plasmas and A/V receivers.
Specifications & Features
- Connector Type: HDMI Micro male to HDMI male
- Connector Finish: Gold
- Gauge: 19AWG
- Number of conductors: 19
- Supported Resolutions: 480i to 1080p
- HDMI Certified: Yes
- HDMI Spec: 1.4
- HDCP Compliant: Yes
- CEC Compliant: Yes
- ROHS Compliant: Yes
A technical guide on how to choose HDMI Cables & Equipment is available at Choosing the Correct HDMI Cables and HD Distribution Equipment. If you are not sure which items to purchase please send us an e-mail with requirements using the Contact form on the left under the Information section and we will select the correct products for you based on your requirements. Please check the HDMI Standards & Specifications section on our website to check what the different versions in HDMI offers regarding picture, sound quality, resolution, color quality etc.
HDMI CABLES AND EQUIPMENT SHOULD NEVER BE CONNECTED / DISCONNECTED WHILE YOUR EQUIPMENT IS POWERED ON SINCE THE HDMI PORT CARRIES A LOW VOLTAGE BUT CAN CAUSE DAMAGE TO EQUIPMENT WHEN PLUGGED / UNPLUGGED WHILE POWERED ON. The sequence below should be followed when installing new cables or equipment between source/player and LCD / Plasma.
1.) Power-off all equipment (At the wall socket).
2.) Connect all Cables, Splitters, Switches, Extenders within HDMI Distribution Network.
3.) Power on all Splitters, Switches, Extenders within HDMI Distribution Network.
4.) Power on all LCD / Plasma's and set to HDMI input from HDMI Distribution Network.
5.) Power on Sources / Players (Sources negotiates HDCP Handshake via HDMI Network to displays which is set to HDMI input to respond to handshake).
Compatible devices (and all other micro-HDMI Devices not limited to list below)
LG:
- LG Revolution / VS910
- LG Thrill 4G
- LG Revolution,
- LG G-Slate,
- LG Esteem,
- LG Revolution,
- LG Thrill 4G,
Motorola:
- Motorola ATRIX 2
- Motorola ATRIX 4G
- Motorola ATRIX HD
- Motorola DROID 3, DROID 4
- Motorola DROID Bionic (XT875)
- Motorola DROID RAZR (XT912)
- Motorola DROID RAZR HD
- Motorola DROID RAZR MAXX
- Motorola DROID RAZR MAXX HD
- Motorola DROID X
- Motorola DROID X2
- Motorola Electrify
- Motorola Electrify 2
- Motorola Photon 4G
- Motorola Photon Q 4G LTE
- Motorola Triumph
- Motorola XOOM
- Motorola Milestone X,
Samsung:
- Samsung DROID Charge (SCH-i510)
- Samsung Galaxy S Aviator (SCH-R930)
- Samsung Galaxy S Lightray 4G (SCH-R940)
- Samsung ES70,
- Samsung PL150,
- Samsung ST5500,
- Samsung ST5000,
- Samsung TL500,
- Samsung WD650,
- Samsung WD650
- Samsung Droid Charge,
- Samsung Galaxy S Aviator,
- Samsung Galaxy S Lightray 4G,
Other:
- Sony Ericsson Xperia Arc
- Sony Xperia Ion
- Toshiba Thrive 7
- Olympus SP-800UZ,
- Olympus Stylus 9010 / mju 9010,
- Sprint EVO,
- Fuji FinePix F80EXR,
- Amazon Kindle Fire
- Amazon Kindle Fire HD,
- Amazon Kindle Fire HD 8.9,
- BlackBerry Play Book
- BlackBerry Z10
- HTC EVO 4G
- HTC EVO View 4G (HTC Flyer)
- Pantech Element
- T-Mobile G2x / LG Optimus 2X / LG P999
- Pantech Element,
- T-Mobile G2x,
- T-Mobile Spring Board
- ZTE Anthem 4G
