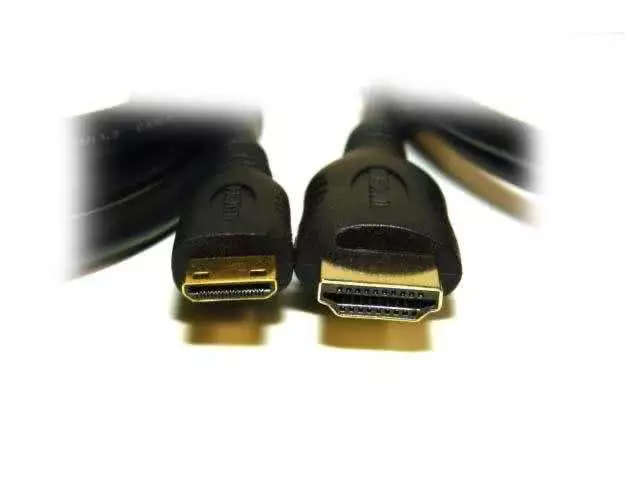

This cable will allow you to connect your portable device / HD Video Cameras with a mini-HDMI connector (Type C) to the standard HDMI connector (type A) found on most televisions / LCD / Plasmas and A/V receivers.
Connector Type: HDMI male to HDMI male
Connector Finish: Gold
Gauge: 30AWG
# of conductors: 19
Supported Resolutions: 480i to 4k Ultra HD
HDMI Certified: Yes
HDMI Spec: 1.4
HDCP Compliant: Yes
CEC Compliant: Yes
ROHS Compliant: Yes
A technical guide on how to choose HDMI Cables & Equipment is available at Choosing the Correct HDMI Cables and HD Distribution Equipment. If you are not sure which items to purchase please send us an email with requirements using the Contact form on the left under the Information section and we will select the correct products for you based on your requirements. This item conforms to the HDMI v1.3 specifications described in the section. In general for Blu-ray HDMI v1.0 is required as a minimum and for PS3 / Xbox 360 HDMI v1.2 is recommended as a minimum. HDMI v1.3 exceeds both HDMI v1.0 and v1.2 specifications.
HDMI Mini (type C) connectors are the new (from Nov 2007) high definition standard for connecting HDMI equipped portable devices such as high definition camcorders / Video Cameras.
Please check the HDMI Standards & Specifications section on our website to check what the different versions in HDMI offers regarding picture, sound quality, resolution, colour quality etc.
HDMI CABLES AND EQUIPMENT SHOULD NEVER BE CONNECTED / DISCONNECTED WHILE YOUR EQUIPMENT IS POWERED ON SINCE THE HDMI PORT CARRIES A LOW VOLTAGE BUT CAN CAUSE DAMAGE TO EQUIPMENT WHEN PLUGGED / UNPLUGGED WHILE POWERED ON. The sequence below should be followed when installing new cables or equipment between source/player and LCD / Plasma.
1.) Power-off all equipment (At the wall socket).
2.) Connect all Cables, Splitters, Switches, Extenders within HDMI Distribution Network.
3.) Power on all Splitters, Switches, Extenders within HDMI Distribution Network.
4.) Power on all LCD / Plasmas and set to HDMI input from HDMI Distribution Network.
5.) Power on Sources / Players (Sources negotiates HDCP Handshake via HDMI Network to displays which is set to HDMI input to respond to handshake).
Please check the Home Entertainment Wiring Diagram section on our website for common uses of this cable and for alternative wiring options.
