3 PORT SATA SATA + 1 IDE VIA 6421A PCI CARD !! IN STOCK !!

3 PORT SATA SERIAL ATA + 1 IDE VIA 6421A PCI CARD

IN STOCK!

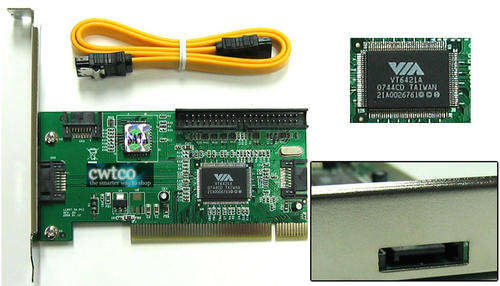

(note the color of the SATA cable is black and not yellow as per the photo)

Features

• Chipset: VIA VT6421A.
• Interface: 3 xSerial ATA ports (2 internal, 1 external) &1 Ultra ATA port.
• SATA Interface:
  • Provides 3 x SATA ports -2 x internal, 1 x external.
  • Provides 3 independent channels to connect up to 3 Serial ATA hard disk device
  • Supports SATA 1.0, 1.1 & 2.0
  • 1.5Gb/s data rate.
• Parallel ATA Interface:
  • Provides 1 x IDE port - internal.
  • Supports Ultra DMA Mode Transfers up to Mode 6 Timing (133 Mbytes/sec).
  • Supports 48-bit LBA (Large Disk), hard drives larger than 137GB.
  • Supports PIO Modes up to Mode 4 Timings, and Multiword DMA Mode 0,1,2 with Independent Timing of up to 2 drives.
  • Supports Tri-state IDE Signals.
• Operating Systems Supported:
  • Windows 98SE.
  • Windows ME.
  • Windows 2000.
  • Windows XP.
  • Windows Vista.
