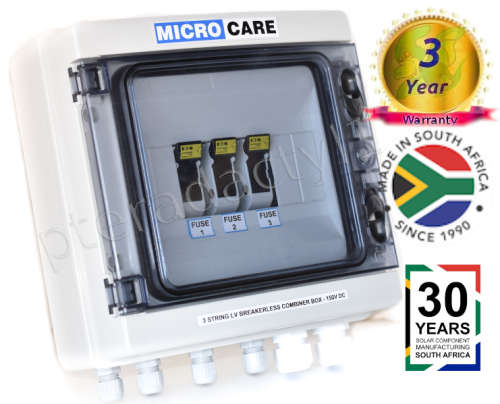

Breakerless Low Voltage Combiner & Surge Protection Unit - 3 string

Application: For stand alone inverter solar systems - not suitable for grid tied inverters,
to connect between solar PV Panels & Microcare MPPT.

Panel wiring explained:

For ONE string of panels connected in series you require a 1 string combiner box.

For TWO strings of panels the 2 string and so on.

NB: If you are connecting the PV panels in parallel, then each panel is a string.

LV specifications for this 3 string unit:

No.of String Inputs - 3

Max PV Input - 135 Voc at 25oC

Max Input Current - 10A per series string

Fuse Rating - 15A Ceramic

Input Cable Size - Max 6mm2

Output Cable Size - 6mm2

Input Connection - 6mm Gland Input

Output Connection - Rail Mounted Terminals

Dimensions in mm (HxWxD) - 260 x 300 x 130

Weight - 3kg

Surge Protection - MOV Type 1

Another reliable product from Microcare.

Why you should consider buying a MICROCAREproduct:

Proudly South African with 20 years of manufacturing and thousands of units having been sold locally and internationally.

Service and repair of this item at a minimum cost due to local manufacture.

Order Lead Time: Normally in stock but if out of stock it will be built, takes approx 5 - 7 working days.

From receipt of your payment if in stock order will be ready for shipping within +/- 48 hours working days. Order payment within 2 days preferred, maximum 7 days.
