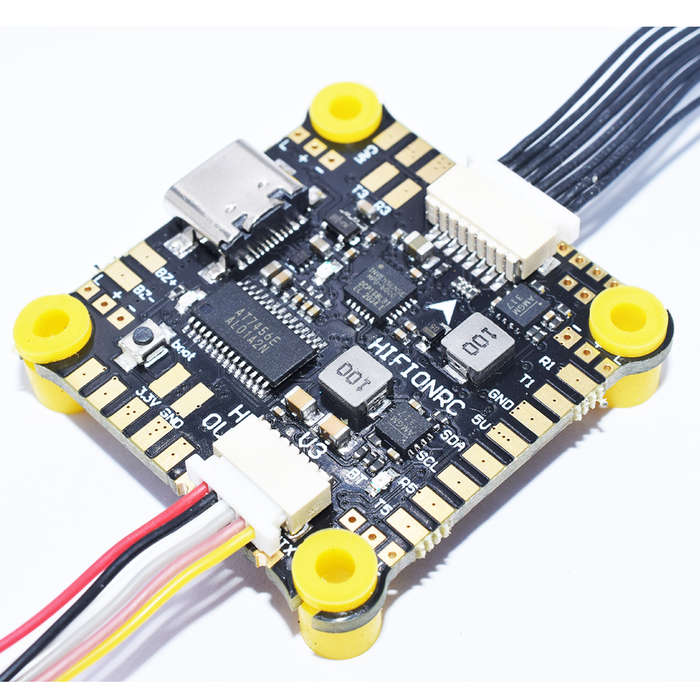

Introduction:
In this time, we added short circuit protection, MCU protection, high-quality PCB board, increased the area of the pad and optimized the position of the pad. It makes welding easier, keeps Bluetooth function, and facilitates the parameter adjustment of every external field.

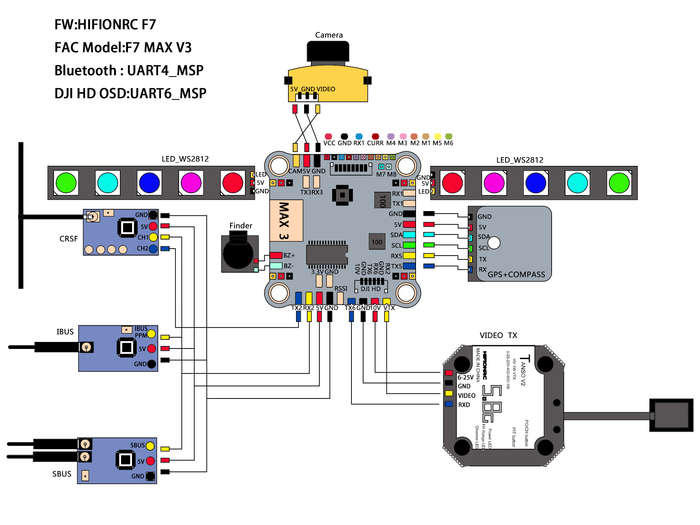

In addition, if you weld the receiver to rx2 and the 5V GND next to it, you can work with the USB parameter cable.
F7 Max V3 has the function of wireless Bluetooth parameter adjustment. You can set flight control only by downloading speedybee software in the mobile app. The serial port for Bluetooth is uart4_ MSP, Bluetooth signal is isolated and will not interfere with receiver and other devices (if antenna is not found, please don`t worry, we hide it)
This FC includes a high-definition cable in Xinjiang by default, which can be directly connected to FC and DJI HD. If you are using a traditional analog image transmitter, don`t worry. This flight control has at7456 chip, and you can still use the traditional 0sd function.
Stm32f722 single chip microcomputer has built-in inverter, and the receiver can be installed on any Rx, and the corresponding UART port can be opened to use. (default is rx2_ UART2)
If you need to use the 8-axis, open the two-way dshot and copy and paste the following code to the CLI command line and confirm (resource motor 7 A08 save), which is a shared IO, so the programming led cannot be used after the 8-axis is activated.
?
Specification:
a??Brand Name:?HIFIONRC
a??Item Name:??F7MAX V3 F7 Flight Controller & 40A BL_32 ESC Stack

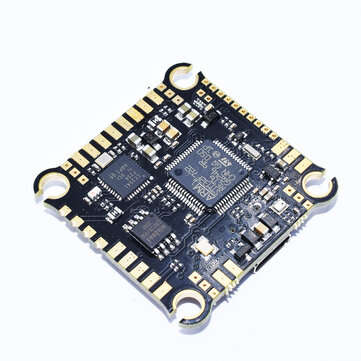

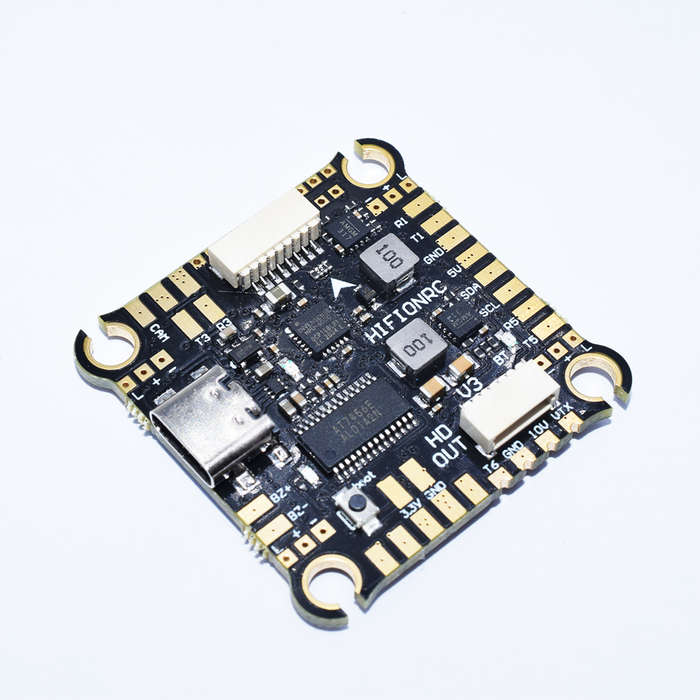

F7MAX V3?F7 OSD Flight Controller

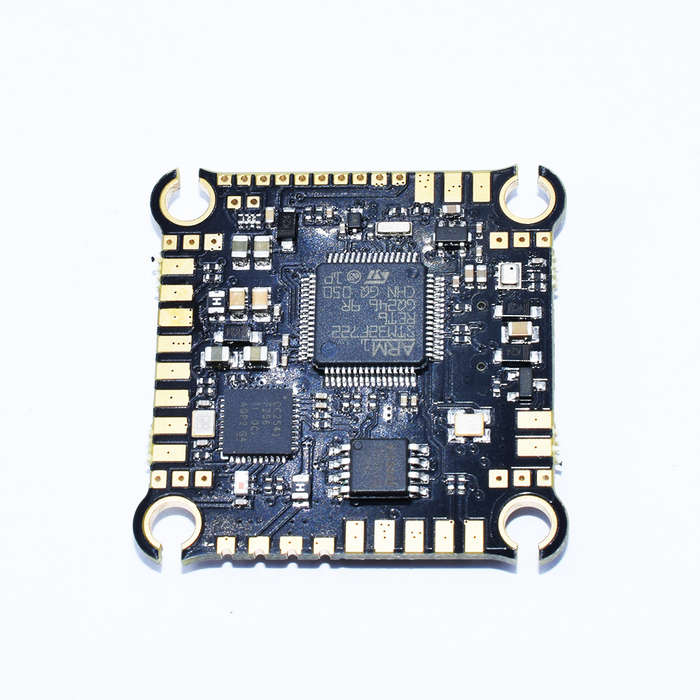

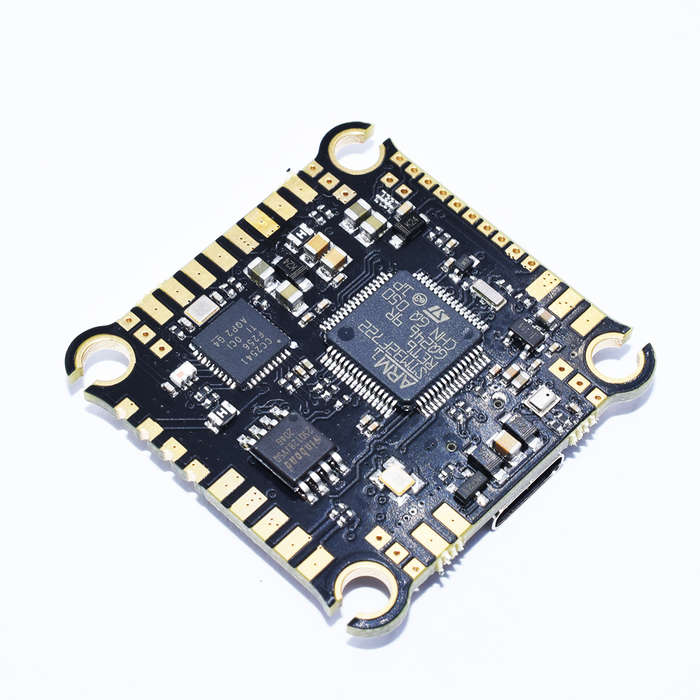

a??MCU: ?STM32F722RGT6 216MHz
a??IMU: MPU6000
a??OSD:?BETAFLIGHT OSD & DJI HD OSD (UART6)
a??UART:?6 groups
Bluetooth parameter adjustment: Yes (V3 hidden antenna)
Barometer: Yes
Motor signal output: 8-way (CLI command required)
a??BEC Output:?5V 2.5A +10V 2.5A dual channel BEC perfectly supports DJI high-definition picture transmission and high power picture transmission equipment. (add intelligent short circuit protection function, short circuit auto fuse, no short circuit automatic recovery)
a??Optimum input voltage: 3-6s (11v-26v), 2S supply will cause 10V BEC output to be equal to battery voltage only
a??Blackbox: 16MB
a??Firmware:?highfionrc F7 supports beta height emuflight (default factory is betafliight)
Receiver support: crsf, SBUs, IBus, Spektrum, Xbus, ppm and other popular receiver protocols
a??LED: 4 Ways independent LED Pad, support WS2812 Programable LED
Flight control overall dimension: 38mm*38mm
a??Dimension: 40x40mm
a??Mounting Hole: 30.5x30.5mm
a??Weight: 7g
a??- Onboard Voltage Sensor
a??- Support SBUS, CRSF, IBUS, Spektrum 1024/2048, XBUS, SumD & SumH Receiver, Built-in inverter
a??- Support Support 3.3V Satellite Receiver?
Click buy complete F7 Flight Controller & 45A ESC Stack.
Click buy complete F7 Flight Controller & 60A ESC Stack.

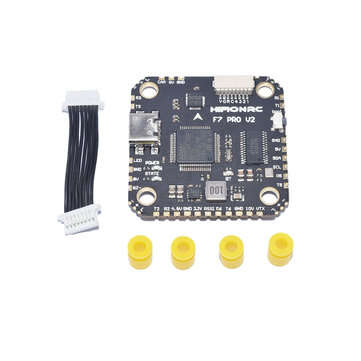

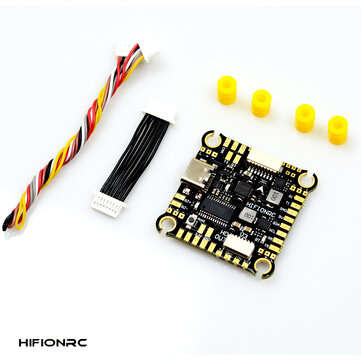

Package Included:

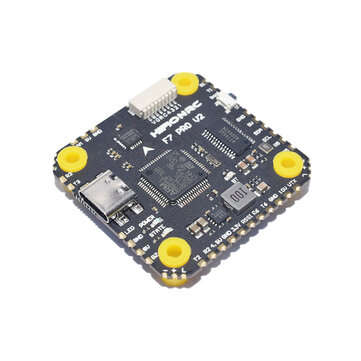

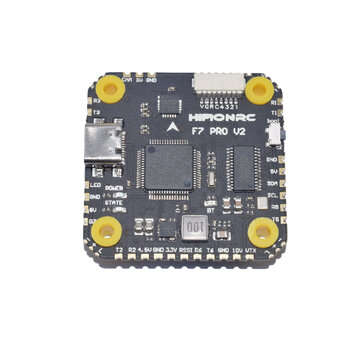

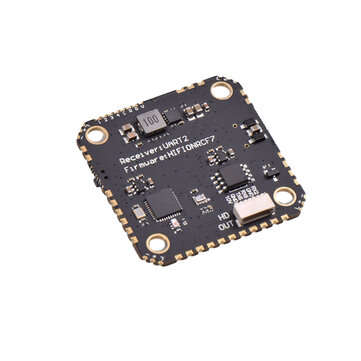

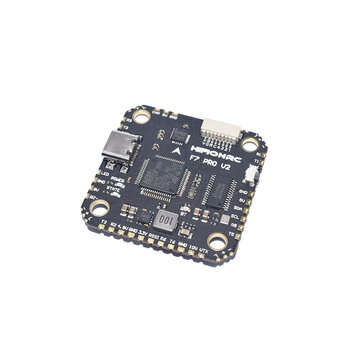

1x HIFIONRC F722Pro V2 F7 Flight Controller Board
4x Anti-vibration Ball
1x Cable
