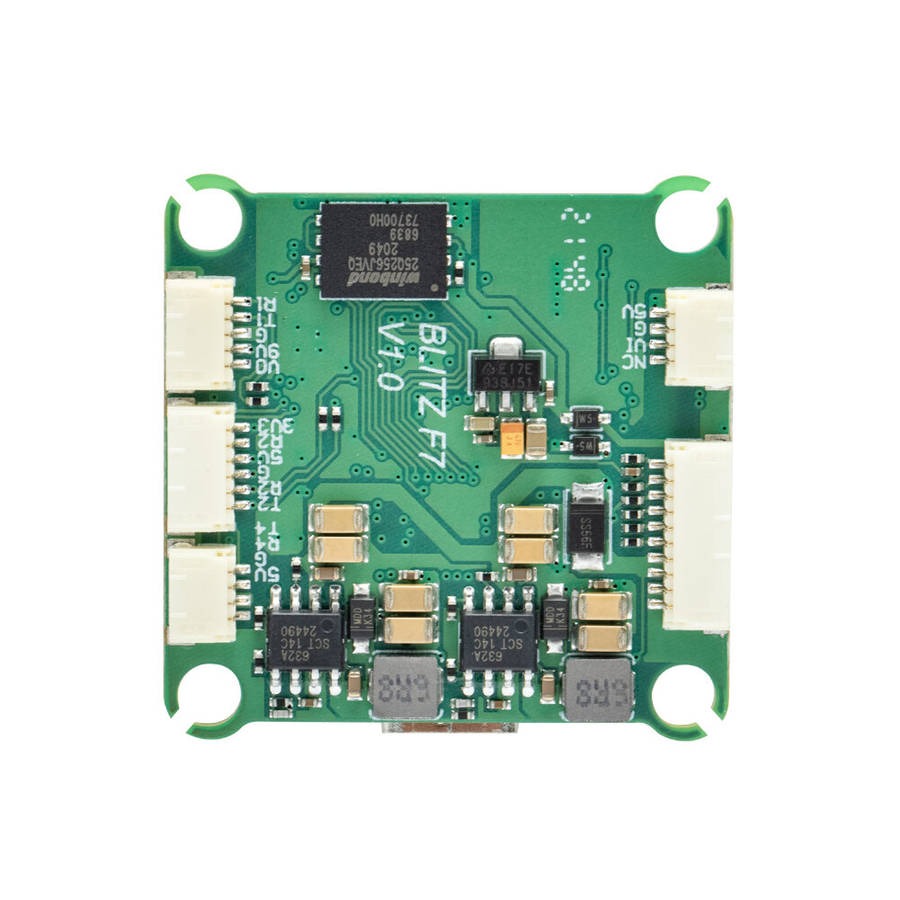

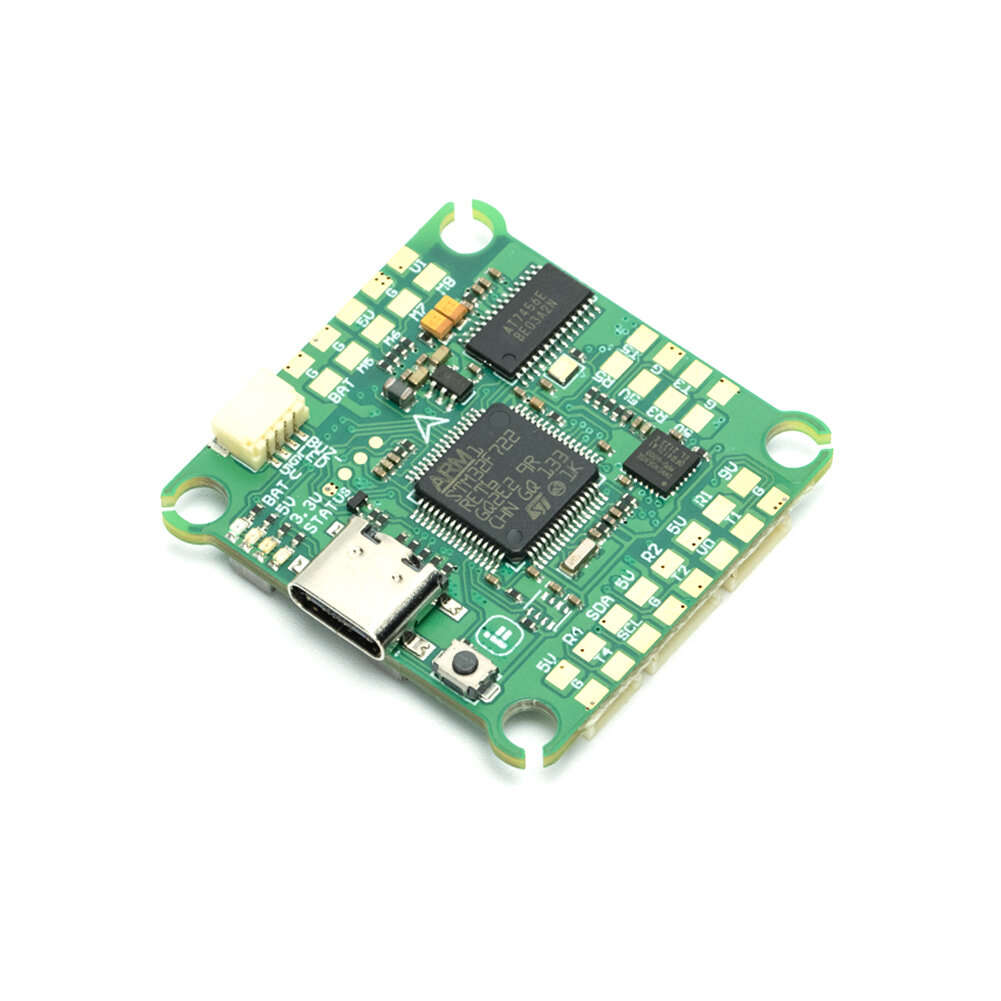

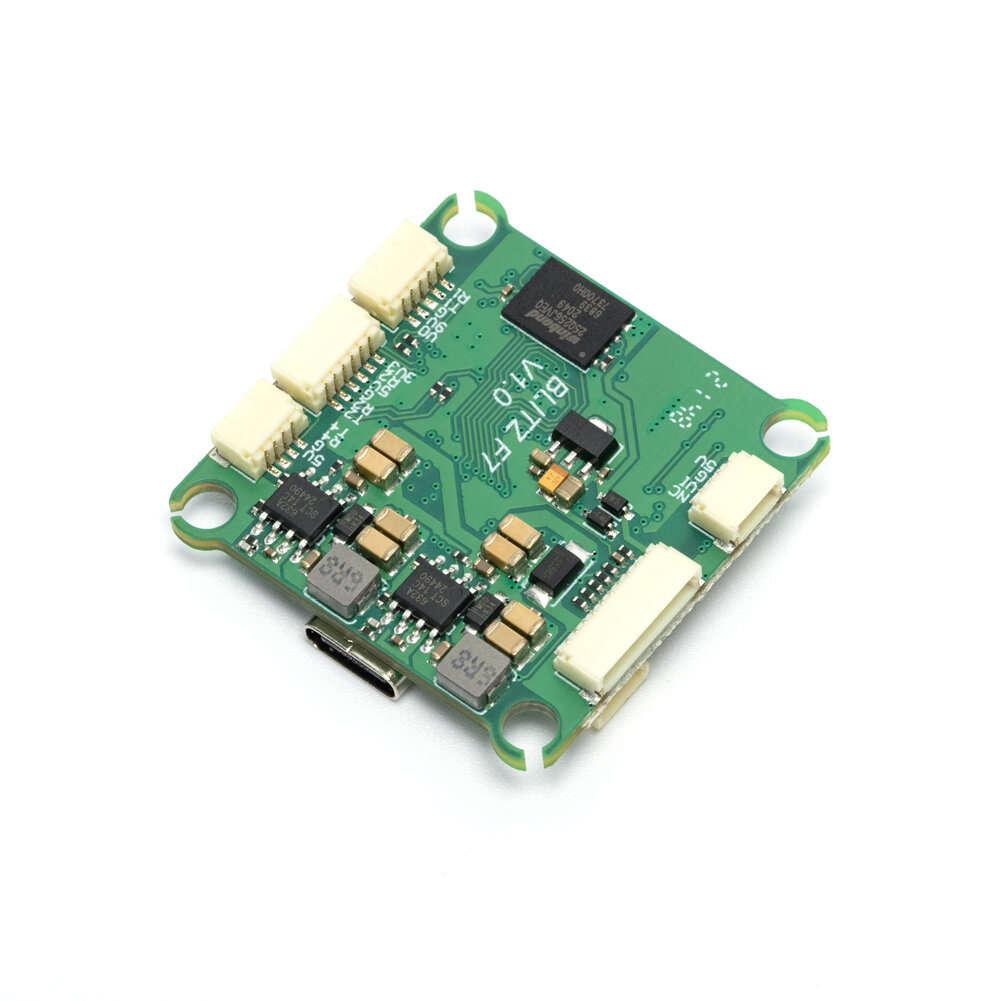

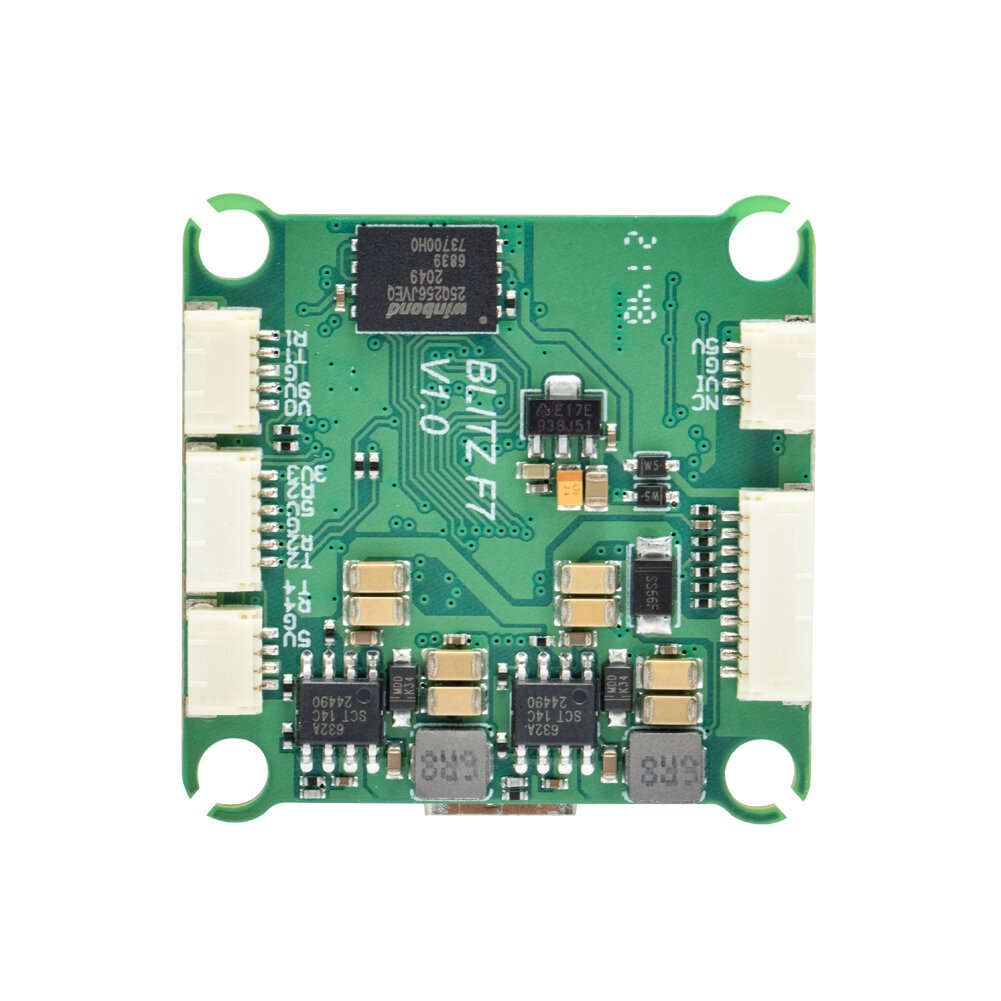

30.5x30.5mm iFlight BLITZ F7 V1.1 OSD Flight Controller 2-6S Bulit-in 5V 9V BEC for Nazgul5 V2 RC Dr

Features:

- Improved circuit design, better components and lower electrical noise!

- DJI HD VTX Connector (Plug-and-Play / No soldering required)

- FC indicator LEDs for visual debugging

- With LC filter

Changelog:

- 2022/Feb: Version updated to V1.1 / Gyro changed to BMI270 due to availability & price issues with MPU6000.

Description:

Brand: iFlight

Model: BLITZ F7 V1.1

MCU: STM32 F722

Gyro: BMI270

Barometer: DPS310

OSD Chip: AT7456E

Flash: 32MB (Blackbox flash)

UARTS: 6

Motor outputs: 4x (SH1.0 connector)

I2C serial: SDA / SLA pads

Smartaudio / IRC Tramp VTX protocol supported

LED controller: Yes

Beeper pad: Yes

Firmware target: IFRC-IFLIGHT_BLITZ_F722

Mount pattern: 30.5*30.5mm / 4mm PCB hole diameter

Dimensions: 36.5*35 mm

Weight: 7.8g

BEC: 5V 2.5A / 9V 2A

Wiring suggestion:

- UART 1 for VTX HD / Analog

- UART 2 for a Receiver

- UART 3/4/5 for GPS or other sensors that require a serial port

- UART 6 for ESC Telemetry

Tips

1. F722 MCU has an inner inverter.

2. SBUSCRSFELRSIBUSDSM ETC... can be connected to any unused UART_RXwe suggest you connect to Uart_RX2

3. Frsky SmartPortTramp & Smartaudio can be connected to any unused UART_TXwe suggest you connect to Uart_TX1

4. F.port can be connected to any unused UART_TXwe suggest you connect to Uart_TX2

Included Connectors (Plug-and-Play wire harness):

- 1x SH1.0 - 5pin connector for HD VTX/Analog VTX&CAM (R1/T1/G/9V/VO)

- 1x SH1.0 - 10pin connector for ESC (R6/CUR/M4/M3/M2/M1/BAT/BAT/G/G)

- 1x SH1.0 - 6pin connector for any receiver or DJI3V3/R2i/5V/G/R2/T2

- 1x SH1.0 - 4Pin connector GPS (T4/R4/G/5V)

- 1x SH1.0 - 4Pin connector LED & Beeper (5V/G/VI/NC)

Package Included:

1 x BLITZ F7 V1.1 Flight Controller

1 set of FC connectors (as above)

1 set silicon grommets
