Specification:
Brand Name: JHEMCU
Model: BL32-55

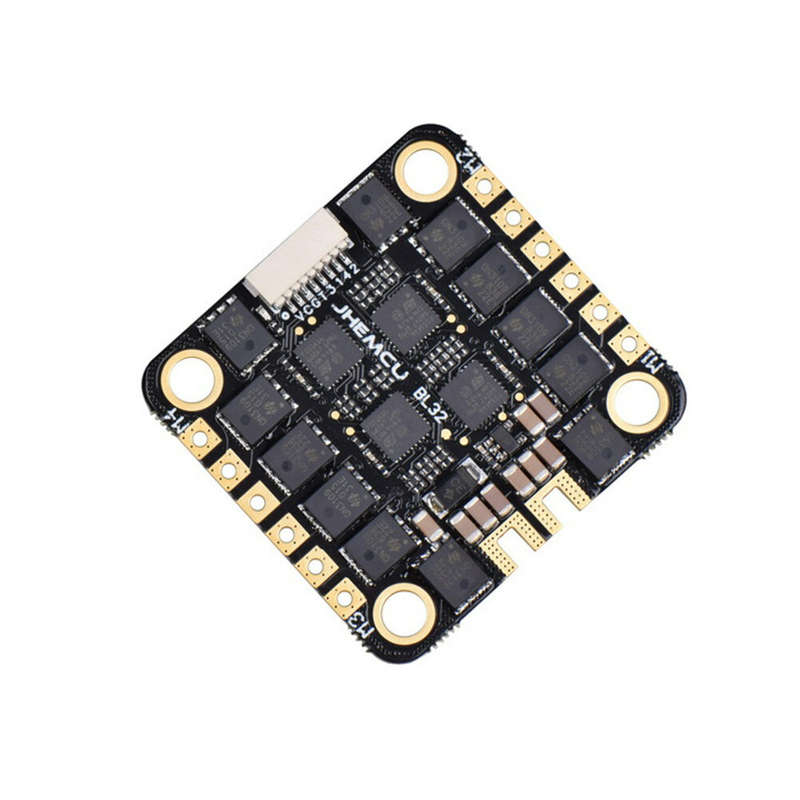

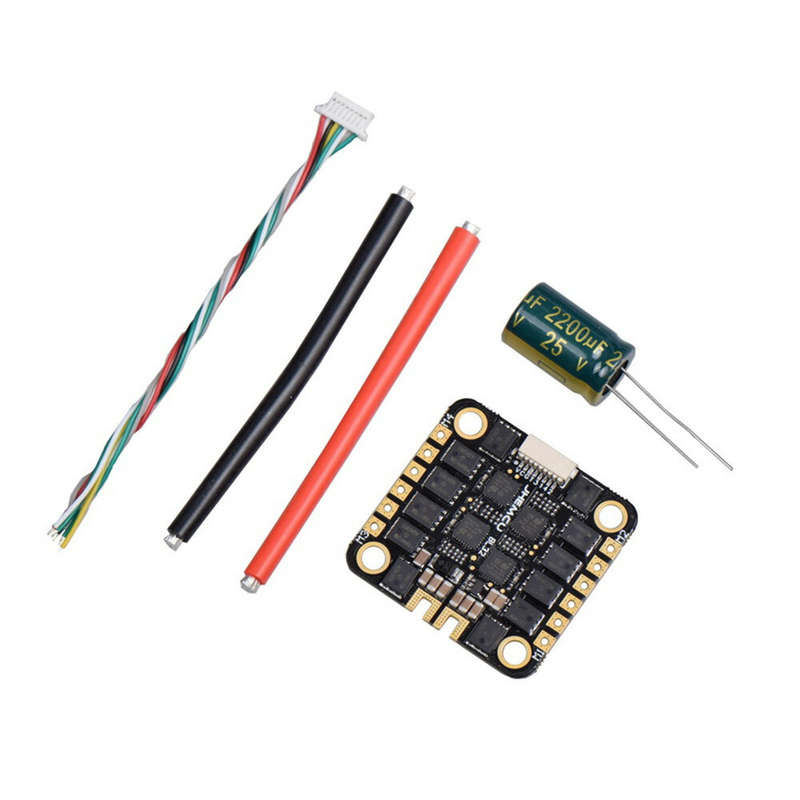

Item Name: 55A BLheli_32 4in1 Brushless ESC
Input Voltage: 3-6S (12-26V)
Con. Current: 55A
Burst Current: 60A
- NO BEC Output
Firmware: BLHeli_32
Size: 39x40mm
Mounting Hole: 30.5x30.5mm, M4
Weight: 10.9g
- Support DShot1200, DShot600, DShot300, DShot150, Oneshot125, MultiShot, PWM

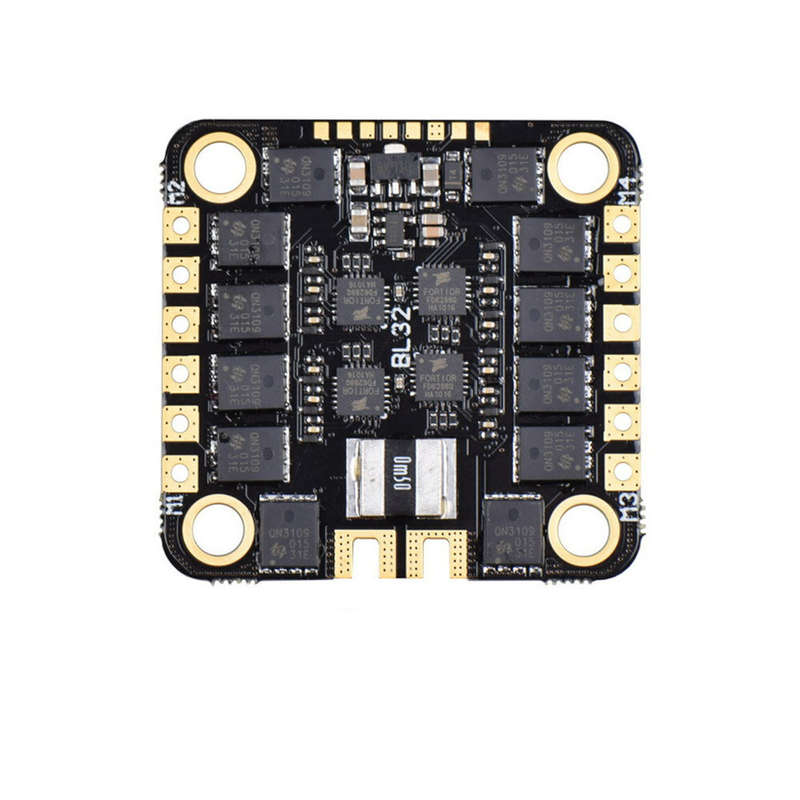

Diagram Picture Instruction:
B+: Battery Positive
CURR: Current Sensor
GND: Negative
TX: Telemetry
1-4: Connect to Flight Contrller's motor signal wire
Features:
- 32Bits ARM Cortex MCU STM32F051 48MHZ CPU
- Strong anti-interference ability
- PCB adopts 6-layer, low inner resistance
- Built-in Current detection module, which can cooperate with the flight control to
