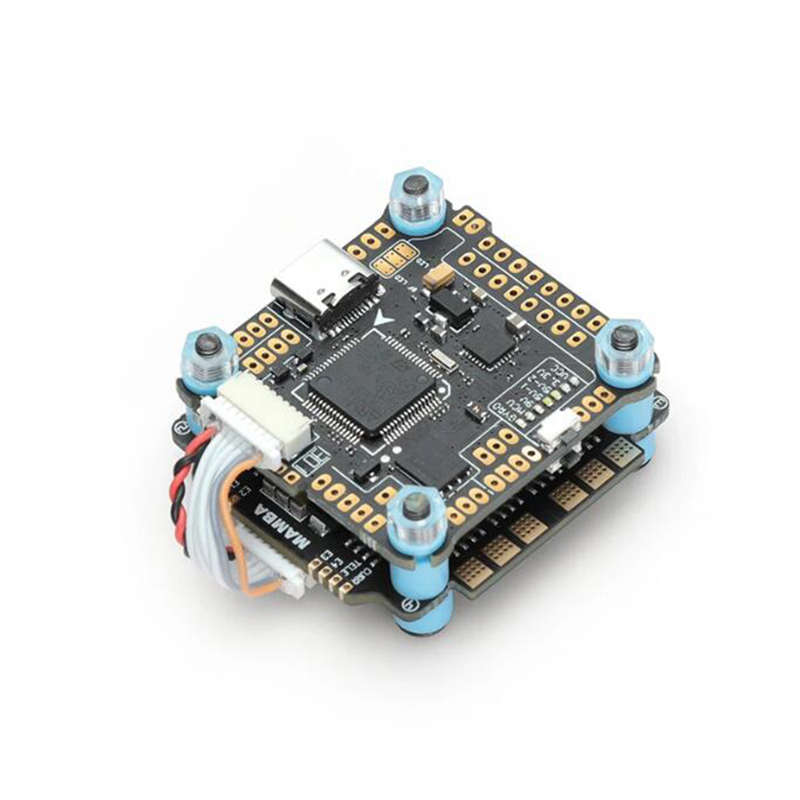

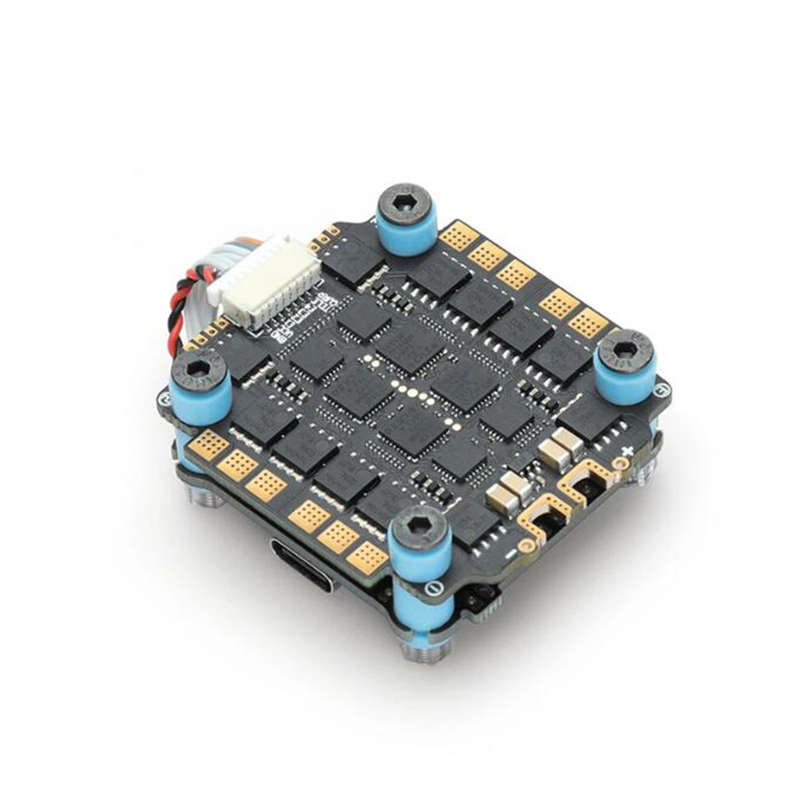

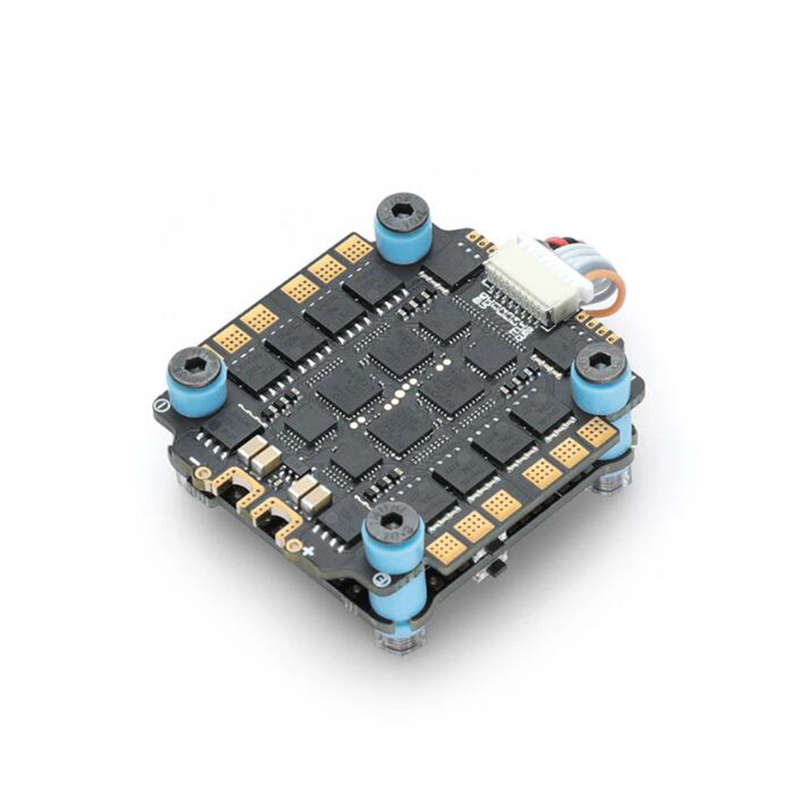

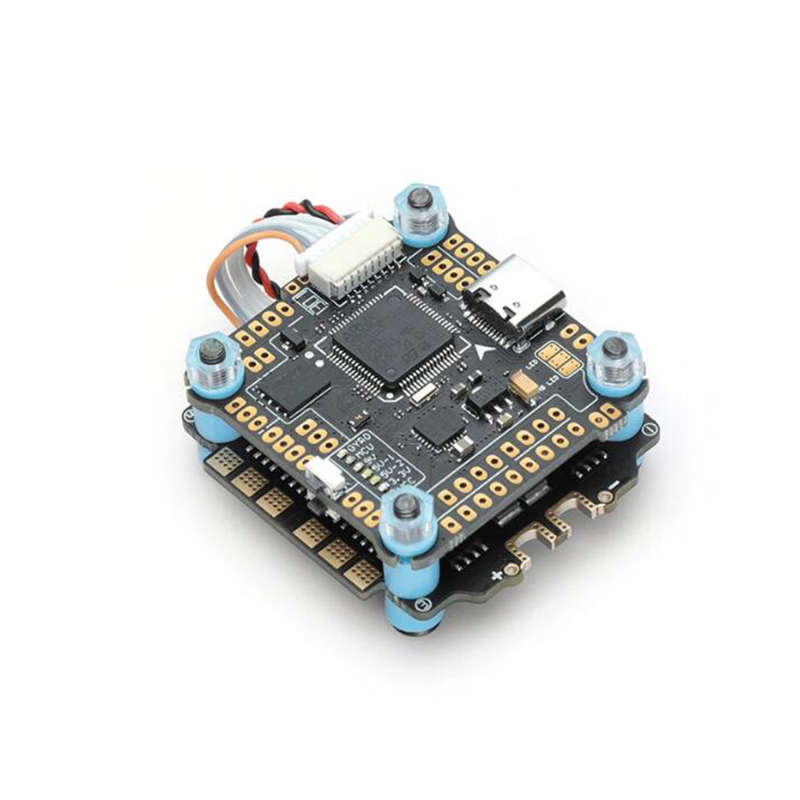

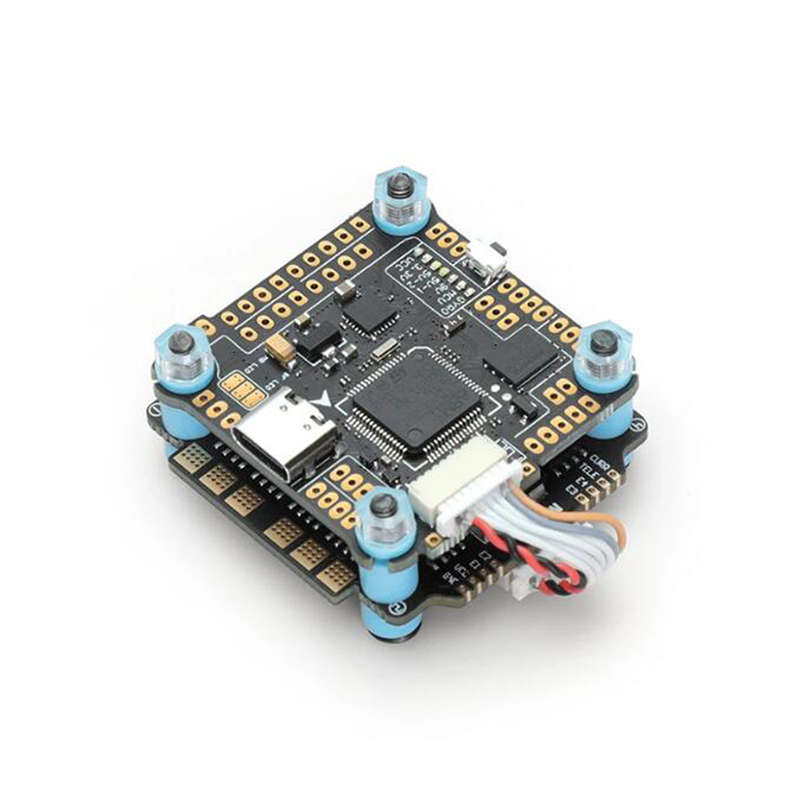

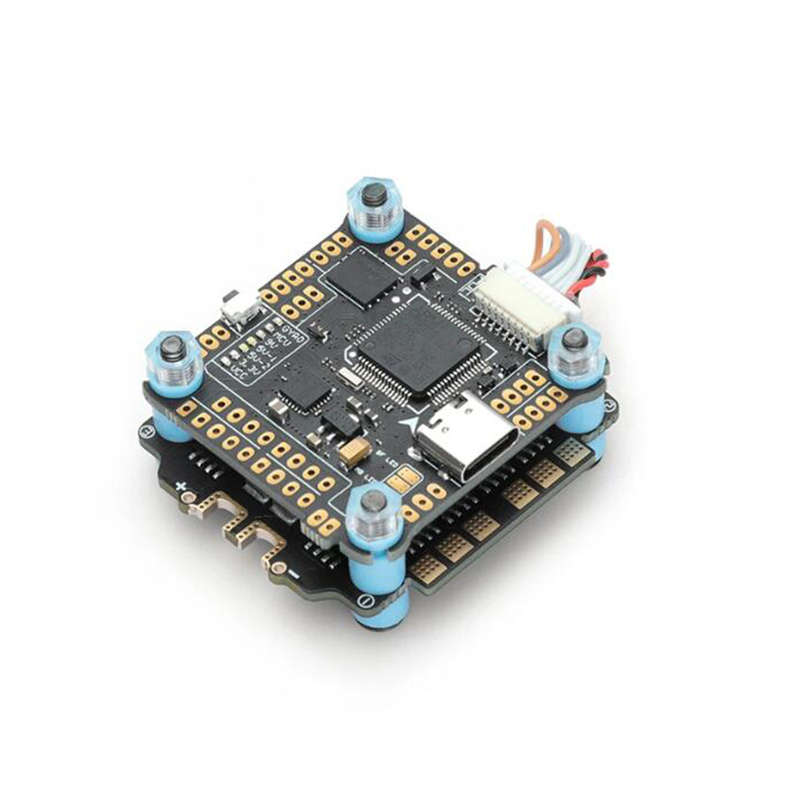

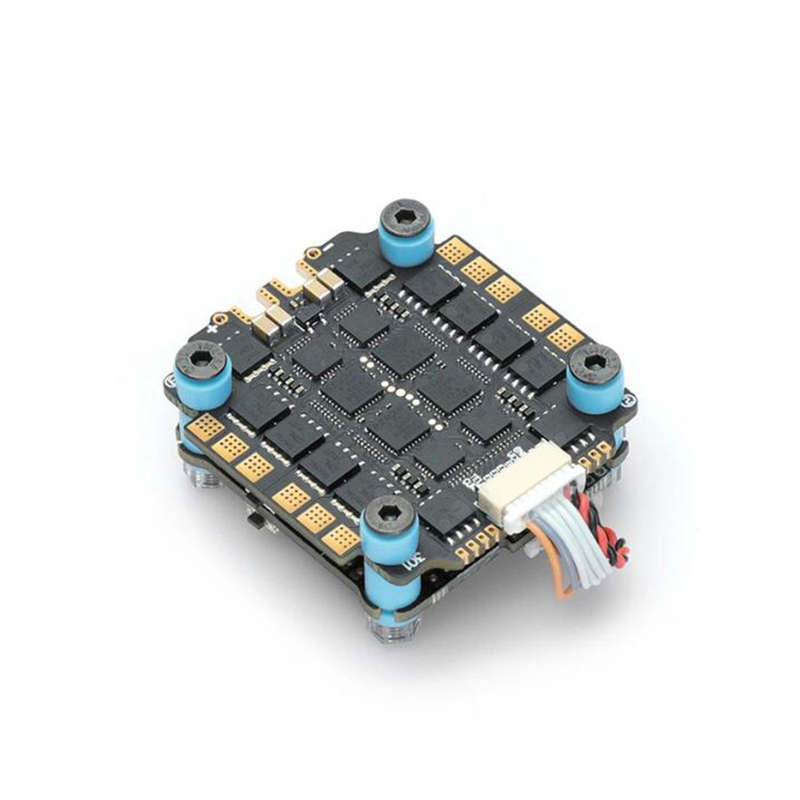

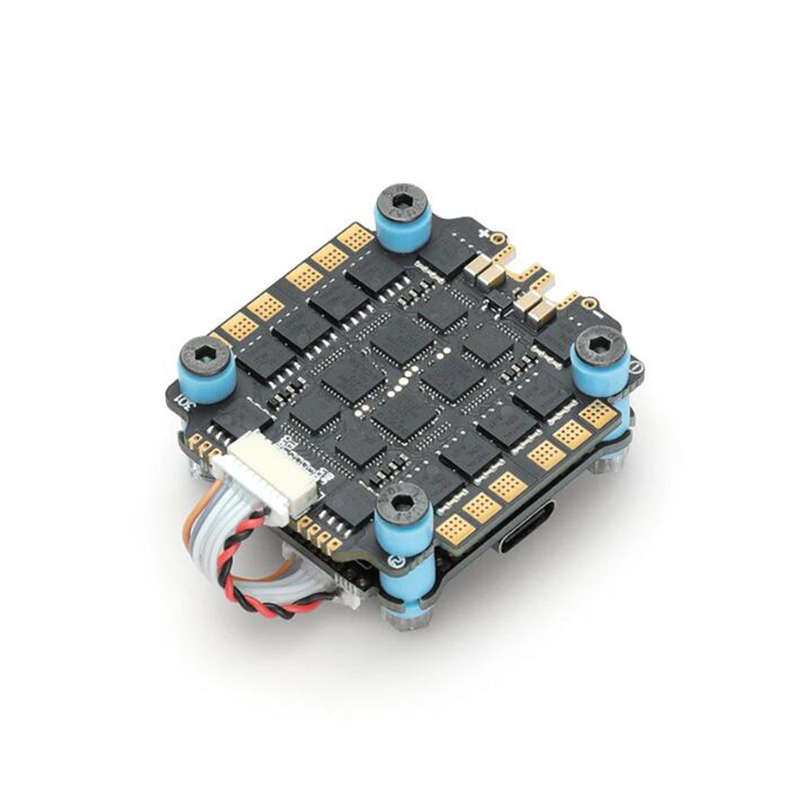

30.5x30.5mm MAMBA Stack F722 MK3 F7 Flight Controller F50 PRO 50A Blheli_32 3-6S 32BIT DSHOT1200 Bru

Specification:

Item Name:?MAMBA Stack F722 MK3 50A 6S 32BIT ESC ???NO WIFI???

Flight Controller:?

MAMBA Basic F722MK3
MCU: 216MHz STM32F722RET6
GYRO: MPU6000
Barometer: Yes
OSD: Yes
Blackbox: 16M Flash Memory
Uarts: 6Set
ESC Soft: Dshot300/600
ESC Telemetry: Yes
Power Led: Yes
LED Controller:?BF LED/MB LED???4 Set 2812 LED???
S/F.Port: Yes
RSSI: Yes
Buzz: Yes
Input: 3~6S Lipo (12.6~25.2V)
TVS Protection: Yes
BEC:3.3V 0.5A& 5V 3A (System Power)&
5V 3A(LED)& 9V 3A
MOUNTING:?30.5mm, M3

ESC:
MAMBA F50 PRO
INPUT VOLTAGE: 3~6S Lipo (12.6V~25.2V)
CONTINUE CURRENT: 50A??4
BURST CURRENT: 55A (10S)
BEC: No
Target???MAMBA F50PRO
SOFT: Dshot300/600/1200
TVS Protection: Yes
MOUNTING:?30.5mm/M3

Features:

Fixed

1. Add I2C function

2. When you connect the USB, the receiver and OSD settings can be saved

3. Increase the pad area

4. LED signal selection ???when Mamba Led sys avaiable???

5. BEC short circuit protection

6. TVS instant high voltage protection 30V

Update

1. Upgrade the anti-interference cable

2. Use Typec???Most???

3. The pad area of the Mini flight controller (20??20) increased by 140%

Added

1. Add self-recovery insurance to the receiver`s 5V power supply.

2. Increase the camera VCC power supply pad.

3. The standard flight controller (30.5??30.5) adds a spare pad.

4. Gyro uses an independent Low Dropout Regulator (Low Dropout Regulator) and reduces ripple interference.

Package Included:

1 x DIATONE MAMBA Stack F722 MK3 50A 6S 32BIT ???NO WIFI???
1 x High-Frequency 470uF/35V?
2 x 8pin sh1.0?
2 x 12AWG 100mm?
AMASS Original?XT60

?
