30 Meter CAT6 Gigabit Networking LAN Cable (UTP Networking Cable) - Precrimped and tested

30 Meter CAT6 Gigabit Networking LAN Cable (UTP Networking Cable) - Precrimped and tested

Cables are pre-terminated and tested with connectors and does not need any tools or connectors to assemble.

These cables are 23AWG=0.57mm. Do not be fooled by suppliers selling cheaper 24AWG=0.51mm CAT5 or CAT6 cables. Each conductor on this cable is 0.57mm for less signal loss than 24AWG and suitable for 1Gbps Networking, POE, CCTV or any other telephony applications.

To terminate / crimp RJ45 connectors correctly onto UTP or STP cables use the Crimping Tool below. Not needed on this cable but if a connector damaged it can be fixed by tool below

/ratchet-rj45-crimping-tool-rj11-rj12-utp-stp-ethernet-network-cables/

Usage:

• Telephony Voice Wiring
• 10 Mbps Networking
• 100 Mbps Networking
• 1000Mbps / 1Gbit/s Ethernet networking

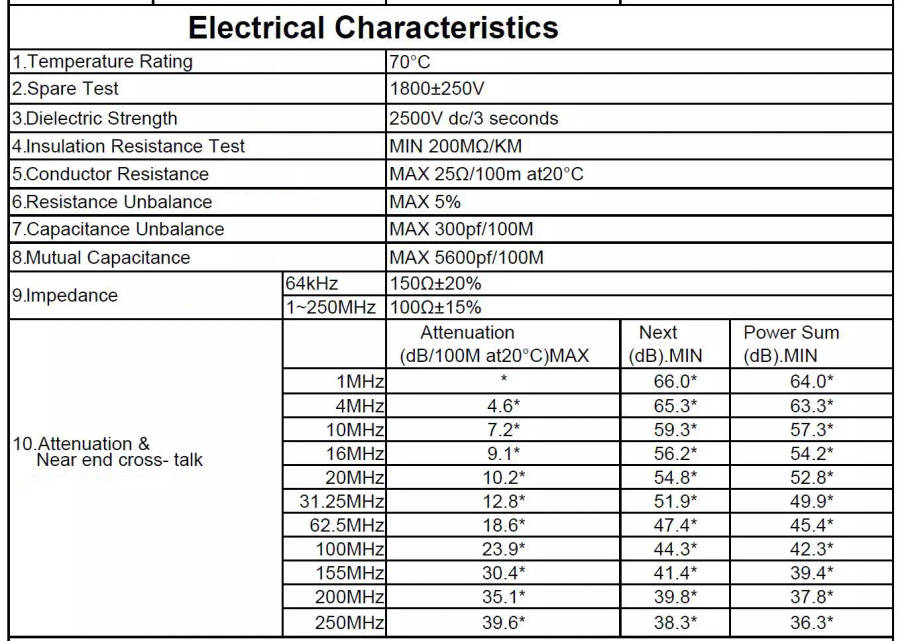

Specifications

• Conductor
• Material: CCA
• Construction 23AWG (0.57mm ±5%)

Insulation

• Material : HD-PE
• Braids : 64
• Thickness : 0.18mm
• OD: 0.92mm

Twisted Pair - 568B Wiring Standard

1. BLUE/WHITE and BLUE
2. ORANGE/WHITE and ORANGE
3. GREEN/WHITE and GREEN
4. BROWN/WHITE and BROWN

Shielding

• Polyester + Crystal Foil

Jacket

• Material : PVC
• Thickness : 0.6mm
