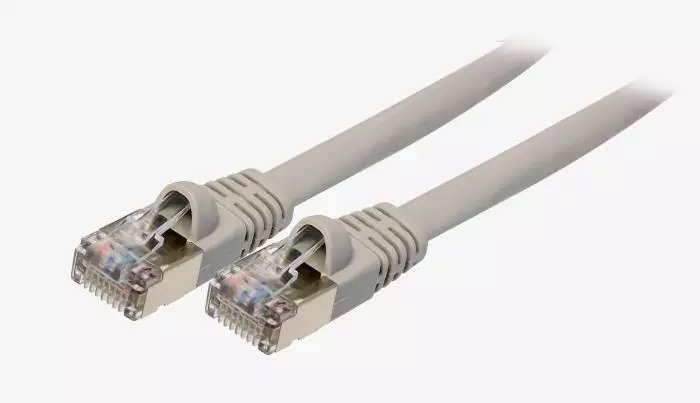

30 Meter STP CAT6E Network Cable up to 1Gbit/s LAN Cable - Precrimped and tested

30 Meter STP CAT6E Network Cable up to 1Gbit/s LAN Cable - Precrimped and tested

These cables are pre-terminated and tested with the correct network connectors and does not need any of the tools or connectors below.

Cables are >23AWG=0.59mm and will pass long lengths up to 100 Meter on 1Gbps networking, 120 Meter or more on POE CCTV Cameras and access points and is used for high speed networks. Do not be fooled by suppliers selling cheaper 24AWG=0.51mm CAT5 or CAT6 cables. Each conductor on this cable is 0.59mm±5% for less signal loss than 24AWG and suitable for 1Gbps Networking, POE, CCTV or any other telephony applications.

Specifications

• 100+ Meter 1Gbit/s Speeds possible
• Construction >23AWG (0.59mm ±5%)

Insulation

• Material : HD-PE
• Braids : 64
• Thickness : 0.18mm
• OD: 0.92mm

Twisted Pair - 568B Wiring Standard

1. BLUE/WHITE and BLUE
2. ORANGE/WHITE and ORANGE
3. GREEN/WHITE and GREEN
4. BROWN/WHITE and BROWN

Shielding

• Polyester + Crystal Foil + Mesh

Jacket

• Material : PVC
• Thickness : 0.6mm

Cable Specifications & Testing CAT6A:

Shielded RJ45 connectors below can be used if a connector on this cable has been broken by accident. CAT5/other CAT6 RJ45 connectors sleeves may not be wide enough to fit this cable
