30 Watt Gigabit PoE Adapter for POE Switches / POE Access Points | Procet EN30G

30 Watt Gigabit PoE Adapter for POE Switches / POE Access Points | 52V

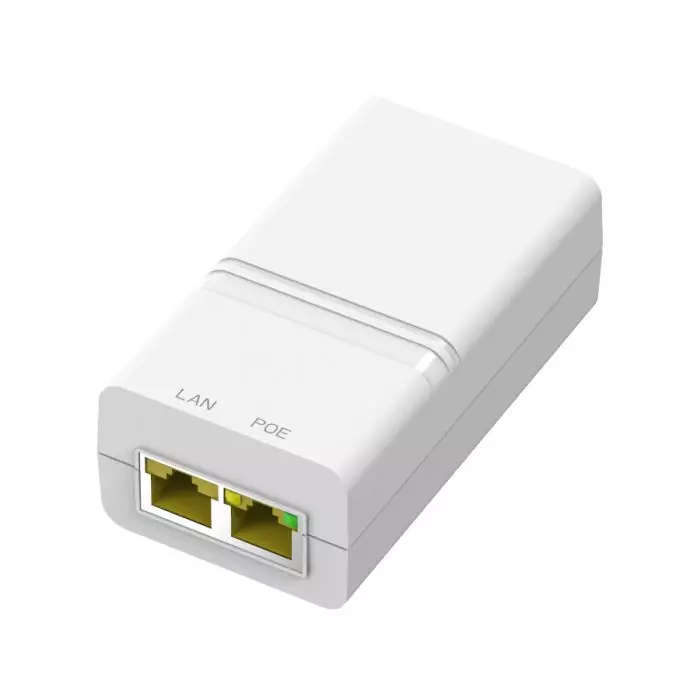

Procet EN30G

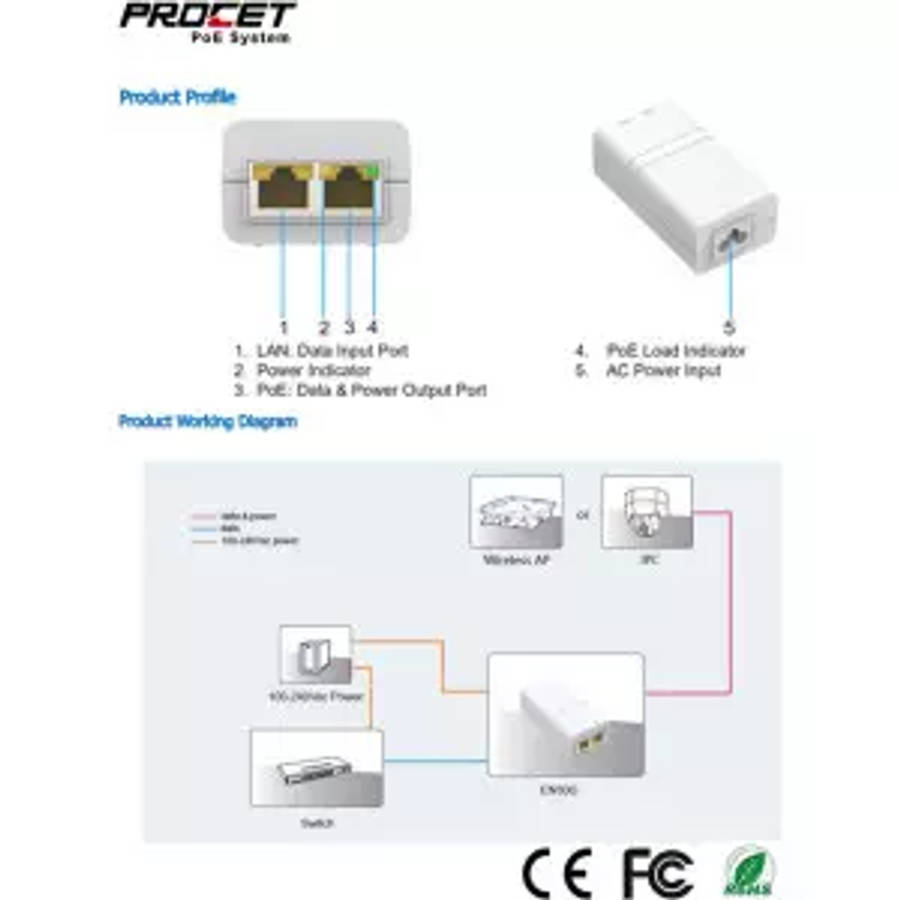

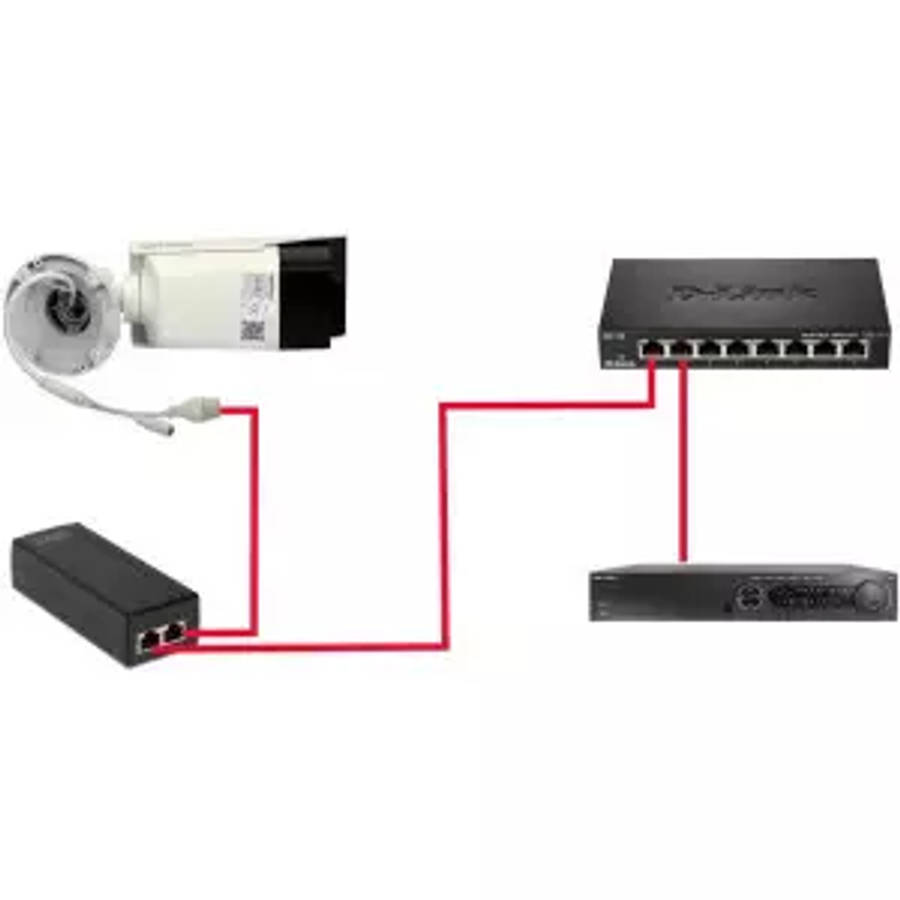

This Power over Ethernet Adapter is a IEEE802.3AT Gigabit PoE injector, which fully conforms to the standard of 802.3, transmitting power through Ethernet / Network CAT6 / CAT7 cable, the maximum transmission distances can reach 100 meters. The PoE injector has two Ethernet gigabit data ports and an output port combination of data and power. In addition, the device can be used for Ethernet devices which is IEEE802.3af compatible and any other PoE power applications for devices ranging 48v-52Volt such as wireless Access Points, VoIP phone and webcams.

Features:

• PoE ports supports IEEE802.3at and IEEE802.3af standard
• Equipped with gigabit port, blazing-fast transfer rate, maximum transfer rate of up to 30W for single port power distance extension of up to 100 meters for standard cat. 5e and cat. 6 Ethernet cable
• Plug and play, no any configuration required

Specifications:

Network standards

• IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at

LED Indicator

• PWR, PoE

Interfaces

• 1*10/100/1000 Base-T Ethernet Port(Data/PoE)
• 1*10/100/1000 Base-T Ethernet Port(Data)

Transmission media

• Recommended: CAT5/5e UTP, CAT6, CAT7 or better

Dimensions

• 132.3mm*60mm*33mm

Level of protection

• ESD: Air discharge: ±10kV, Contact discharge: ±8kV

Forwarding mode

• Store-and-forward

Transmission Rate

• 1000Mbps

PoE budget

• Single port: AF: 15.4W, AT: 30W
• Whole device: 30W

Power consumption

• 30W

Input voltage

• 100-240V AC 50/60Hz
• 52V/0.8A DC Power Adapter Output

Mounting

• Desktop mounting: support

This POE is commonly used with the Wifi Access Points below:
