300 Meter Roll CAT5e FTP Gigabit Outdoor 24AWG Networking Cable with Drain Wire | Black | UV Prot...

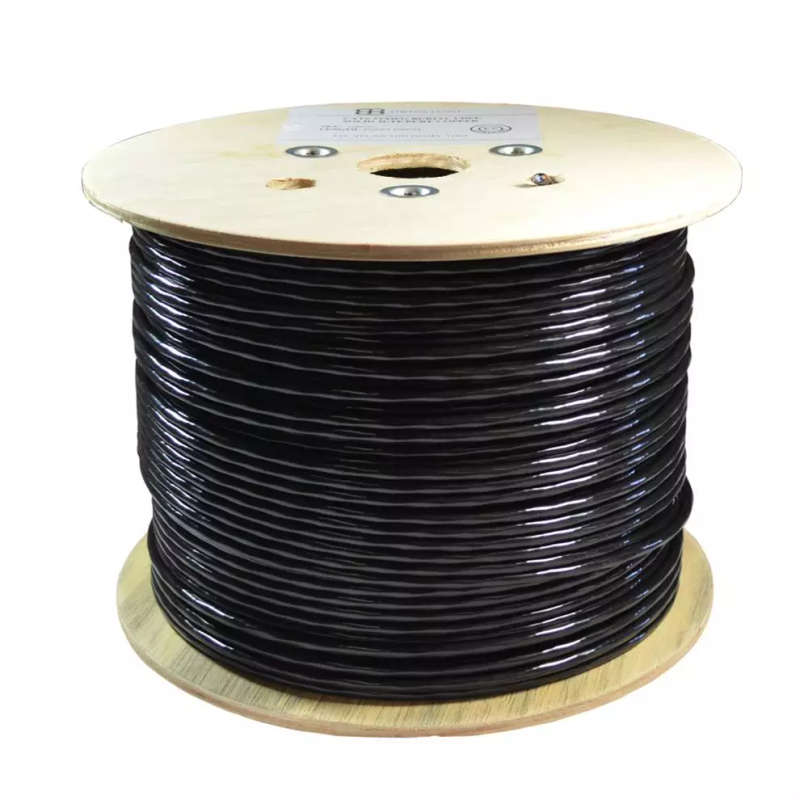

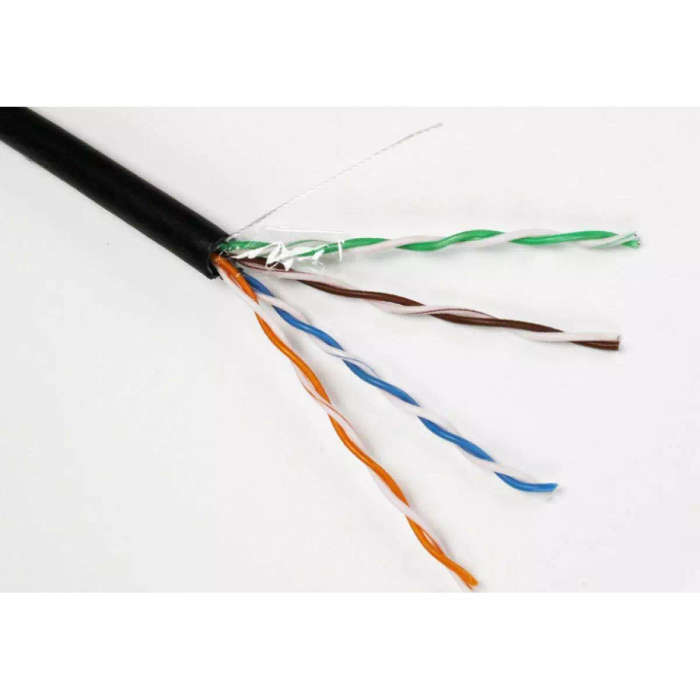

300 Meter Roll CAT5e FTP Gigabit Outdoor 24AWG Networking Cable with Drain Wire | Black | UV Protected

When doing outdoor installations for networking, this CAT5e UV Protected Cable should be your first choice, due to its fantastic UV reduction shielding, making sure that your networks perform optimally, even when faced with direct UV rays from the sun. This cable has been constructed without a central plastic cable separator which increases cable width to ensure this CAT5e Cable can fit through very thin conduit and restricted spaces. It has been tested up to ± 60 Meter on 1Gbps Network switches to ensure Gigabit speeds on the network it is installed in. Longer lengths will sync to 100Mbps depending on network switches quality but average 1Gbps distances will be 50+ Meter lengths.

Usage:

• 10/100 Mbps / Gigabit Networks / Up to 1Gbps Network Switches / 1000 Base-T4 Ethernet networking
• Telephony Voice Wiring
• Alarm Panels 8-Core or less cores Wiring
• Home Automation Wiring for trigger switches

Specifications

• Rated Temperature: 75º C
• Conductor: 0.51mm±10%
• Insulation(±0.03mm): 0.18mm PE Black UV Coated
• Outer Cable Diameter with Insulation : 5mm
• Standard PVC or LSOH jacket

These cables are 24AWG=0.51-0.53mm.

To terminate / crimp RJ45 connectors correctly onto UTP or STP cables use the Crimping Tool below.
