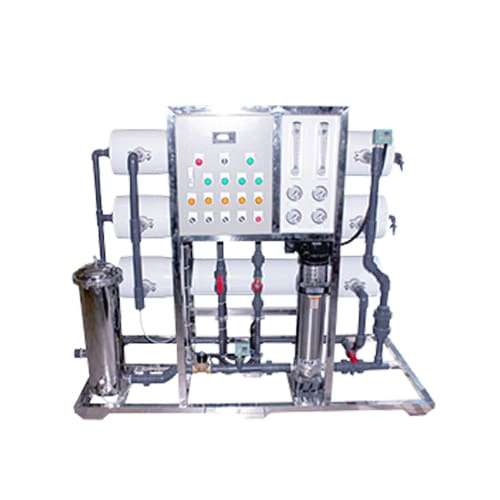

3000 Lph Reverse Osmosis Industrial System

• Produces 3000Ltrs per hour

• 1x 5x20" standard Sediment Water Filters Stainless Steel housing

• 3x 8040 Fiber Glass Membrane Housing

• 3x 8040 Membrane

• 1x Vertical Multistage Pump

• DESCRIPTION FEATURES
• Sediment Filter: 5 Micron Sediment Filter that removes sediments and protects the system.
• High-Pressure Pump: 1HP Motor Vertical Multi-Stage Pump with a flow rate of 1080 Liters/H. High-quality stainless steel Shimge Pump for long-life usage.
• RO Membrane: One of the industrys leading brackish water RO elements Vontron-8040. Membrane Housing: 8.0" x 40" Ceramic Housing with 300PSI maximum operating pressure.
• Pressure Gauges: Glycerin Filled Gauges for monitoring the systems operating pressure and per liter operating pressures.
• Low-Pressure Switch: Safety device to protect the pump from running dry when there is insufficient water feed pressure. Solenoid Valves: To assist with the on/off functionality of the system and automatic membrane flush.
• Flow Meters: One Product and One Waste Flow Meters Enables the operator to actually adjust the product to waste ratio and monitor the systems performance.
• Regulator Valve: One Stainless Steel ANSI 316 Needle Valve regulates the product to waste ratio (systems recovery).
• Micro-Computer Controller: A specialized controller designed by Purltech for commercial systems with automatic controls and TDS monitors.
• OPTIONAL FEATURES: Stainless Steel Components: ANSI 304 and 316 can be used with solenoid valves and pumps for brackish water treatment. Concentrate Re-Circulation Automatic Pre-treatment Systems Chemical Dosing Pumps
• SPECIFICATION
• Capacity: 18000 GPD RO Membrane: 3 pcs
• RO Pump: 3HP
• Voltage/Hertz: 110V or 220V / 50Hz or 60Hz / Single phase or three phase Pipe Size: 3/4" Feed, 1/2" Permeate, 1/2" Concentrate, 1/2" Flush (BSP thread)
• OPERATING PARAMETERS Operating Pressure: 180 PSI | Max. Feed TDS | 1000 ppm Normal Salt Rejection: 99% | Max. Feed Hardness | 15 ppm Minimum Salt Rejection: 96% | Feed pH Range | 3.0 10.0 ppm Operating Temperature: 20 C 45 C | Free Residual Chlorine | 0.1 ppm Minimum Feed Pressure: 1.5Kg | Recovery Rate | 60% 75%


• WDA47
