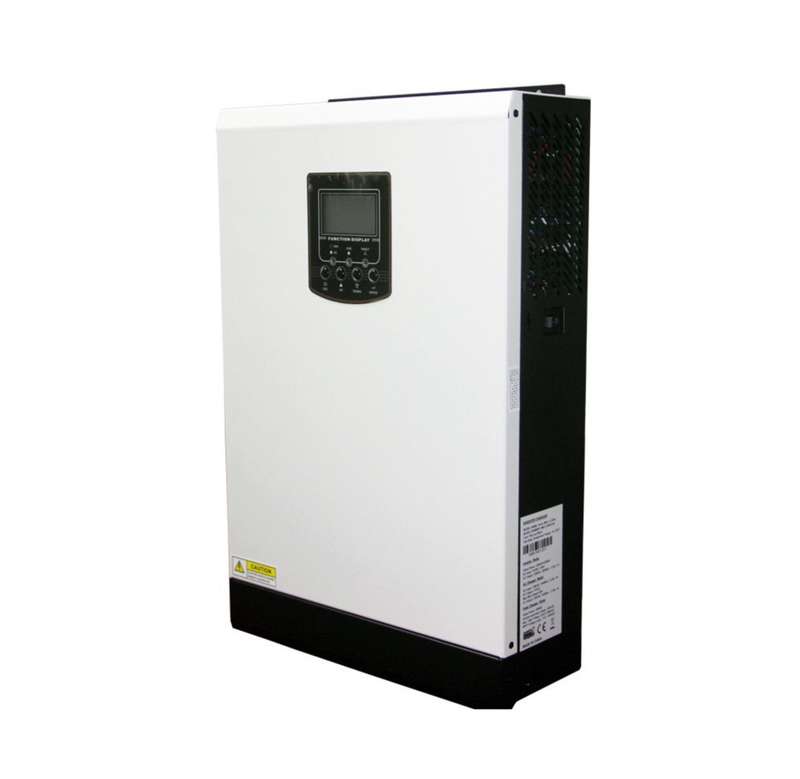

Description;-It is a multi-function inverter and charger, combining functions of inverter, and MPPT solar charger to offer uninterrupted power. Especially this model allows users to operate without batteries connected-This is a multi-function inverter, combining functions of inverter, solar charger, and battery charger to offer uninterruptible power support in a single packageMPPT Solar Charging Inverter, Max accept 4000W/500V solar power, Max Charging Current:80A; Starting voltage>150V, PV Array MPPT Voltage Range:120~450Vdc; Max PV current 18A?Battery Cold start function(46V), BMS communication/RS485/CAN-BUS/RS232 communication support-Single-phase output 230V, Removable LCD control module, and Built-in Bluetooth for mobile monitoring(Android only)-Output source can be set with Utility first (default)/Solar first/SBU priority, Outputoutput power can be set 220V/230V/240VFeatures;-High-efficiency pure sine wave inverter (PF=1)-Wide PV input range ( 120Vdc--500Vdc ) 80A MPPT Solar charge current, intelligent 3-stage 60A AC charger-Surges to 2X continuous power for 5 seconds for motor loads-Intelligent functionality enables utility and solar input prioritization-Wide utility input range ( 90Vac-280Vac ) for unreliable grid even in the most challenging environments.-Field serviceable with replacement boards and spare Monitor, troubleshoot, or communication with USB / RS232-System configures quickly into a compact, wall-mounted system-Supports the batteryless operationSpecifications;Inverter Mode :-Rated Power : 3000VA/3000W-DC Input : 24DC ,116A-AC Output :230VAC ,50Hz,13.5A, 1cAC Charger Mode:-AC Input :230AVC, 50Hz , 17.7A, 1c-DC Output; 27VDC ,10-60A-AC Output : 230vac ,50hz, 13A ,1cSolar Charge Mode:-Rated Current: 60A-System Voltage:24VDC-Min. Solar Voltage:30VDC-Max. Solar Voltage :(VOC) : 150VDCWhat's in the box1 x 3000kva 24v Mppt 60A Hybrid Solar Inverter
