Specifications:

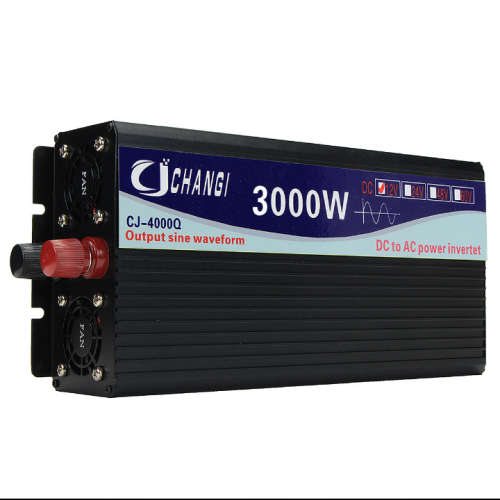

Type:Solar inverter
Output voltage waveform:Pure sine wave
Power:3000W / 4000W / 5000W / 6000W
Output voltage:220V
Input voltage:12V/24V(leave Note for voltage selection)
Output frequency:50Hz
Low-voltage protection:9.5V/ 20V
High-pressure protection:16V/30V
Conversion rate:93% or more
Size:30*15*CM(3000W)
Features:
-High-pre-cision circuit board.
-Built-in intelligent control chip.
-Color LCD screen integration.
-Dual cooling fans to extend the life of the inverter.
-Screw terminal. Pluggable plug, easy to replace the cable.
-Universal three-hole socket, strong compatibility,most appliances are suitable.
-Can display the remaining battery capacity, input voltage, output voltage and load power.
-Pure sine wave, smart filter, no interference on the electrical, to protect electrical appliances.
-Up to 93% conversion rate, reduce the conversion loss of 30%, increase 30% continuous power.
-Using STM chip technology, high reliability, seismic resistance, solder joint defect rate is low, reducing battery and radio frequency interference.
-Aluminum-mag-nesium alloy shell, light weight, good thermal conductivity, can quickly reduce the temperature of components, work long hours are not affected.
-Six intelligent protection, overload protection, high voltage protection, low voltage protection, over temperature protection, reverse polarity protection, short circuit protection.
-Intelligent temperature control fan, make the inverter more quiet. When the temperature ≤ 45 , the fan stops working, when the temperature ≥ 45 , the fan began to work.
-Buzzer reminder device. Once any protection of the inverter is triggered, the inverter immediately disconnects the power supply and the load enters a protection mode and reminds people through a buzzer reminder.
Packaged included:
1 x Inverter
1 x User manual
1 x Ultra-thick battery cable
