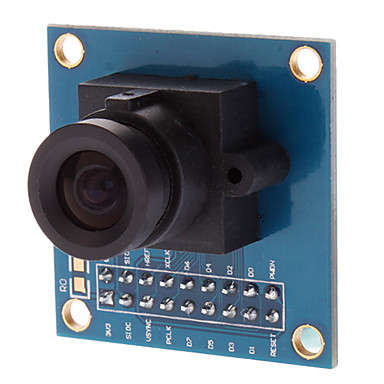

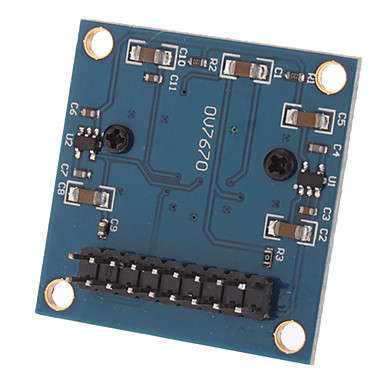

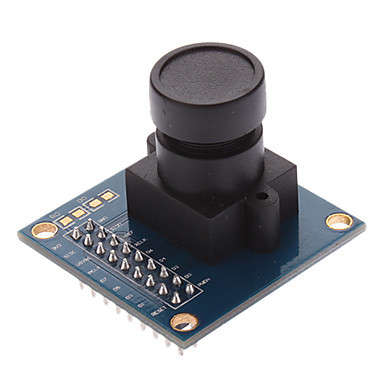

300KP VGA Camera Module for Electronics DIY, Development & Projects (Arduino Compatible)

300KP VGA Camera Module for Electronics DIY, Development & Projects

(Arduino Compatible)..!

Product Information

Key Features

Color: Black + blue
Material: PCB + plastic + metal
Photosensitive Array: 640 x 480
IO Voltage: 2.5V to 3.0V
Operating Power: 60mW/15fpsVGAYUV
Sleeping Mode: <20 uA
Operating Temperature: -30 to 70 deg C
Output Format: YUV/YCbCr4:2:2 RGB565/555/444
GRB4:2:2 Raw RGB Data (8 digit)
Lens Size: 1/6"
Vision Angle: 25 degree
Max. Frame Rate: 30fps VGA
Sensitivity: 1.3V / (Lux-sec)
Signal to Noise Ratio: 46 dB
Dynamic Range: 52 dB
Browse Mode: By row
Electronic Exposure: 1 to 510 row
Pixel Coverage: 3.6um x 3.6um
Duck Current: 12 mV/s at 6'C
High sensitivity for low-light operation
Low operating voltage for embedded application
Standard SCCB interface compatible with I2C interface
Raw RGB, RGB (GRB4:2:2, RGB565/555/444),YUV(4:2:2) and YCbCr(4:2:2)output format
Support VGA, CIF and from CIF to 40 x 30 format; Vario Pixel method for sub-sampling
Auto Image Control: AEC, AGC, AWB, ABF, ABLC
Image Quality Control: Color saturation, hue, gamma, sharpness and anti-blooming
ISP includes noise reduction and defect correction
Support image scaling
Lens shading correction
Flicker 50/60Hz auto detection
Color saturation level auto adjust
Edge enhancement level auto adjust
De-noise level auto adjust
Voltage Range (V): 2.5~3
Color: Black
Material: Plastic, Metal
Dimensions (cm): 3.5 x 3.3 x 2.5
Weight (kg): 0.014
