Wireless N PCI Adapter TL-WN851ND allows you to connect a desktop computer to a wireless network and access high-speed Internet connection. Comply with IEEE 802.11n, they provide wireless speed up to 300Mbps, which is beneficial for the online gaming or even HD video streaming.
MIMO (multiple input, multiple output antennas) technology, it shows more excellent abilities of mitigating data loss over long distances and through obstacles in a small office or a large apartment, even in a steel-and-concrete building. Above all, you could easily pick up the wireless network during long-distance connection where legacy 11g products may not!
Clear Channel Assessment (CCA) automatically avoids channel conflicts using its clear channel selection feature and fully realizes the advantages of channel binding, greatly enhanced the wireless performance.
WPA/WPA2 encryption standards ensure your wireless connection is safe from intruders.
Either using the optimized user interface and setup wizard or the CD (included) setup wizard will allow you to get ‘online’ quickly and easily.
HARDWARE FEATURES | |
---|---|
Interface | 32-bit PCI |
Dimensions ( W x D x H ) | 5.2 x 4.8 x 0.9 in. (133 x 121 x 22mm) |
Antenna Type | Omni Directional, Detachable (RP-SMA) |
Antenna Gain | 2x2dBi |
WIRELESS FEATURES | |
---|---|
Wireless Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
Frequency | 2.400-2.4835GHz |
Signal Rate | 11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) |
Reception Sensitivity | 270M: -68dBm@10% PER 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER |
Transmit Power | <20dBm |
Wireless Modes | Ad-Hoc / Infrastructure mode |
Wireless Security | Support 64/128 bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
Modulation Technology | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM |
OTHERS | |
---|---|
Certification | CE, FCC, RoHS |

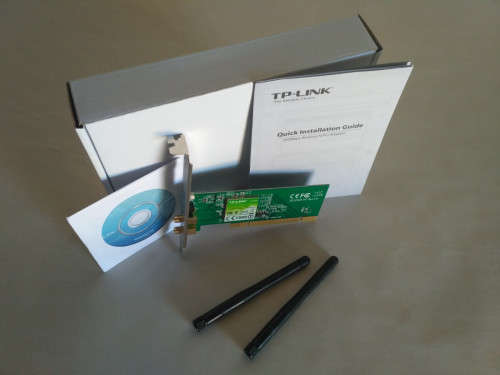

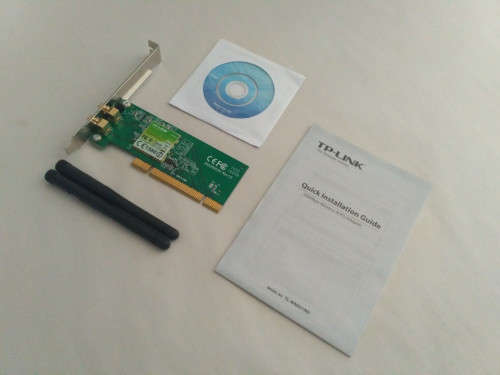

Package Contents | Wireless Adapter Resource CD Quick Installation Guide |
System Requirements | Windows 7(32/64bits), Windows Vista(32/64bits), Windows XP(32/64bits), Windows 2000 |
Environment | Operating Temperature: 0¿~40¿ (32¿~104¿) Storage Temperature: -40¿~70¿ (-40¿~158¿) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
