300mW GREEN LASER POINTER

300mW GREEN LASER POINTER

Pump Power: 2.5W
Wavelength (nm):532nm
Output power:300(mW)
ransverse mode:TEMoo
Operating mod:CW
Beam divergence (mrad):1.0-2.0 mrad
Power Stabillity(RMS):15%
Dimension (mm):(φ38+φ28)×198
Laser power supply:1×3.6V 18650 Battery
Lifetime(Hour) >10000 hours

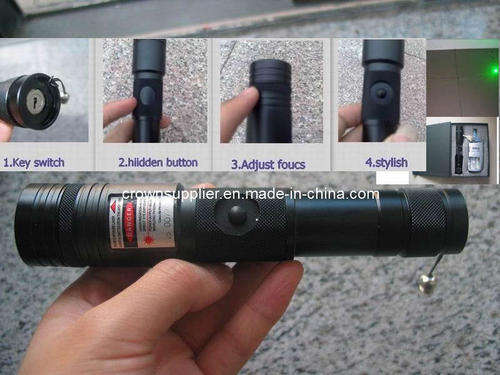

The Torch has an artistic and delicate appearance. The cabinet dimension is fit for holding in hand comfortably. The Torch is colored with an anode-oxidized technique in different colors, such as black and green ,etc. It is abrasion resistant ，never fading in color.
The core of the Laser lies in the entire solid-semiconductor assembly, which is researched and developed all by our company. It is coupled with discrete crystals and it has a plane-concave framework. The Assembly has a high quality and long life-span.
Advanced IC chips are applied on the power source, so it has a high efficiency and provide low heat. Besides it has a broad tension, which insures a constant current without decreasing the power of the beam when the voltage ranges from 2.9 V to 4.2 V，extending the durability of the battery effectively. The LD pedestal is measured accurately with the thermal resistor. It can switch off the power automatically once the temperature limit is exceeded, and thus the laser can be protected efficiently, so the life-span is prolonged.
Double protective measures in security:
1、Sliding anti-dazzling screen is used in the front aperture. Shutting off the aperture will prevent the beam leaking out if the operator slips in contacting the switch when it is laid aside temporarily. Meanwhile, the screen will also prevent the dust getting in.
2、A lock of superior quality is fitted on the bottom lid, with the aim of storing the torch away over a long period of time. It is suggested that the key and the torch be set aside separately, for fear of accidents in case children play with the torch.
